16
MITER GAGE HOLDER
DISCONNECT MACHINE FROM
POWER SOURCE.

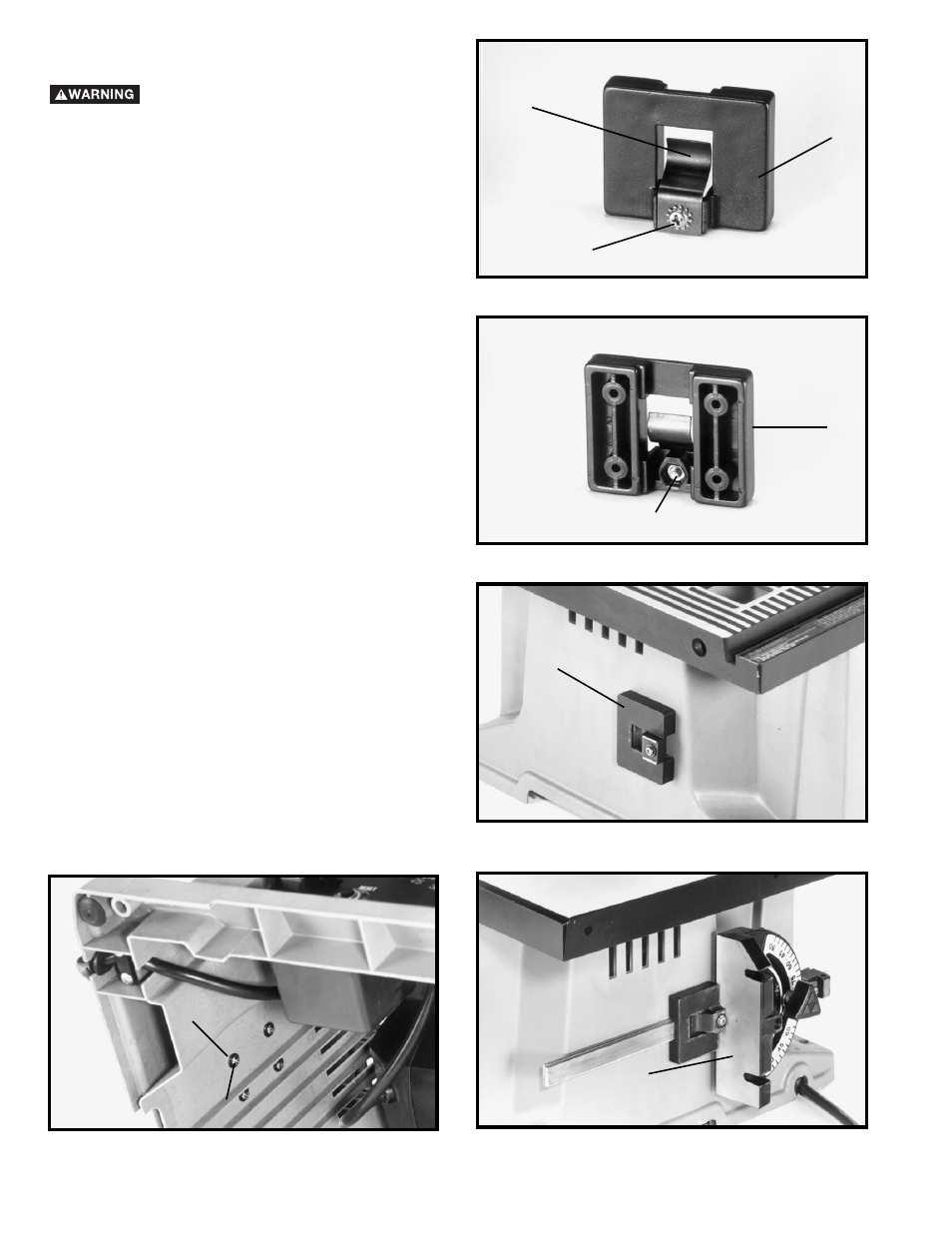

1. Assemble spring clip (E) Fig. 26, to the miter gage
holder (A) as shown using a M4x.7x10mm pan head
screw (F), 3/16" lockwasher and M4x.7 hex nut. NOTE:
Hex nut (G) Fig. 27, will fit into the recess at the back of
the miter gage holder (A) to keep spring clip (E) Fig. 26,
secured to the miter gage holder.
2. Assemble the miter gage holder (A) Fig. 28, to the left
side of the saw cabinet using the four M4.2x10mm pan
head screws (B) Fig. 29, and 3/16" washers (C) from
inside saw cabinet.
3. Fig. 30, illustrates the miter gage (D) inserted into the
miter gage holder when not in use.
Fig. 29
Fig. 26
Fig. 27
Fig. 28
Fig. 30
E
A
F
A
G
A
C
B
D
