ASSEMBLING BLADE
RAISING AND LOWERING
HANDWHEEL

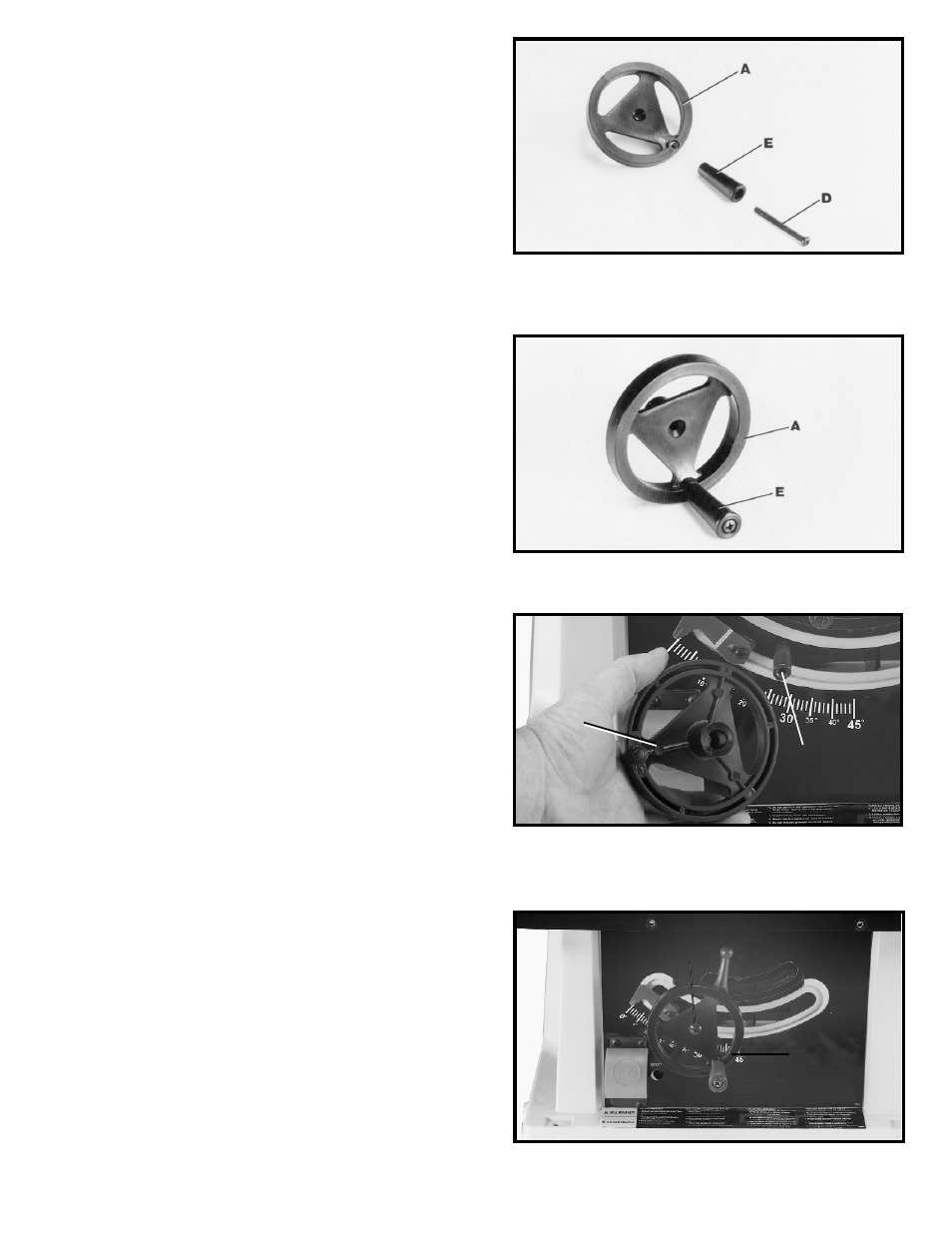

1. Insert M6x1x55mm cheese head screw (14) Fig. 3,
through handle (E) Fig. 5 and assemble handle (E) to
handwheel (A) by threading screw (D) Fig. 5 clockwise
into handwheel.
2. Fig. 6, illustrates the handle (E) assembled to
handwheel (A).
3. Assemble handwheel (A) Fig. 7, to shaft (B) making
sure the flat on inside of handwheel lines up with flat on
shaft.
4. Fasten handwheel (A) Fig. 8, to shaft (B) Fig. 7, using
a M6x1x12mm flat head screw (C) Fig. 8.
Fig. 5
Fig. 6
Fig. 7
Fig. 8
A
B
A
C
