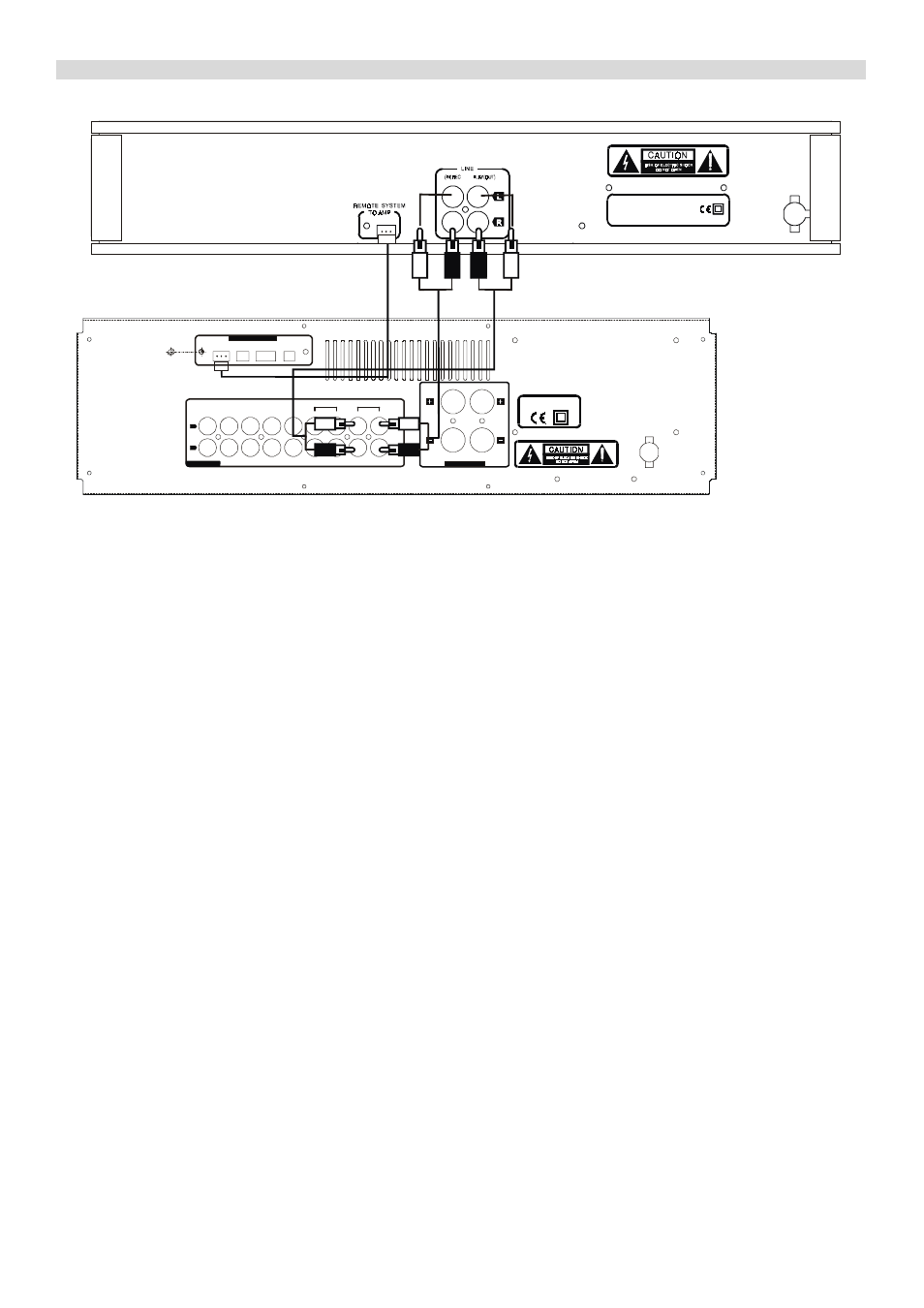

CONNECTIONS
E Q TAP E TU NE R
P H ON O C D TU NE R P LAY R E C
TAP E
P LAY R E C
E Q
C D
L
R
RE MOT E S YST EM
_
A U D I O
L
RIGHT LEFT
_
AV1 AV2
L
R
INTEGRATED CIRCUIT
AC 220V - 230V ~50Hz
S P E A K E R S6 ~ 8 Ω
GN D
EQ
EQUALIZER
INTEGRATED CIRCUIT
AC 220-230V~50Hz
POWER CONSUMPTION: 10W
Connection Precautions
When connecting, either disconnect the power plug from the power outlet or turn off the unit’s power using the
POWER switch.
Before connecting, read through the Operation Instructions of the other audio components which will be connected to
this unit.
Check the left and right channels and connect properly (L to L and R to R).
Insert the plugs securely. Improper connection can lead to the generation of noise.
