42
10 3
16
9
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
1 59192 Cap Valve Tire
2 65139 Stem Valve
3 170455 Tire F T 15 X 6 0 - 6 Service
4 59904 Tube Front (Service Item Only)
5 106732X421 Rim Asm 6"front Service
6 278H Fitting Grease (Front Wheel Only)
7 9040H Bearing Flange (Front Wheel Only)
8 106108X421 Rim Asm 8"rear Service
9 170456 Tire R T 20x10 -8 C Service
10 7152J Tube Rear (Service Item Only)
11 104757X428 Cap Axle Blk 1 50 X 1 00
- - 144334 Sealant, Tire ( 10 oz. Tube)
8
14
5
1 164095 Decal Dash
2 176303 Decal Fender Auto
3 176273 Decal Hood LH
4 176274 Decal Side Panel
5 170852 Decal HP Engine
6 173587 Decal Reflector Rh
7 173589 Decal Reflector Lh
8 170563 Decal Warning Mower
9 172740 Decal Fender Logo
10 157140 Decal Fender Danger E/F
KEY PART
NO. NO. DESCRIPTION
1
6
2
1
5,8
4,10
3,9
11
7

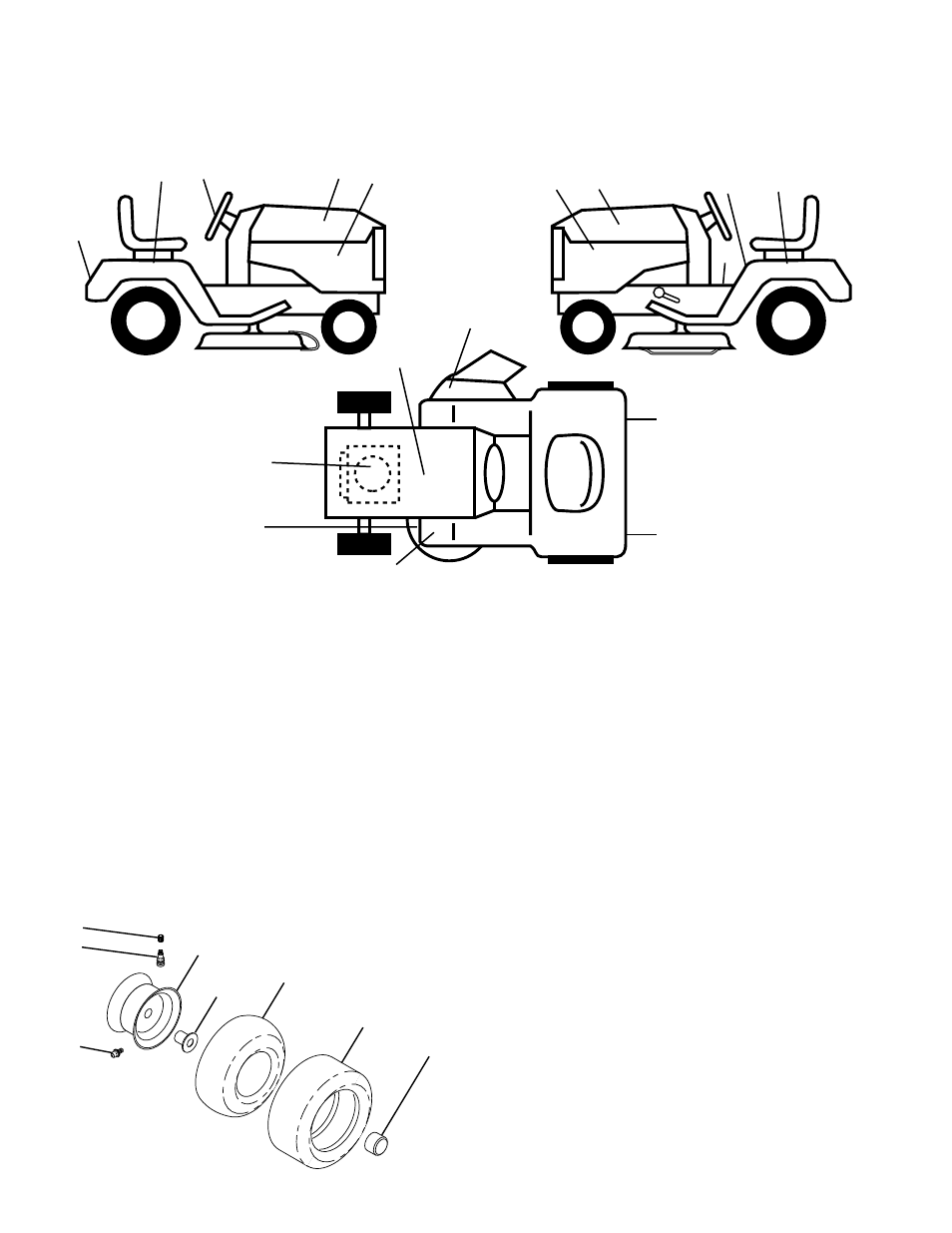

WHEELS & TIRES
11 172743 Decal Ins Strg Whl
14 160397 Decal V-Belt Schematic
16 176272 Decal Hood Rh
17 164657 Decal Clutch
20 145005 Decal Bat Dan/Psn
- - 169210 Decal By Pass Lt Hydro
- - 165800X428 Pad Footrest Lh
- - 138311 Decal Handle Lft Height Adjust
- - 165799X428 Pad Footrest Rh
- - 178249 Manual Owner's (English)
- - 178250 Manual Owner's (French)
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
2
2
11
4
20
REPAIR PARTS
TRACTOR - MODEL NUMBER DPR22H46STB
DECALS
4
17
6
7
