23

TRANSAXLE MOTION CONTROL LEVER
NEUTRAL ADJUSTMENT (See Fig. 31)

The motion control lever has been preset at the factory and
adjustment should not be necessary.

Loosen adjustment bolt in front of the right rear wheel,
and lightly tighten.

Start engine and move motion control lever until tractor
does not move forward or backward.

Hold motion control lever in that position and turn
engine off.

While holding motion control lever in place, loosen the
adjustment bolt.

Move motion control lever to the neutral (N) (lock gate)
position.

Tighten adjustment bolt securely.

NOTE: If additional clearance is needed to get to adjust-
ment bolt, move mower deck height to the lowest position.
After above adjustment is made, if the tractor still creeps
forward or backward while motion control lever is in neutral
position, follow these steps:

Loosen the adjustment bolt.

Move the motion control lever 1/4 to 1/2 inch in the
direction it is trying to creep.

Tighten adjustment bolt securely.

Start engine and test.

If tractor still creeps, repeat above steps until satisfied.

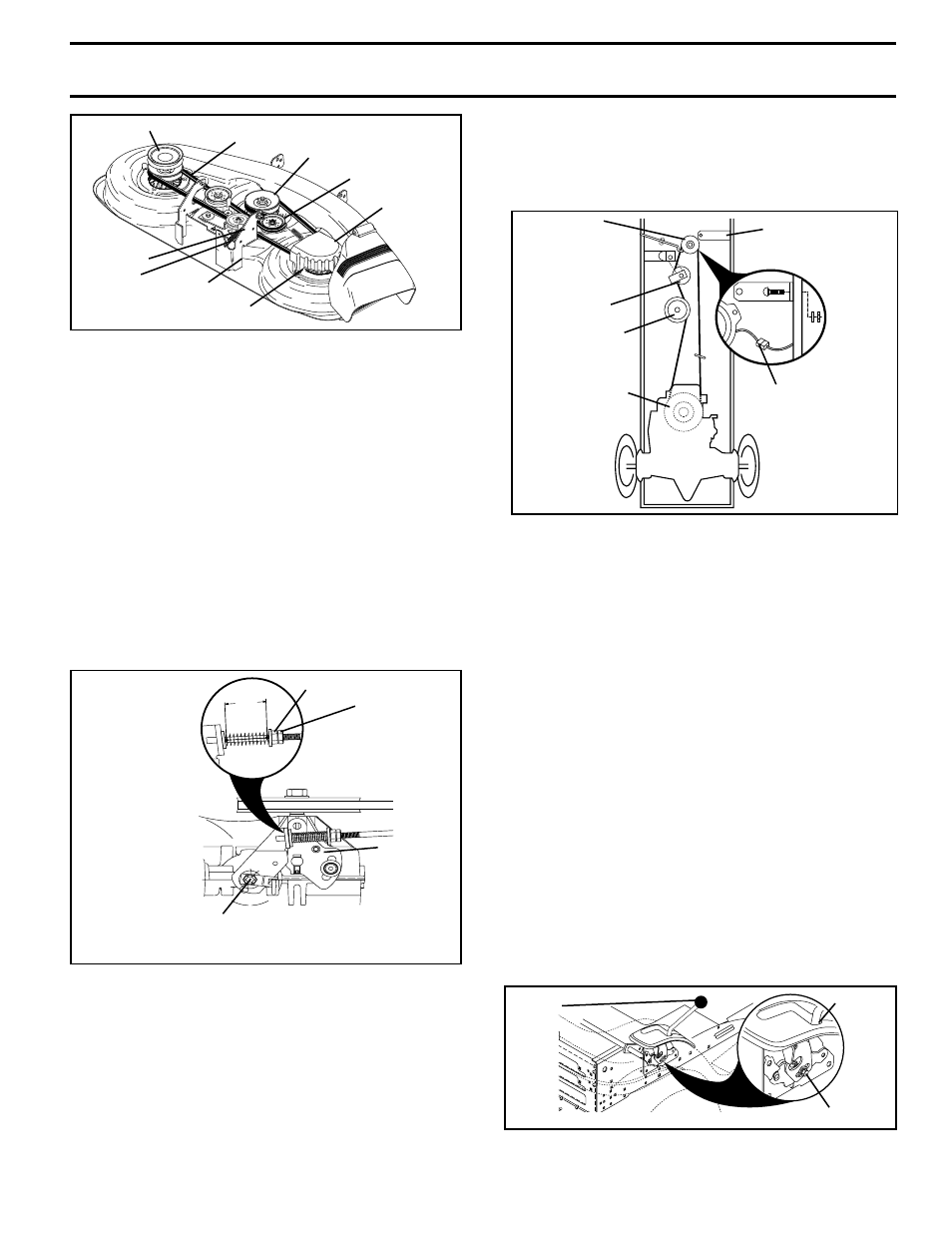

FIG. 31

ADJUSTMENT BOLT

NEUTRAL

LOCK
GATE

MOTION CONTROL
LEVER

FIG. 30

CLUTCH LOCATOR

CLUTCH
WIRE HARNESS

STATIONARY
IDLER

TRANSMISSION
INPUT PULLEY

CLUTCHING
IDLER

ELECTRIC
CLUTCH

SERVICE AND ADJUSTMENTS

FIG. 29

SECONDARY
IDLER ARM

L.H. MANDREL

MOWER BLADE DRIVE BELT

CENTER MANDREL

IDLER PULLEY

R.H.
MANDREL
COVER

SPRING

SWAY-BAR
BRACKET

SCREW

FIG. 28

TO ADJUST BRAKE (See Fig. 29)

Your tractor is equipped with an adjustable brake system
which is mounted on the side of the transaxle.

If tractor requires more than six (6) feet stopping distance at
high speed in highest gear on a level dry concrete or paved
surface, then brake must be adjusted.

Depress clutch/brake pedal and engage parking brake.

Measure distance between brake operating arm and nut
“A” on brake rod.

If distance is other than 1-9/16", loosen jam nut and turn
nut “A” until distance becomes 1-9/16". Retighten jam
nut against nut “A”.

Road test tractor for proper stopping distance as stated
above. Readjust if necessary. If stopping distance is
still greater than six (6) feet in highest gear, further
maintenance is necessary. Contact your nearest au-
thorized service center/department.

1-9/16"

WITH PARKING

BRAKE

“ENGAGED”

JAM NUT

DO NOT TOUCH THIS NUT. IF FURTHER BRAKE ADJUST-
MENT IS NECESSARY CONTACT YOUR NEAREST AUTHO-
RIZED SERVICE CENTER/DEPARTMENT

OPERATING
ARM

NUT
“A”

TO REPLACE MOTION DRIVE BELT
(See Fig. 30)

Park the tractor on level surface. Engage parking brake. For
assistance, there is a belt installation guide decal on bottom
side of left footrest.

Remove mower (See “TO REMOVE MOWER” in this
section of this manual.)

Disconnect clutch wire harness.

Remove clutch locator.

Remove belt from stationary idler and clutching idler.

Pull belt slack toward rear of tractor. Carefully remove
belt upwards from transmission input pulley and over
cooling fan blades.

Pull belt toward front of tractor and remove downwards
from around electric clutch.

Install new belt by reversing above procedure.
