17

3. Installation Procedures

3.2 Assembly and Connections

3.2.1 Installing the handwriting device (PDK-50HW3)

Notes:

¶ Always install the plasma display on a mobile cart before installing scan device.
¶ After installing scan device, never attempt to lift the plasma display to install on a mobile cart.
¶ If the need arises to move scan device after it is installed on a mobile cart, take care not to apply pressure on scan device when

moving. Always lift by the mobile cart when moving.

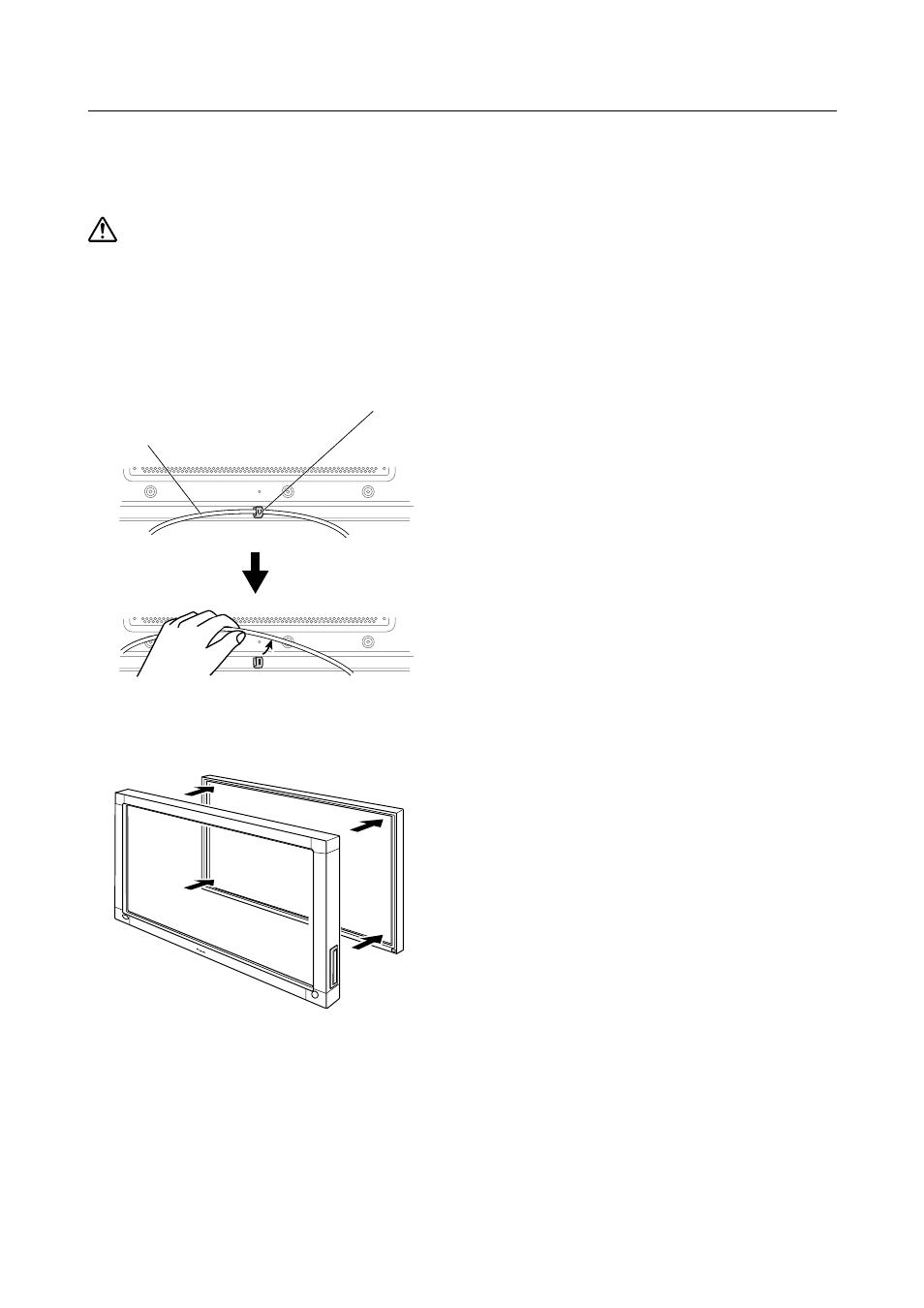

1. Release USB cable from cable clip.

USB cable

Cable clip

2. Place scan device over the front of the plasma display.
