Overview
Instructions for operations are generally described using the
remote control in these operating instructions.

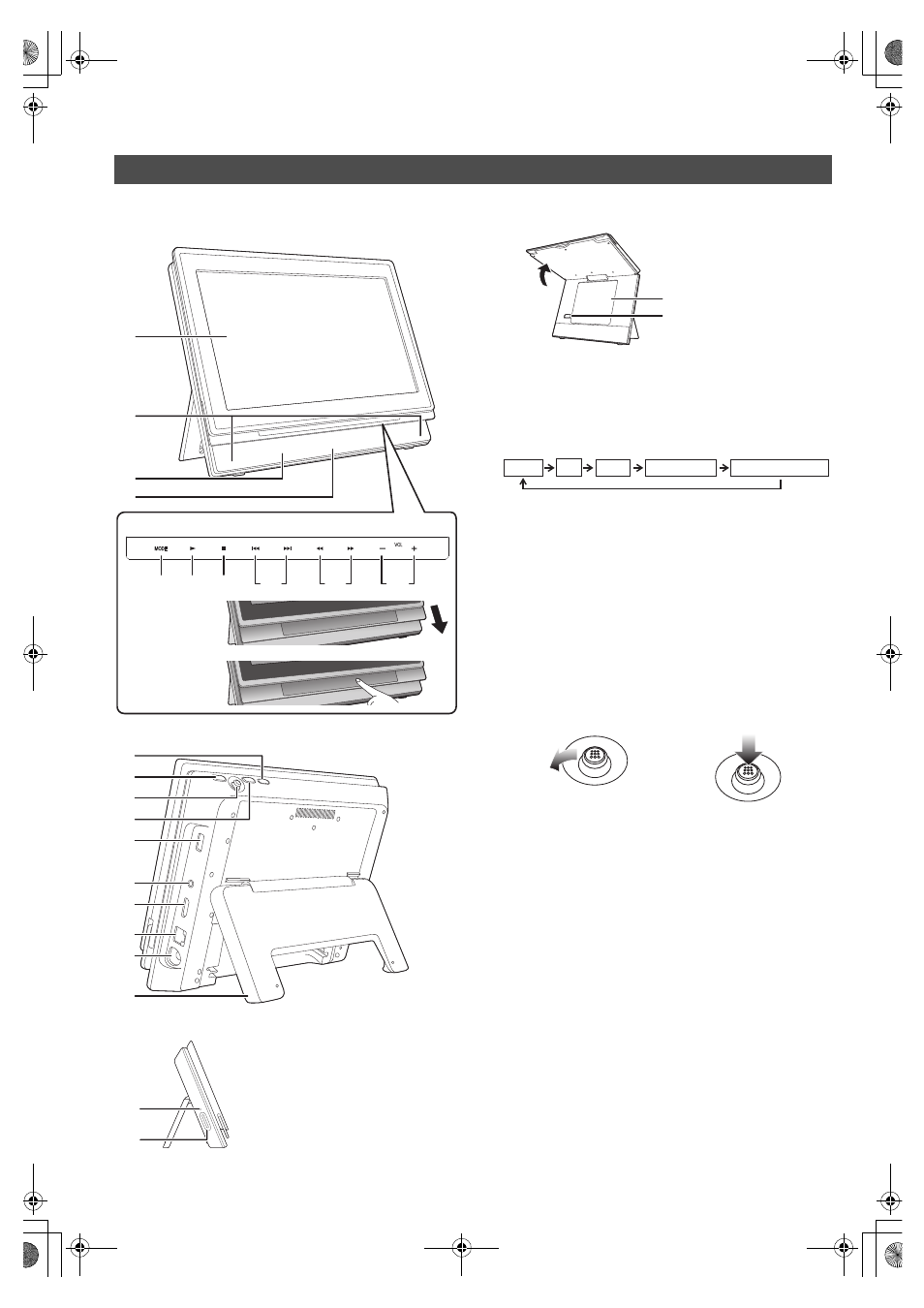

Front View
Rear View
Side View
1 LCD screen
2 Speaker
3 [CHARGE] indicator ( > 11)
While recharging the battery pack, this indicator lights up.
4 Remote control signal sensor ( > 9)
5 Switch the drive to playback
It will switch every time it is pressed.
6 Playback ( > 14)
7 Stop ( > 16)
8 Skip title numbers, etc. ( > 16)
9 Search/Slow-motion ( > 16)
10 Adjust the volume ( > 14)
11 Turn the unit on and off ( > 11)
12 Return to previous screen
13 Selection/OK
14 Show the sub menu
15 USB port
16 Headphone terminal [
Ë]
( ‡ 3.5 mm stereo mini jack)
17 HDMI AV OUT terminal ( > 28)
18 LAN terminal ( > 31)
19 DC IN terminal ( > 10)
20 Stand ( > 10)
21 SD card access indicator ( > 13)
22 SD card slot ( > 13)
The Unit
1
3
4
2
9 10 5 6 7 8
1 Pull out the
panel
2 Touch lightly
with a finger
Operation Panel
18
19
20
15
16
11
12
13
14
17
21
22
When the screen is opened
Disc lid
[OPEN]
To select:
Tilt up, down, left, or right
([
3, 4, 2, 1])
Example:
To select left item
To enter:
Press straight in
Example:
To enter the operation
DISC SD USB NETWORK PHOTO FRAME
