ADJUSTING THE PICTURE

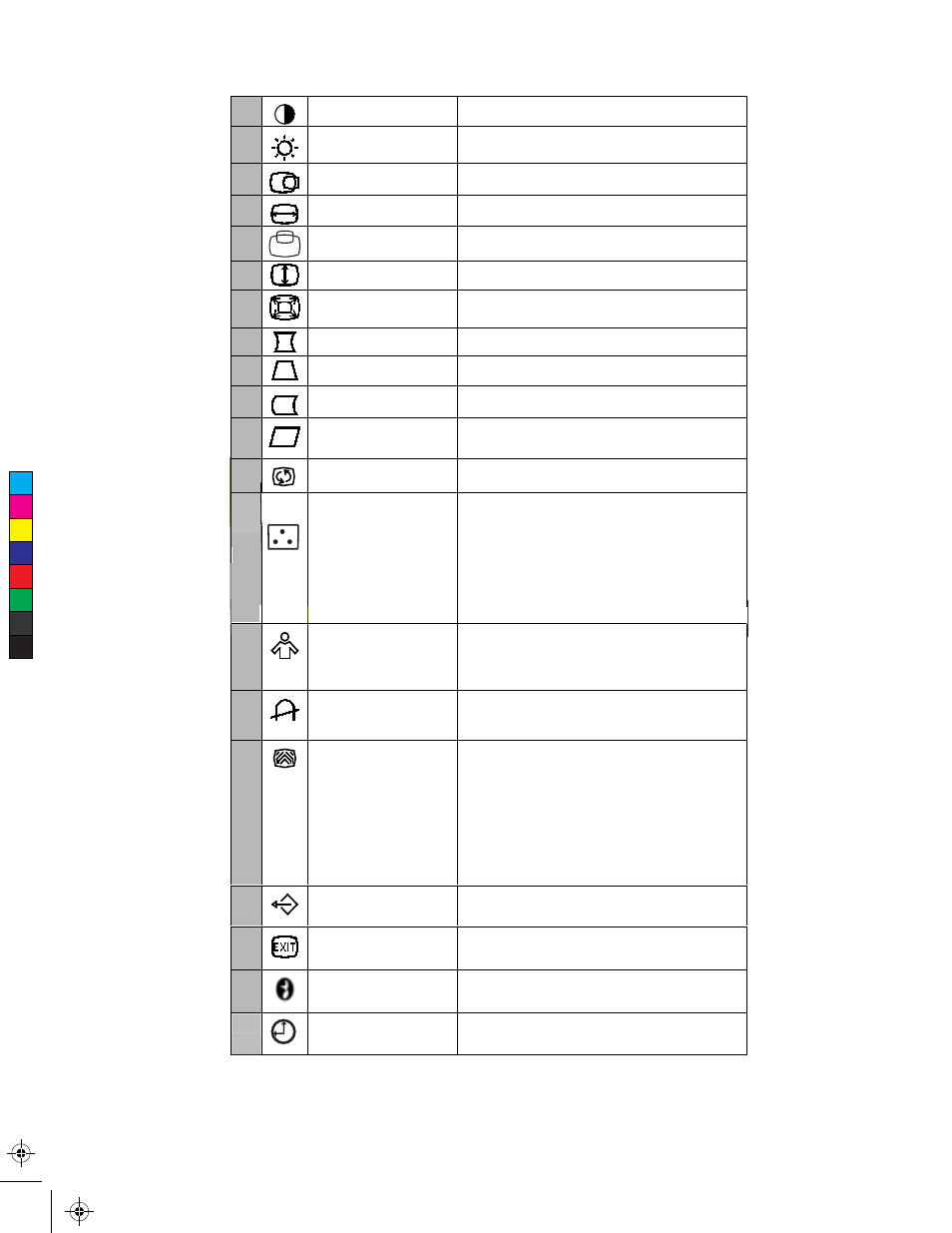

The description for function control ICONS
1. CONTRAST Adjust the picture contrast.
2. BRIGHTNESS Adjust the picture brightness.
3. H- CENTER Adjust the horizontal position of the picture.
4. H- SIZE Adjust the picture’s horizontal size.
5. V- CENTER Adjust the vertical position of the picture.
6. V- SIZE Adjust the picture’s vertical size.
7. ZOOM
Adjust the picture’s horizontal and vertical size
simultaneously.
8.
PINCUSHION Adjust the pincushion and barrel
9.
TRAPEZOID Adjust the picture’s trapezoid distortion.
10. PIN-BALANCE Adjust to compensate the pincushion unbalance.
11. PARALLELOGRAM Adjust the picture to be a rectangle.
12. ROTATION Adjust the picture tilt to horizontal position.
13.
14. USER COLOR
( Red / Blue )
If the 9300°K normal white or 6500°K warmer
white do not satisfy your desire, properly adjust R
. B GAIN controls to obtain your optimum
whiteness level.
15. DEGAUSS
If color impurity occurs when moving or
swiveling the monitor, press the MENU and
degauss to fix the picture condition.
16. MOIRE REDUCE
Moire is the result of interference between the
phosphor layout and the video signal. In some
cases, you may find the moire very noticeable.
Press the MENU to enter in the moire reduce
setting. Please adjust the level to the optimum
condition. Note: Too high of a setting will cause
the picture to shake.
17. RECALL Press RECALL to restore the monitor to factory
settings.
18. EXIT Close OSD window.
19. SELECT LANGUAGE Select the language you like.
11
20.
OSD display time Select the OSD display time: 5s,10s,or 15s .
6500°K/9300°K/SRGB
(COLOR
TEMPERATURE )
The color temperature for 6500°K is x=0.313,
y=0.329 and 9300°K is x=0.283, y=0.297,
SRGB is x=0.313,y=0.329,It presents three
different color sets on the screen. You can
select 9300°K or 6500°K or SRGB by pressing
the MENU.
adjusted in SRGB mode.
Brightness and contrast can't be
