NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE. 3

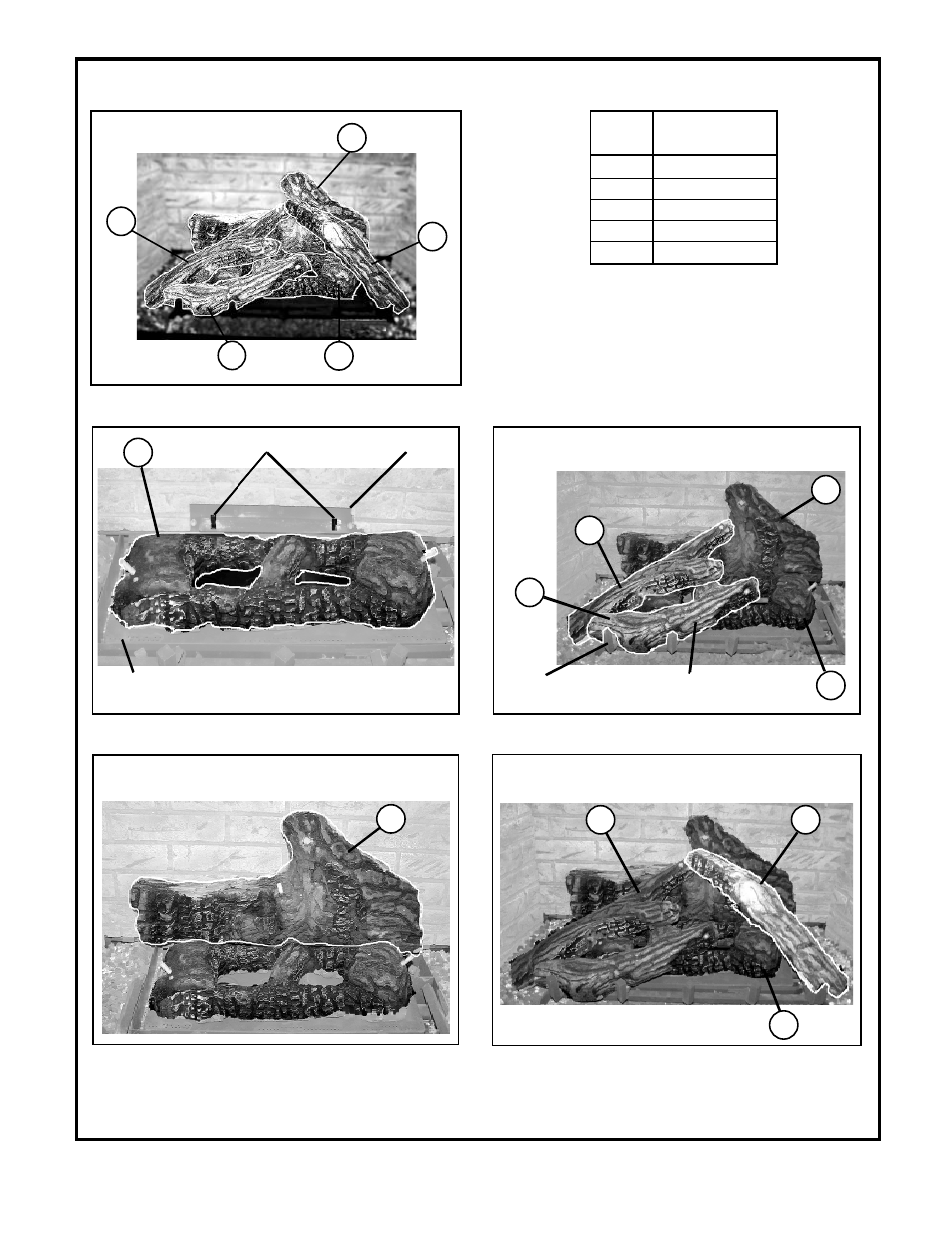

eLdV4035 Log PLacement
Figure 4
Log
number description
1 Log, Center
2 Log, Rear
3 Log, Front
4 Log, Left
5 Log, Right
catalog number for the entire
log set: H4657
4
2
3
5
align holes at the bottom of log () over the
pins on the burner
baffle Pins baffle
burner
Step
Step 2
Step 3
Step 4
align holes at the bottom of log (2) over the pins
of the back baffle.
2
align groove at the bottom of log (3)
over the grate as shown.
4
align the holes at the bottom of log (4)
over the pins on logs () and (2)
3
2
grate
assembly
align the groove at the bottom of log (5) over the grate as-
sembly and on the landing area of log (4) as shown.
4 5
