NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE. 2

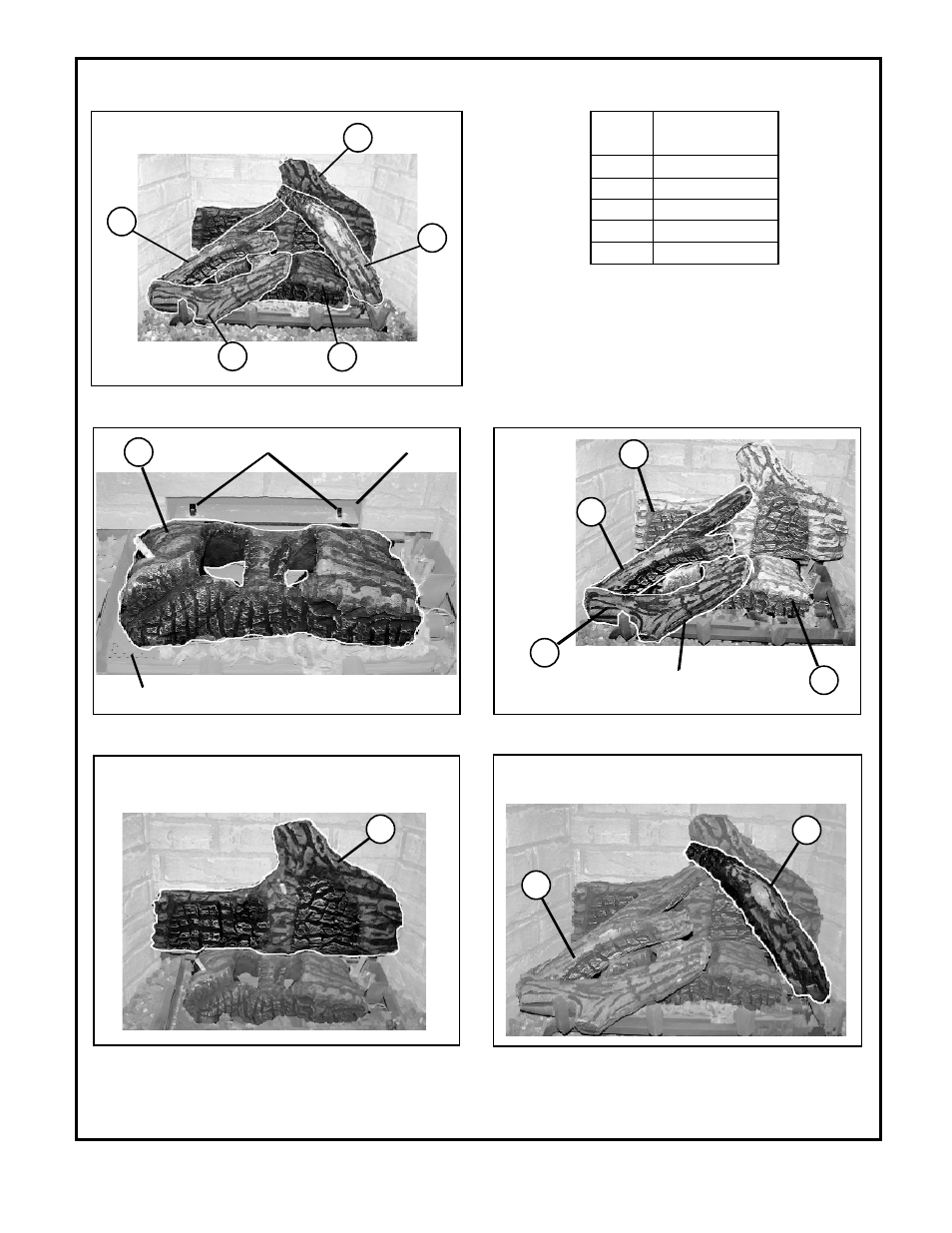

eLdV3530 Log PLacement
Figure 3
Log
number description
1 Log, Center
2 Log, Rear
3 Log, Front
4 Log, Left
5 Log, Right
catalog number for the entire
log set: H4656
align holes at the bottom of log () over the
pins on the burner
align holes at the bottom of log (2) over the pins
of the back baffle.
align the groove at the bottom of log (5) over the grate
and align the hole over the pin of log (4) as shown.
4
2
3
5
baffle Pins baffle
burner
2
align groove at the bottom of log (3)
over the grate as shown.
4
align the
holes at the
bottom of
log (4) over
the pins
on logs ()
and (2).
3
4
5
2
Step
Step 2
Step 3
Step 4
