Mounting the Liebert XDV
15

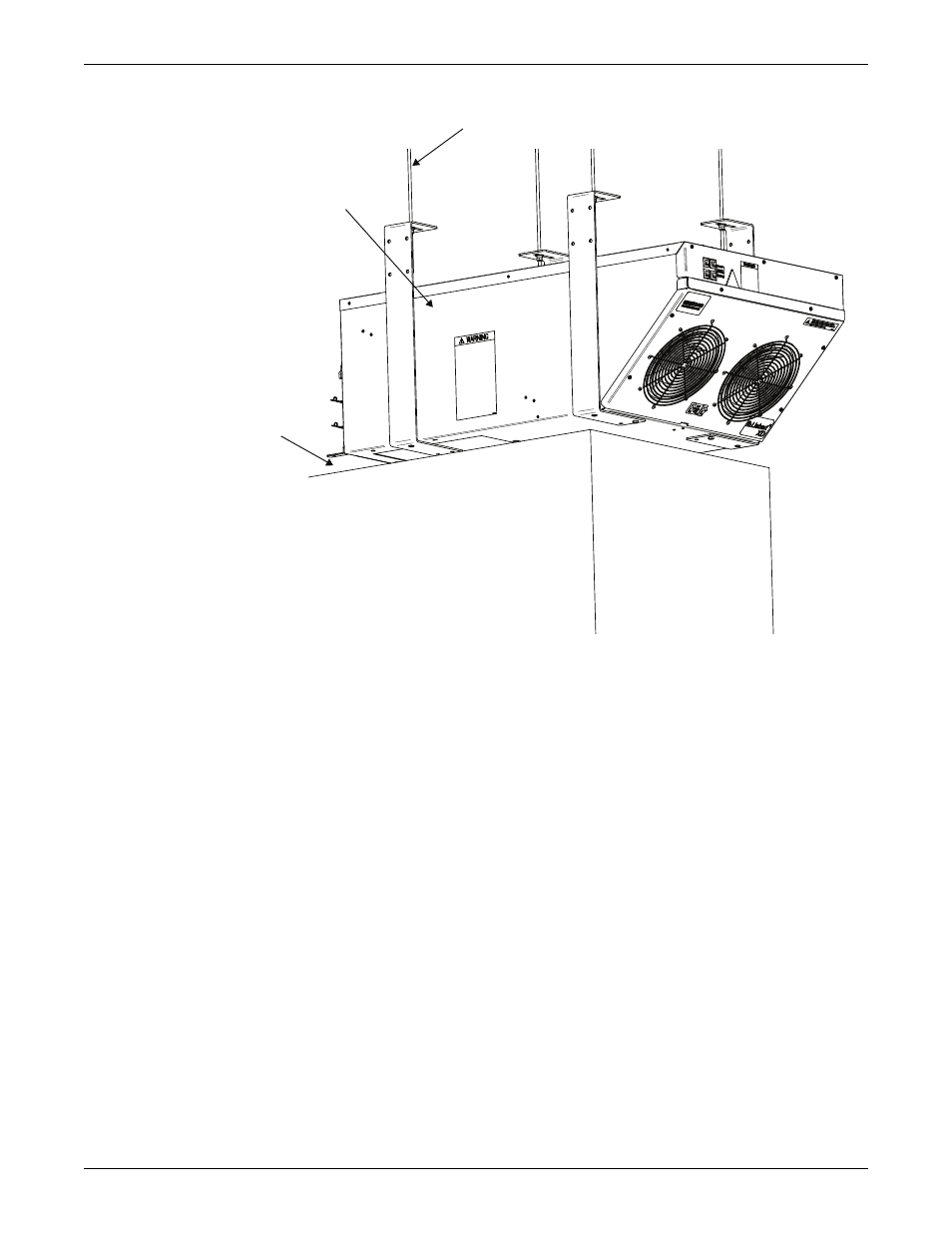

Figure 16 Suspending Liebert XDV from the overhead structure
3/8
"
-16 all-thread bolts,
field-supplied, typical
To prevent bypass air
from recirculating
through the Liebert XDV
without it passing through
the cabinet, this space
between the hanging
XDV and the cabinet
must be blocked.
Hanging Liebert XDV unit
