70 MPS Variable Multi Split System(50Hz, R410A)
14. Installation
• There should not be any heat source or steam near
the unit.
• There should not be any obstacles to prevent the air
circulation.
• There should be easy provision of condensate drain age.
• Taking into account the noise prevention criteria,
spot the installation location
• Do not install the unit near the door way.
• Keep proper distance from ceiling, fence floor, walls
& other obstacles as shown in figure.
Lower than 2.3m
More than 5 cm
Higher than eye-level
More than
5 cm
More than
5 cm
14.2 Select the best location
14.2.1 Indoor Unit
Install the air conditioner in the location that satisfies the following conditions.

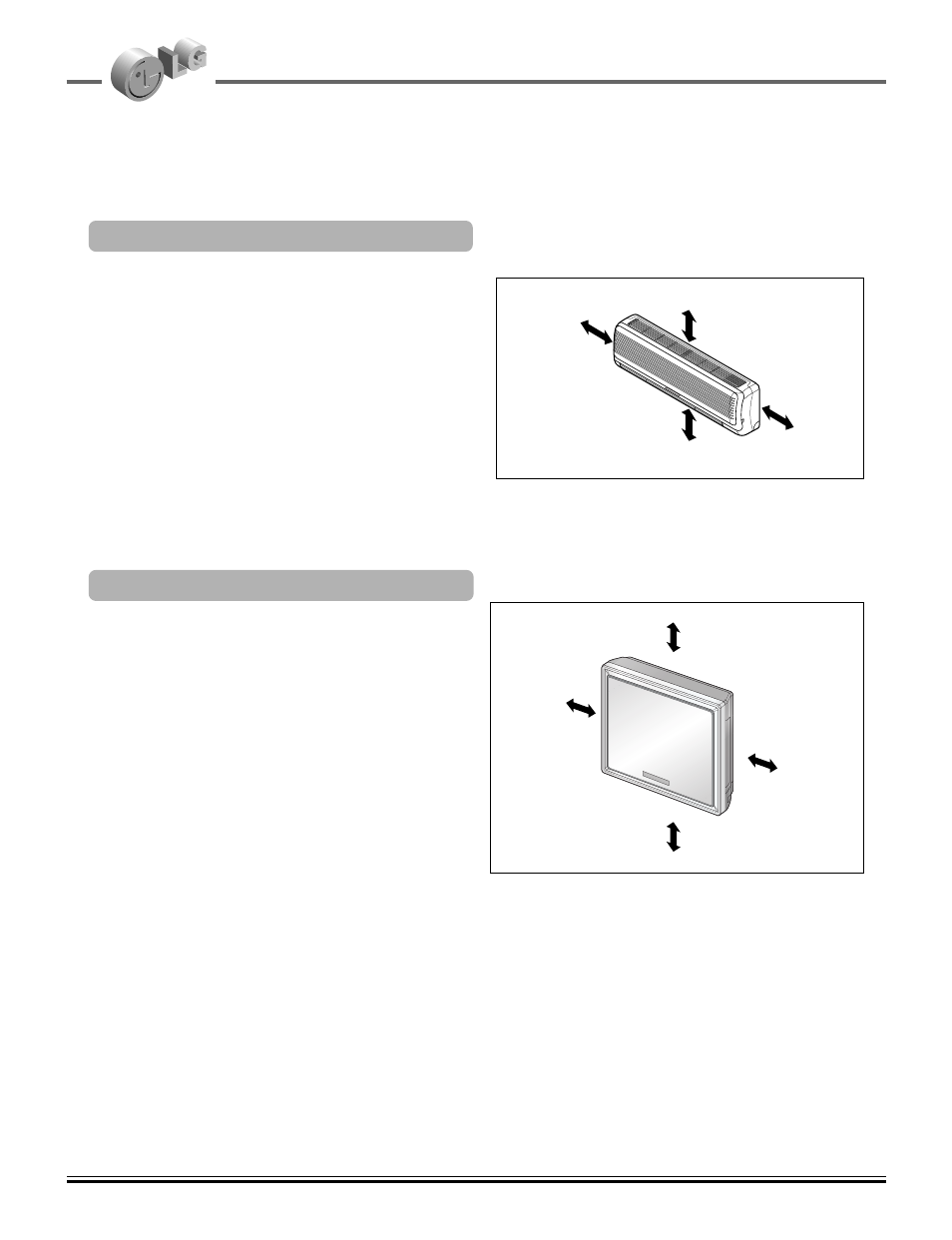

Wall Mounted Type
ART COOL Type
• Do not have any heat or steam near the unit.
• Select a place where there are no obstacles in front of the
unit.
• Make sure that condensation drainage can be conve-
niently routed away.
Do not install near a doorway.
• Ensure that the space around the left and right of the unit
is more than 50cm. The unit should be installed as high
on the wall as possible, allowing a minimum of 10cm from
ceiling.
• Use a stud finder to locate studs to prevent unnecessary
damage to the wall.
More than 10cm
More than 50cm
More than 2m
More than 50cm
