MPS Variable Multi Split System(50Hz, R410A)

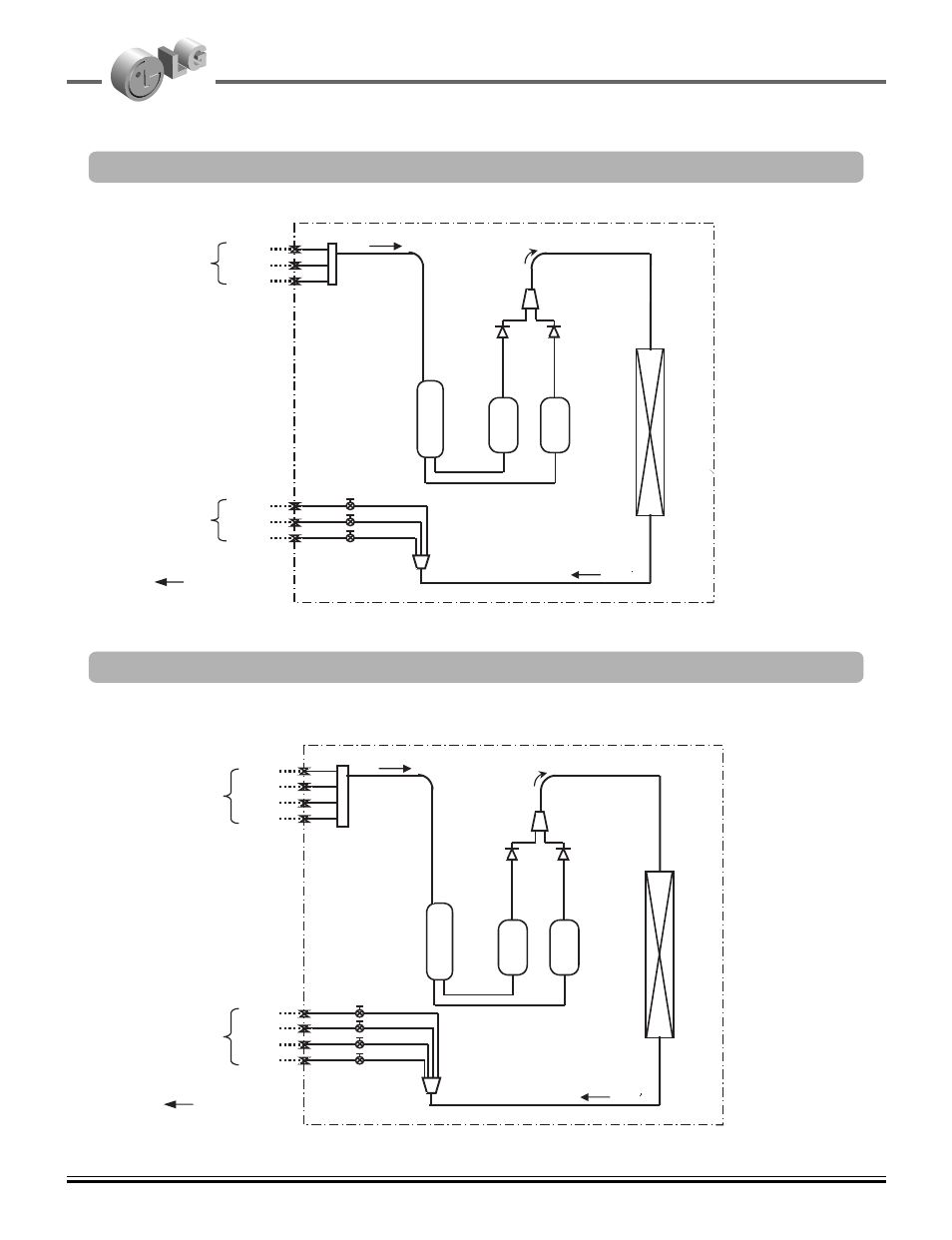

9. Piping Diagrams

LEV-A

LEV-B

LEV-C

Header

Room C

Room A

Field Piping
Liquid

Room B

Room C

Room A

Field Piping
Gas

Room B

Accumulator

Heat

Exchanger

Check
Valve(2)

Check
Valve(1)

OUTDOOR UNIT

Refrigerant Flow

Cooling

Compressor A

Compressor B

LEV-A

LEV-B

LEV-C

Header

Room C

Room A

Field Piping
Liquid

Room B

Room C

Room A

Field Piping
Gas

Room B

Accumulator

Heat

Exchanger

Check
Valve(2)

Check
Valve(1)

OUTDOOR UNIT

Refrigerant Flow

Cooling

Compressor A

Compressor B

Room D

LEV-D

Room D

A3UC216FA0

A4UC306FA0
