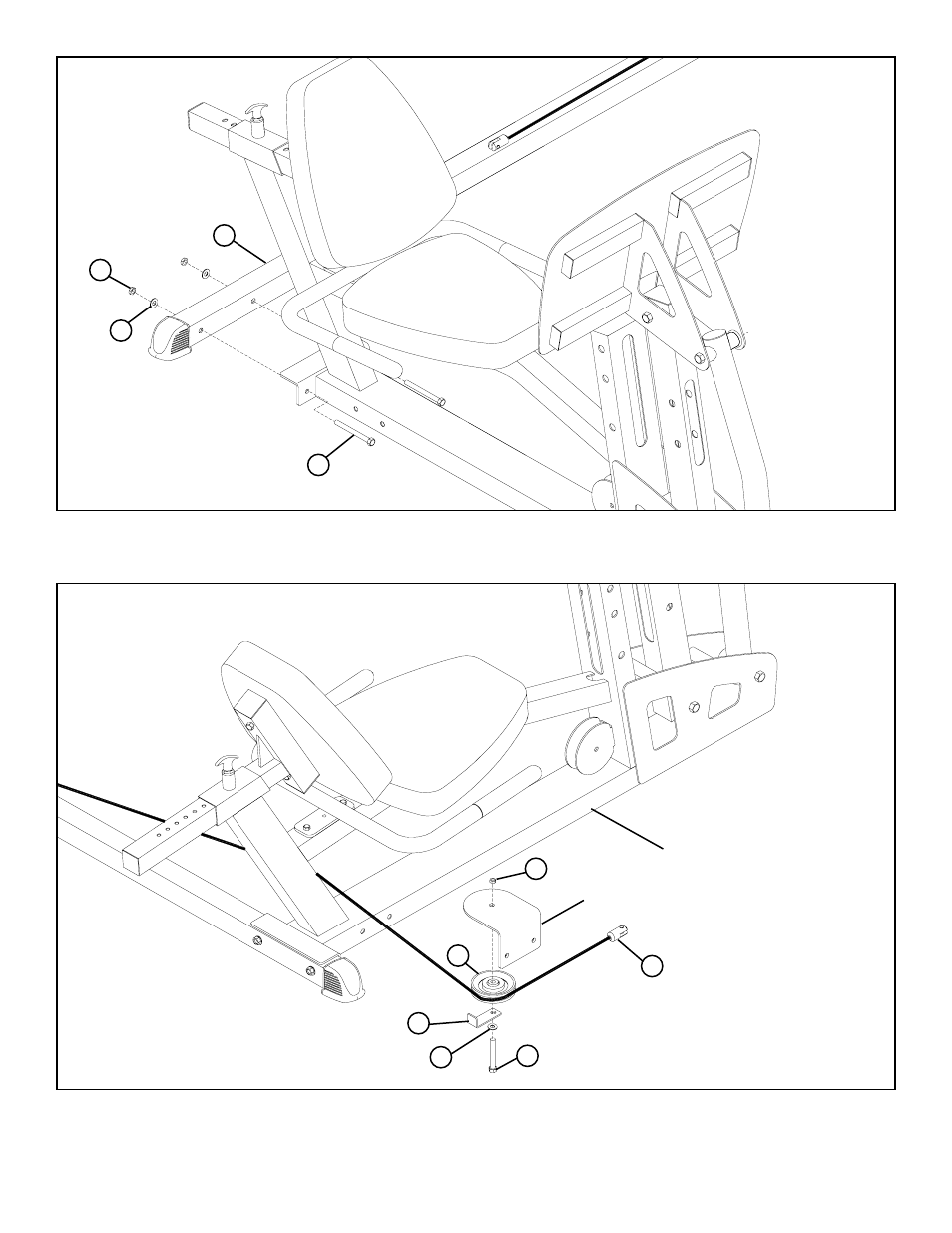

FIGURE 5
STEP 5:
8
• SECURELY attach the LP5 LEG PRESS to the FRONT LEG (1) using two 3/8” X 2-3/4” BOLTS (8), two 3/8” WASHERS (5),
and two 3/8” LOCK NUTS (6). See FIGURE 5.
1
6
5
8 3/8 X 2-3/4”
FIGURE 6
STEP 6:
• Carefully route the LEG PRESS CABLE (2) around one 3-1/2” PULLEY (3) and SECURELY assemble the 3-1/2” PULLEY (3) to
the BRACKET (from 100 LEG PRESS kit) using one 3/8 X 1-3/4” BOLT (7), one 3/8” WASHER (5), one CABLE CLIP (14) and
one 3/8” LOCK NUT (6) as shown in FIGURE 6. Make sure the CABLE is in the grooves of all the pulleys.
SEAT FRAME
6
5
2
3
7 3/8 X 1-3/4”
14
BRACKET
