Life Fitness GS1 - Manual (Page 10)

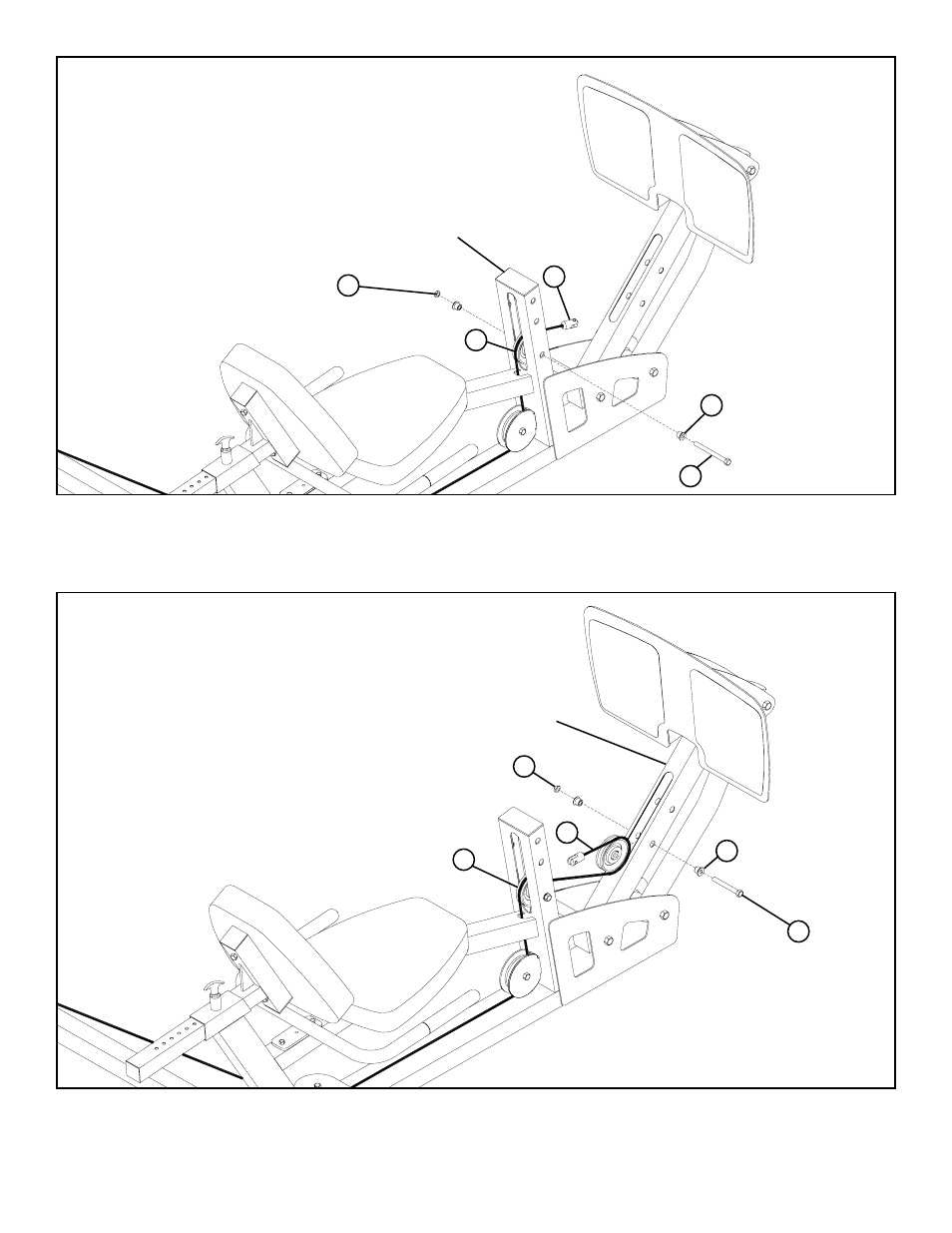

FIGURE 9
STEP 9:
• Carefully route the LEG PRESS CABLE (2) around one 3-1/2” PULLEY (3) and SECURELY assemble the 3-1/2” PULLEY (3) to
the SEAT FRAME using one 3/8 X 4-3/4” BOLT (10), two STEP SPACERS 1-19/32” (12) and one 3/8” LOCK NUT (6) as shown in
FIGURE 9. Make sure the CABLE is in the grooves of all the pulleys.
3/8 X 4-3/4” 10
3
2
6
12
MAIN ARM
FIGURE 10
STEP 10:
• Carefully route the LEG PRESS CABLE (2) around one 3-1/2” PULLEY (3) and SECURELY assemble the 3-1/2” PULLEY (3)
to the MAIN ARM using one 3/8 X 2-3/4” BOLT (8), two STEP SPACERS 19/32” (11) and one 3/8” LOCK NUT (6) as shown in
FIGURE 10. Make sure the CABLE is in the grooves of all the pulleys.
3/8 X 2-3/4” 8
3
2
6
11
3/8 LOCK NUT
10
SEAT FRAME
