A-8 INSTALLATION
LN-25™ PIPE
A-8
ELECTRODE CONNECTION
The LN-25™ PIPE (CCC) does not include the elec-
trode cable. The customer is to install an AWG 2/0 to
4/0 cable.

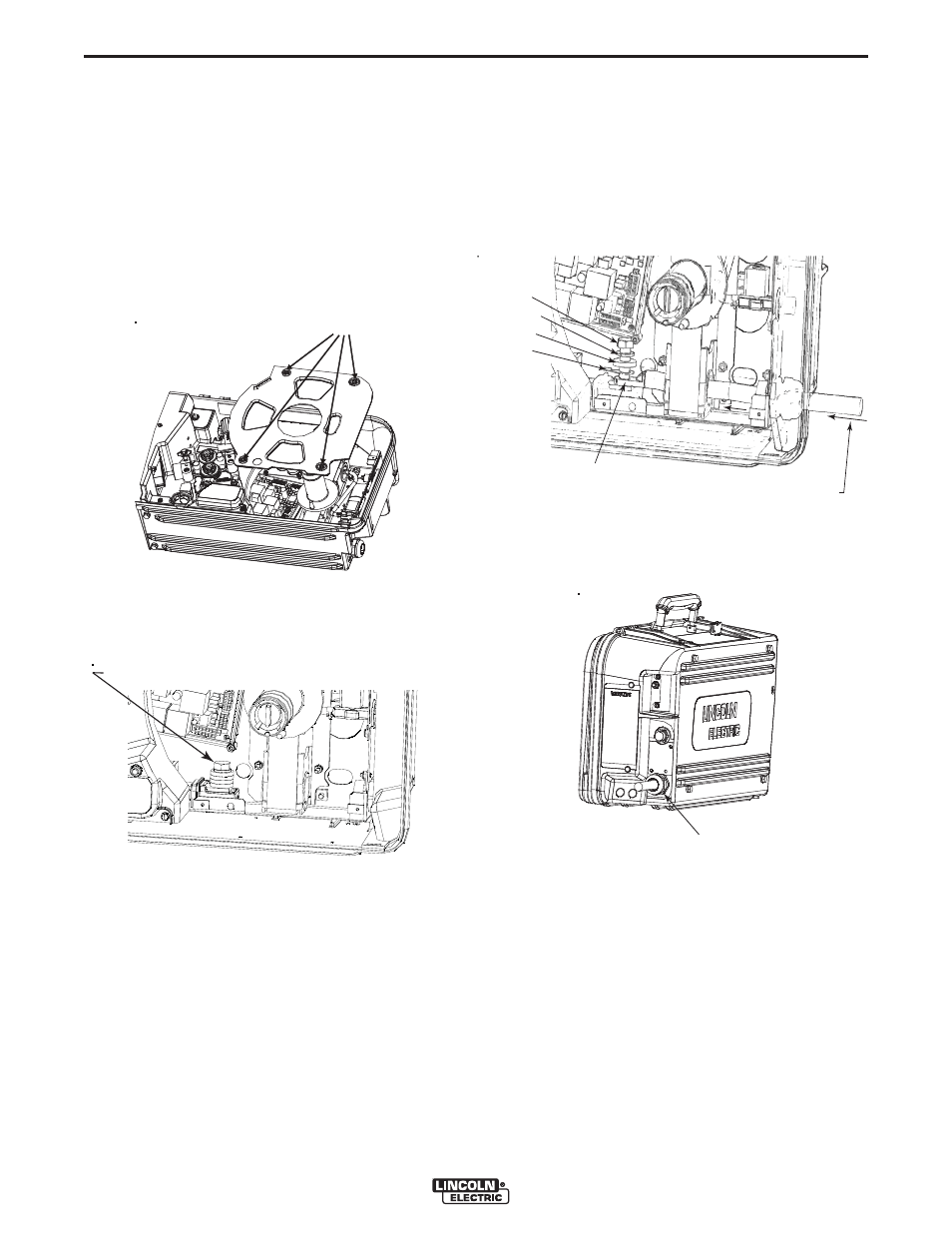

To install:
1. Turn off power at the welding power source.
2. With a 5/16” nut driver, remove the 4 screws hold-
ing the rear cover panel. Lift out the cover panel.
3. Using a 3/4” open end wrench, loosen the bolt for
the electrode lead connection.
4. Route the electrode lead through the feeder as
shown.
5. Assemble the bolt, leads and washers as shown.
Discard the extra washers.
6. Reassemble the rear cover panel and tighten the 4
screws.
7. Tighten the strain relief.
4 SCREWS 4 SCREWS
TIGHTEN HERE
TIGHTEN HERE
Use 3/4” open end wrench to loosen here. Use 3/4” open end wrench to loosen here.
Route the electrode through the opening this way. BOLT LOCK WASHER WASHER 67 LEAD ELECTRODE LEAD
Route the electrode through the opening this way.
BOLT
LOCK WASHER
WASHER
67 LEAD
ELECTRODE LEAD
