Maintaining Your Appliance 25
© Travis Industries 100-01162 4041105

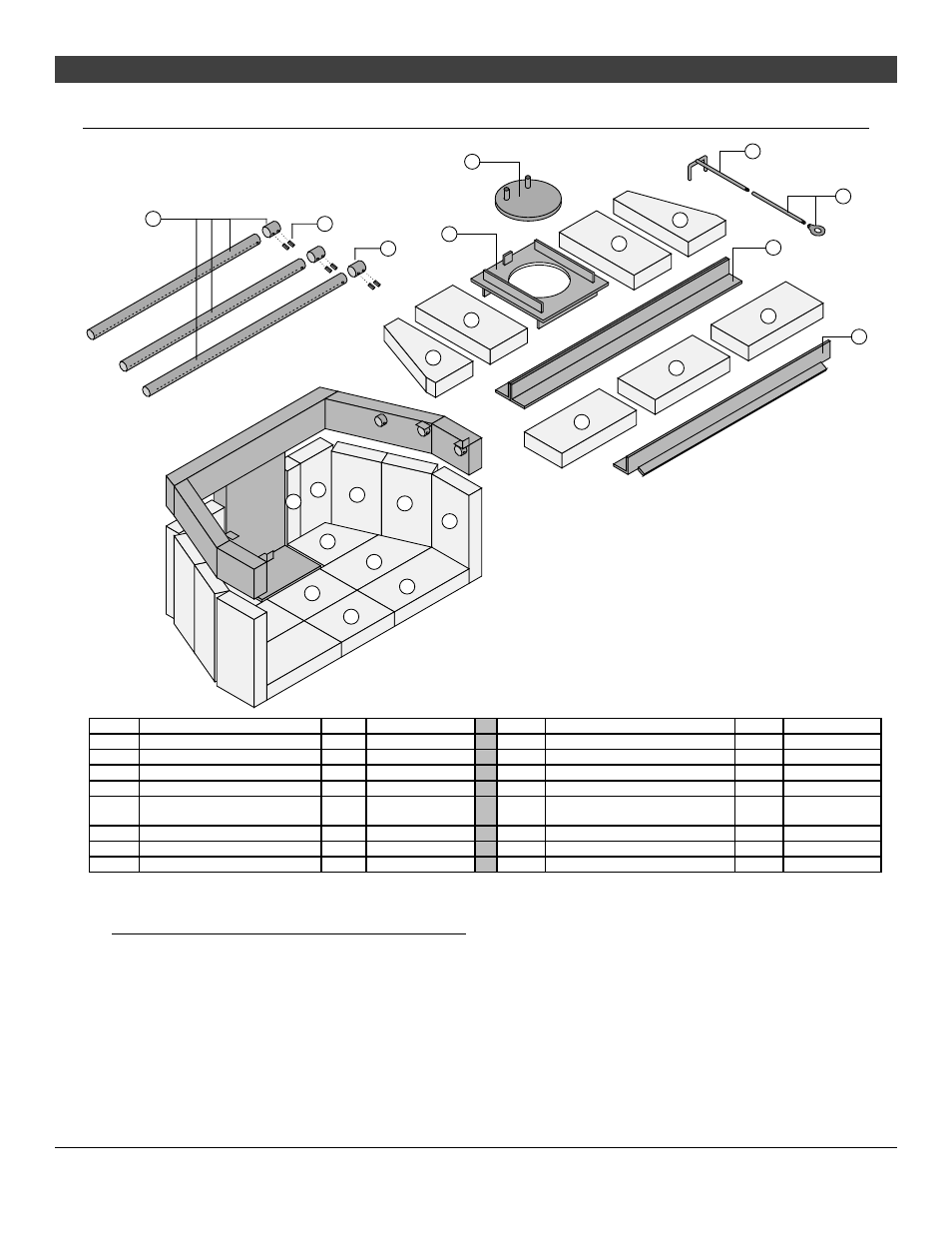

Firebox Parts
1
3
2
12
12
15
13
14
10
10
10
10
10
4
5
10
10
10
9
8
10
10
11
11
6
7
ID # Description Qty Part # ID # Description Qty Part #
1 Air Tubes & Sleeve 1 98900234 2 Air Tube Roll Pins 6 98900357
3 Air Tube Retainer Sleeve 3 100-11001 4 Baffle Support, Front "Y" 1 99900277
5 Baffle Support, Rear "T" 1 99900282 6 Damper Plate 1 98900320
7 Damper Slider 1 98900338 8 Damper Yoke 1 98900331
9 Damper Extension Rod with
Pull Ring 1 98900334 10 Brick - 9" x 4.5" un-cut 15 175-00001 (1)
98900102 (9)
11 Brick, Cut - 4.5 x 9 w notch 2 251-00024 12 Brick, Cut –4.5 x 6.25 2 251-00011
13 Brick, Cut – 8.9 x 4.5 w notch 2 251-00027 14 Brick, Cut - 6.8 x 4.5 w notch 2 251-00026
15 Brick, Cut – 9 x 1.5 2 251-00025
Floor and Side Firebrick Removal & Replacement
Do not pry firebrick - they chip and crack easily. Remove the floor firebricks first. The side firebrick
are removed later because they are pinned in place by the floor firebrick. Clean the firebox prior to
replacing the firebrick.
