Life Fitness Cable Motion 8289201 REV. B User Manual
Page 19
19

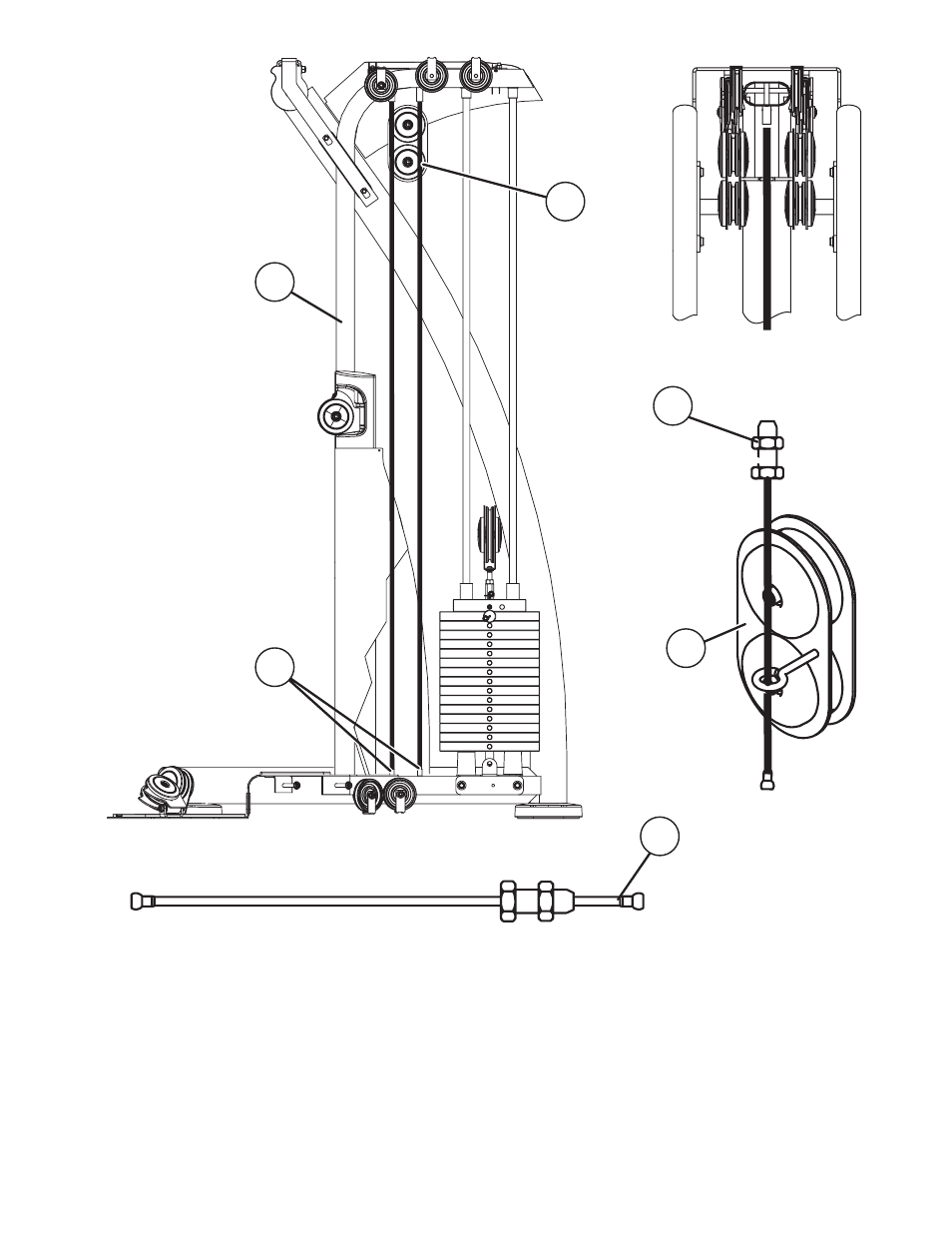

STEP 10:
Insert the ball end of one GUIDE CABLE (31) through the eye hook on one FLOATING PULLEYS (14). Insert and
hook the ball end of the cable into the SLOTTED BUSHING (N) located at the bottom of the frame located directly
below the FLOATING PULLEYS (14).
Screw the threaded end of the cable into the FRONT UPRIGHT (1) and loosely tighten the cable by screwing the
JAM NUT (M) to the top of the frame.
REPEAT THE ABOVE PROCESS FOR THE REMAINING GUIDE CABLE (31).
1
14
M
14
31
N
