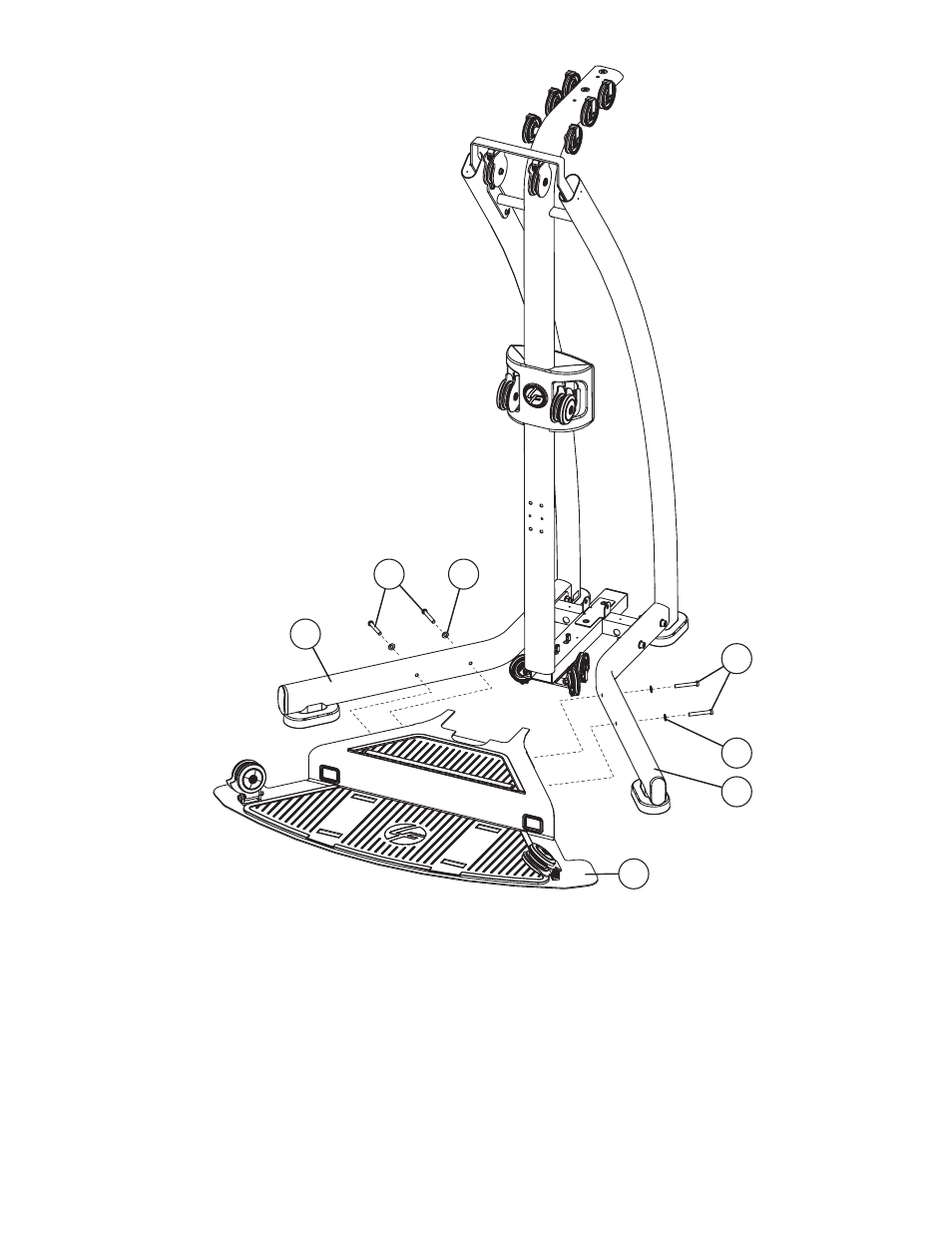

STEP 2:

‰ LOOSELY attach the FOOTPLATE (7) to the RIGHT BASE (6) and LEFT BASE (5) using four M10 x 70mm

SCREWS (41) and four FLAT 3/8” WASHERS (39).
