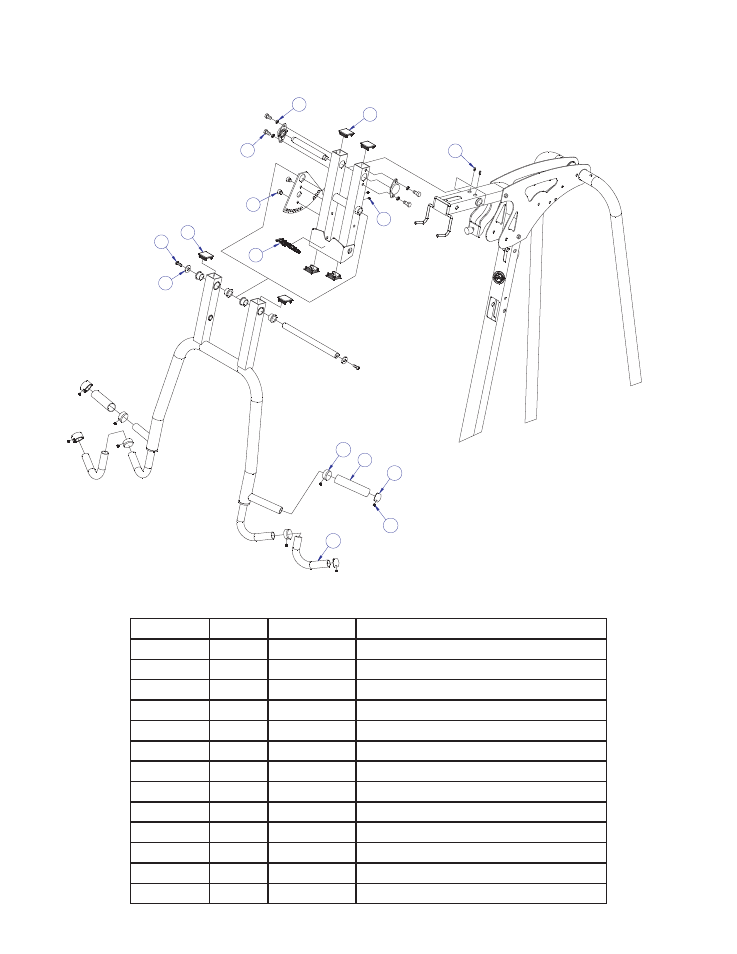

COMPONENT ASSEMBLY III ______________________________________
Page 7
G4-001 G4 HOME GYM
ITEM NO. QTY. PART NO. DESCRIPTION
1 6 8589701 END CAP, 2 SQ
2 1 8580601 LABEL, LF LOGO 6.63
3 4 3268901 WASHER, SPRING - 3/8
4 2 3269101 SCREW, FLAT HEAD ALLEN - 3/8 X 1L
5 4 3268601 SCREW, SET 5/16 - 18UNC X 1/4L
6 4 3102965 3/8-16 X 3/4 UNS HEX FHB G2 ZN
7 2 3202401 3/8-16 X 1 HXS BUT CS G8 BO
8 2 3228501 WASHER, FLAT 3/8 ID SAE BZ
9 2 8599201 HAND GRIP 5.12L
10 2 8599301 HAND GRIP 10.4L
11 4 8588501 COLLAR, SHAFT, AL 32.5 OD X 11.1H
12 16 3247701 M4 X 0.7 X 3 HZS NO CUP ST BO
13 4 8587901 CAP AL 38.1 OD X 32.3 ID X 22.2H
