See Figure F.24 for steps 14 - 16.
14. With the 9/16" wrench, remove the four bolts and
lock washers holding the case front to the welder
frame. There are two bolts on each side.
15. With the 1/2" wrench, remove the two bolts and
nuts and washers from the fuel tank rails - one on
each side.
16. Carefully clear and disconnect any necessary
remaining leads and lift up and set the front panel
assembly to the left side of the machine. Make
sure all leads are clear.
TROUBLESHOOTING & REPAIR
F-50 F-50
Classic III and IIID Retur
n to Section TOC
Retur
n to Section TOC
Retur
n to Section TOC
Retur
n to Section TOC
Retur
n to Master TOC
Retur
n to Master TOC
Retur
n to Master TOC
Retur
n to Master TOC
GENERATOR FRAME REMOVAL
AND REPLACEMENT (continued)

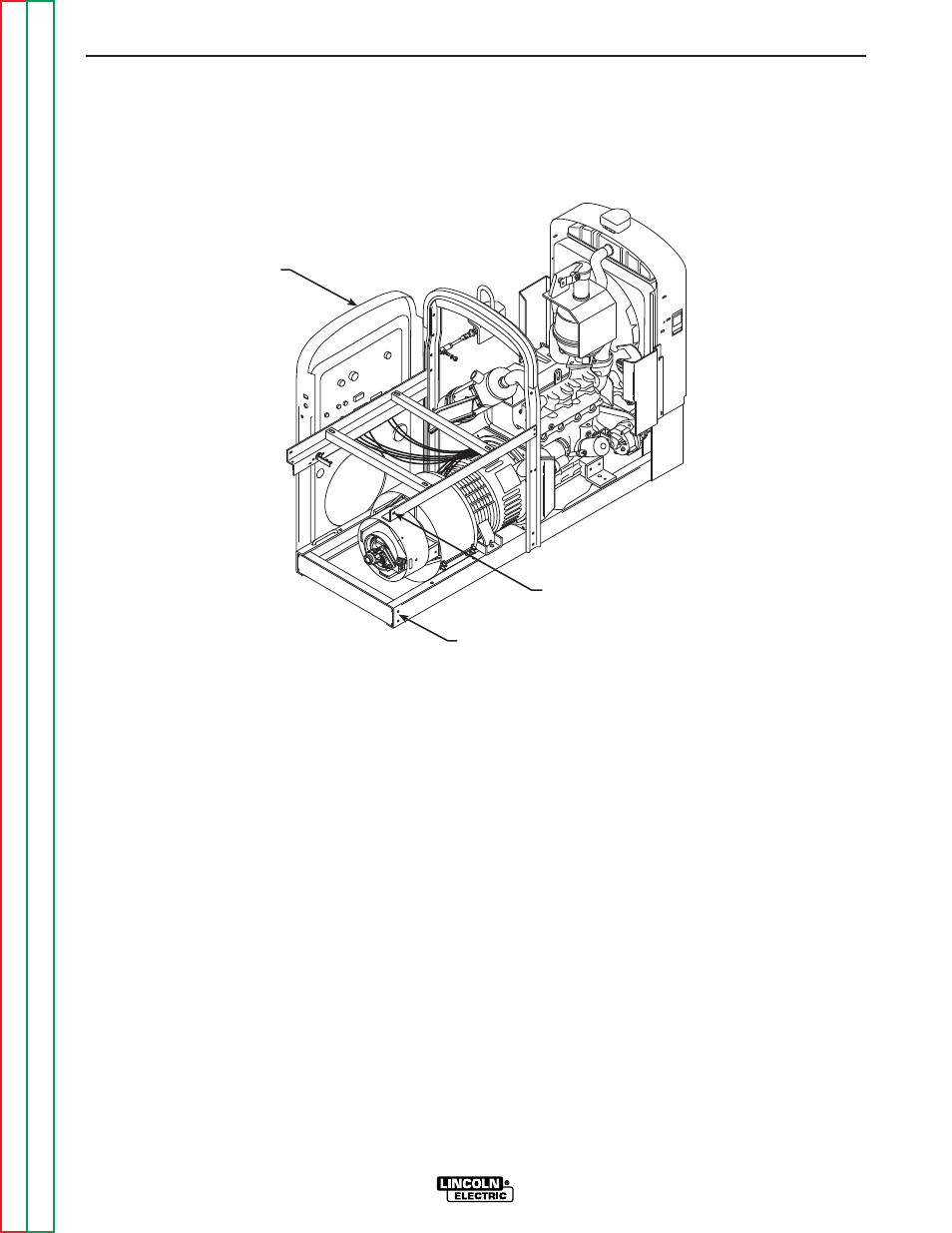

FIGURE F.24 – CASE FRONT REMOVAL
STEP #15
STEP #14
STEP #16
