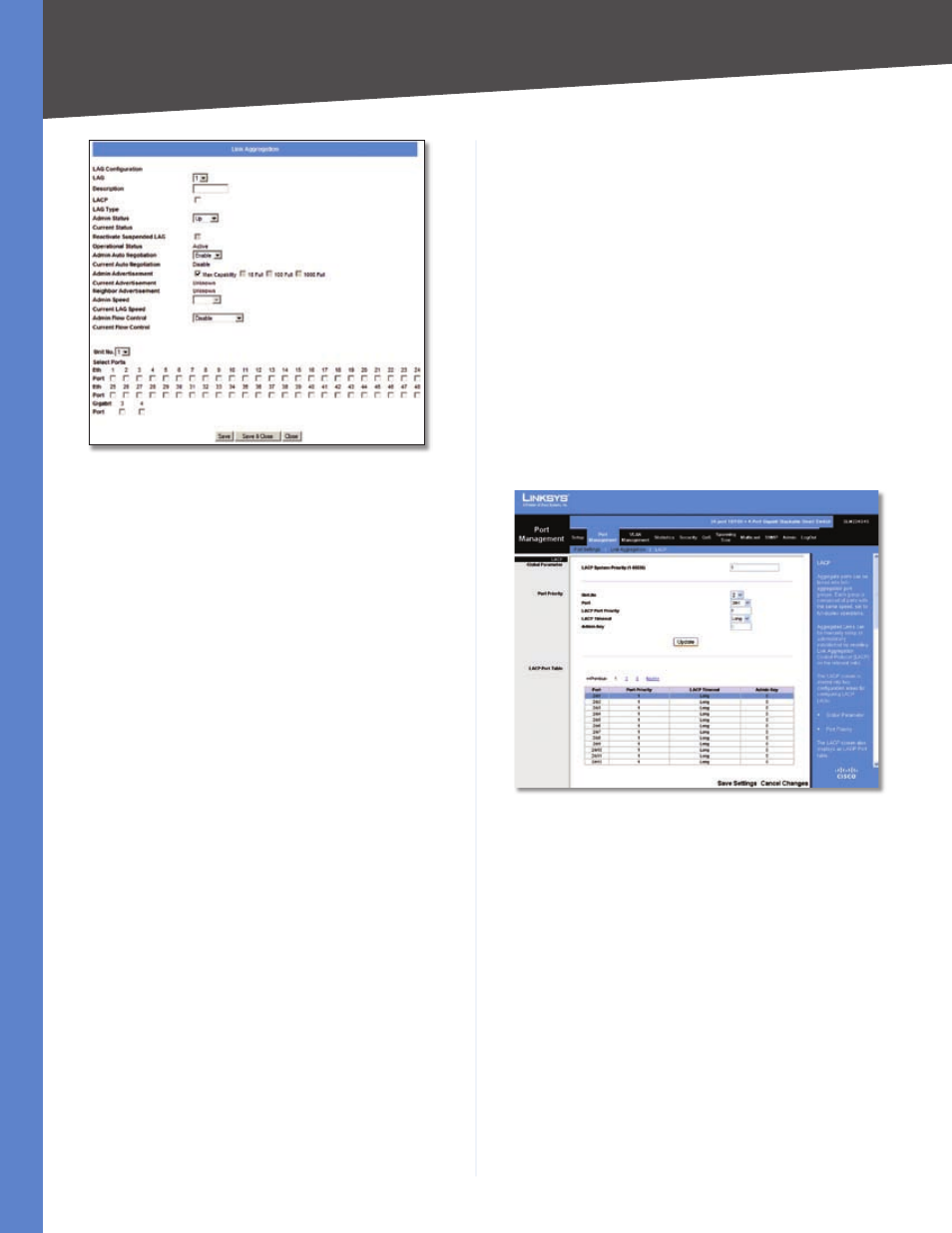

Port Management > Link Aggregation > Detail
LAG The LAG number (1-8). To display or edit another
LAG, select the number from the drop-down menu.
Description The user-defined LAG description of up to
64 characters. This field is blank by default.
LACP Select the checkbox to enable Link Aggregation
Control Protocol (LACP).
LAG Type (Read-only) The LAG type. The values are:
eth100m The LAG contains 100 Mbps Ethernet ports.
eth1000m The LAG contains 1000 Mbps Ethernet
ports.
Administrative Status The LAG’s administrative status.
Select either Up or Down to enable or disable the LAG.
Current Status (Read-only) The LAG’s status, either Up or
Down.
Admin Auto Negotiation Select Enable (default) or
Disable to enable or disable Auto-Negotiation on the
LAG. Auto-Negotiation allows a LAG to advertise its
transmission rate, duplex mode, and flow control settings
to other LAGs.
Current Auto Negotiation (Read-only) The LAG’s current
Auto-Negotiation status.
Admin Speed Use this to manually set the LAG’s
configured transmission rate in Mbps. You can select 10M,
100M, or 1000M (Gigabit ports only). Before you change
this setting, make sure that Admin Auto Negotiation is
disabled.
Current LAG Speed (Read-only) The LAG’s current rate in
Mbps.
Admin Flow Control Select Enable or Disable to
manually enable or disable flow control, or select Auto-
Negotiation for automatic selection of flow control.
•
•
Current Flow Control (Read-only) The current flow
control setting.
Select Ports To add a port to the LAG, select its checkbox
in this section. You can select up to 8 ports per LAG.
Click Save to save the settings and leave the screen open.
Click Save & Close to save the settings and close the
screen. Click Close to close the screen without saving the
settings.
Port Management > LACP
In addition to LAGs that you create by manually grouping
ports together, you can also use the Link Aggregation
Control Protocol (LACP) to automatically negotiate a LAG
link between the Switch and another network device.
The LACP screen contains fields for configuring LACP
LAGs.
Port Management > LACP
Global Parameter
LACP System Priority The global LACP priority value,
from 1 to . The default value is 1.
Port Priority
Unit No The number of the unit that you are managing.
Port The port to which the timeout and priority values
will be assigned. To configure a different port, select it
from the drop-down menu. If the port is not listed, click
Next in the LACP Port Table.
LACP Port Priority Defines the LACP priority value for
the port, from 1 to . The default value is 1.
LACP Timeout The administrative LACP timeout value.
Select either Short or Long (default).
