B-2

OPERATION

B-2

WELDING CONTROLS

(Figure B.1)

1. OUTPUT CONTROL-

The OUTPUT dial is used to preset the

output voltage or current as displayed on the digital meters for the

five welding modes. When in the CC-STICK, ARC GOUGING or

CV-WIRE modes and when a remote control is connected to the

6-Pin or 14-Pin Connector, the auto-sensing circuit automatically

switches the OUTPUT CONTROL from control at the welder to

the remote control.

When in the DOWNHILL PIPE mode and when REMOTE CON-

TROL is connected to the 6-Pin or 14-Pin Connector, the OUTPUT

CONTROL is used to set the maximum current range of the OUT-

PUT CONTROL of the REMOTE.

Example: When the OUTPUT CONTROL on the welder is set to

200 amps the current range on the REMOTE CONTROL will be

40-200 amps rather than the full 40-300 amps. Any current range

that is less than the full range provides finer current resolution for

more fine tuning of the output.

In the CV-WIRE mode, if the feeder being used has a voltage con-

trol when the wire feeder control cable is connected to the 14-Pin

Connector, the auto-sensing circuit automatically makes OUTPUT

CONTROL inactive and the wire feeder voltage control active.

Otherwise, the OUTPUT CONTROL is used to preset the voltage

When in the TOUCH START TIG mode and when an Amptrol is

connected to the 6-Pin Connector, the OUTPUT dial is used to

set the maximum current range of the CURRENT CONTROL of

the Amptrol.

2. DIGITAL OUTPUT METERS-

The digital meters allow the

output voltage (CV-WIRE mode) or current (CC-STICK, DOWN-

HILL PIPE, ARC GOUGING and TIG modes) to be set prior to

welding using the OUTPUT control dial. During welding, the

meter display the actual output voltage (VOLTS) and current

(AMPS). A memory feature holds the display of both meters on

for seven seconds after welding is stopped. This allows the oper-

ator to read the actual current and voltage just prior to when

welding was ceased.

While the display is being held the left-most decimal point in

each display will be flashing. The accuracy of the meters is +/-

3%.

3. WELD MODE SELECTOR SWITCH-

(Provides five selectable welding modes)

CV-WIRE

ARC GOUGING

DOWNHILL PIPE

CC-STICK

TOUCH START TIG

1

9

11

20

7

4

10

5

8

12

13

15

19

6

21

22

14

18

17

16

2

3

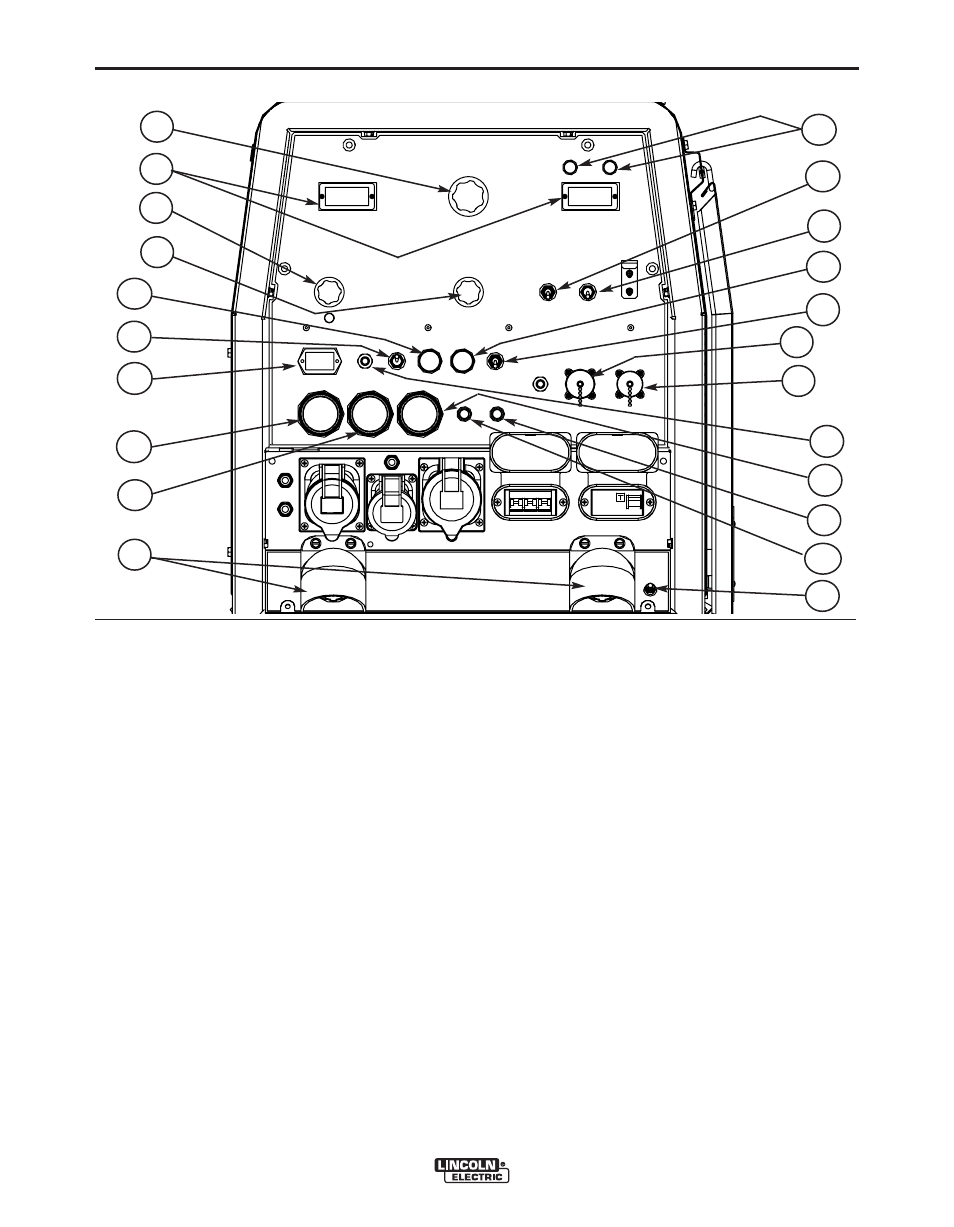

FIGURE B.1

VANTAGE

®

400 (CE)
