DOLBY PRO LOGIC II MUSIC (EXOTIK+DA)
Dolby Pro Logic II is an audio signal processing algorithm that converts a two-channel
audio signal to a five-channel audio signal.
Dolby Pro Logic II Music is a mode of Dolby Pro Logic II that is particularly suited to
music. It features three user-adjustable parameters that are accessed from this item.
C
CE
EN
NT
TR
RE
E W
WIID
DT
TH
H
This parameter allows adjustment of the audio signal between the centre
loudspeaker and front left and right loudspeakers.
If set to 0
0 (no spreading) all of the audio signal for the centre channel is sent to the
centre loudspeaker.
If set to 3
3 (neutral) a portion of the centre channel signal is also sent to the left and
right front loudspeakers.
If set to 7
7 (Full Phantom) all of the centre channel signal is split evenly between the
front left and right loudspeakers.
Range: 0
0 tto
o 7
7
Default setting: 3
3
P
PA
AN
NO
OR
RA
AM
MA
A C
CO
ON
NT
TR
RO
OL
L
If set to O
ON
N, the Panorama control extends the audio signal from the front left and
right loudspeakers to include the surround left and right loudspeakers. This adds a
"wraparound" effect to the sound.
Options: O
ON
N,, O
OF
FF
F
Default setting: O
OF
FF
F
D
DIIM
ME
EN
NS
SIIO
ON
N C
CO
ON
NT
TR
RO
OL
L
This parameter allows you to shift the balance between the front and rear
loudspeakers. Positive values move the sound towards the front, negative values
towards the rear.
If a recording is too spacious or strong from the surround loudspeakers it can be
shifted "forward" to get a better balance. A stereo recording can be shifted
"backward" to make the sound more enveloping.
Range: --3
3 (most rear) tto
o 3
3 (most front)
Default setting: 0
0 (neutral)
Select S
SA
AV
VE
E to save your changes and return to the AUDIO OPTIONS menu.
Select B
BA
AC
CK
K to return to the AUDIO OPTIONS menu without saving changes.
Select E
EX
XIIT
T to leave setup (if changes have been made and SAVE has not been
selected, you will be prompted to save or not save the changes).
Select S
SA
AV
VE
E to save your changes and return to the MAIN MENU.
Select B
BA
AC
CK
K to return to the MAIN MENU without saving changes.
Select E
EX
XIIT
T to leave setup (if changes have been made and SAVE has not been selected,
you will be prompted to save or not save the changes).
General setup

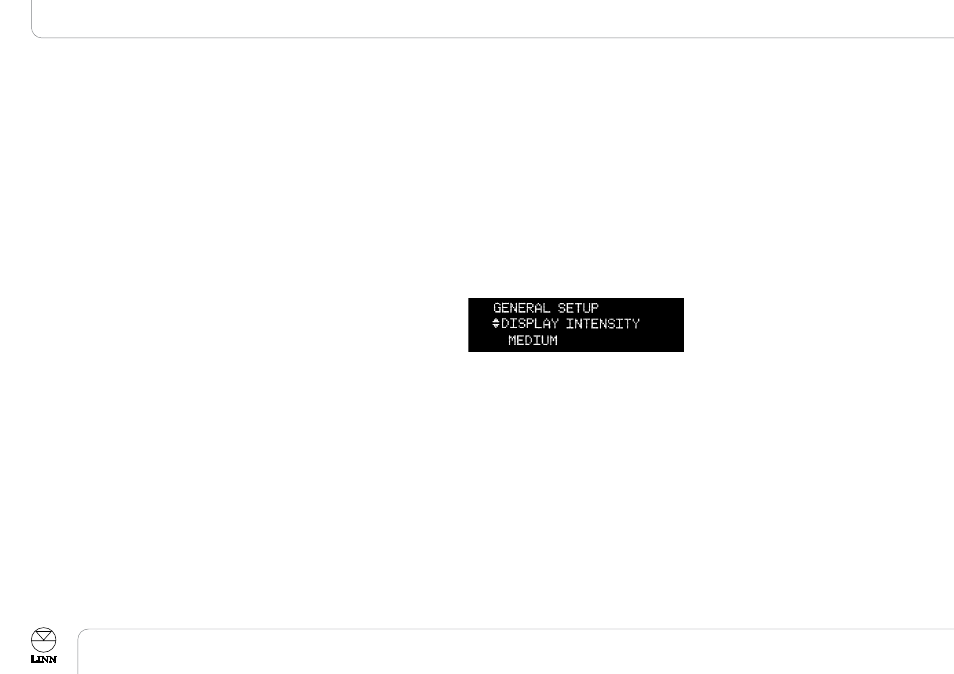

DISPLAY INTENSITY
Set the brightness of the front panel display.
Options: L
LO
OW
W,, M
ME
ED
DIIU
UM
M,, H
HIIG
GH
H
Default setting: M
ME
ED
DIIU
UM
M
DISPLAY CONTENT
Set what information you want displayed on the unit’s front panel when it is in normal
operation.
Options: L
LA
AS
ST
T U
US
SE
ED
D (source or volume), (current) S
SO
OU
UR
RC
CE
E A
AN
ND
D V
VO
OL
LU
UM
ME
E,, V
VO
OL
LU
UM
ME
E,,
(current) S
SO
OU
UR
RC
CE
E
Default setting: S
SO
OU
UR
RC
CE
E A
AN
ND
D V
VO
OL
LU
UM
ME
E
