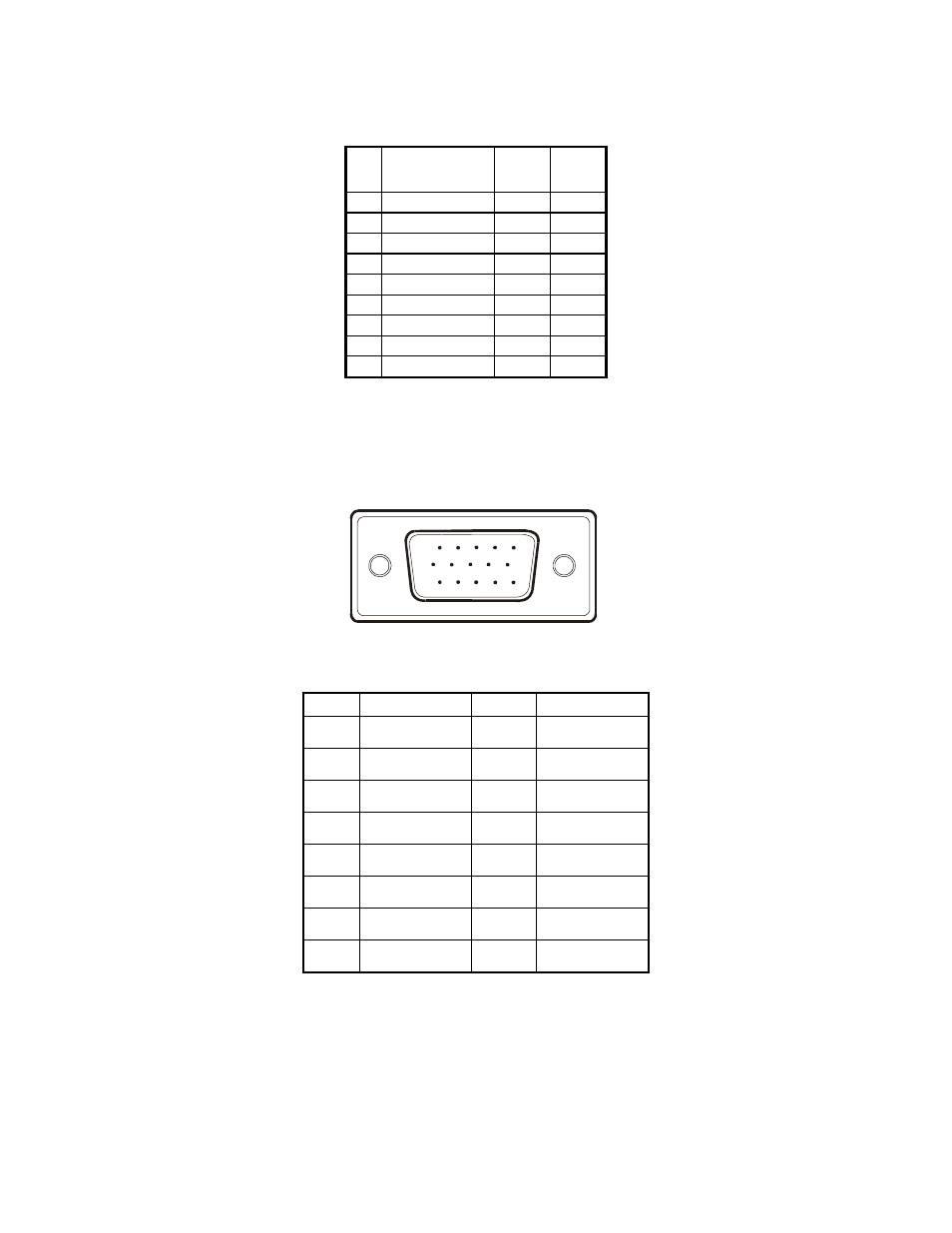

The factory preset modes as indicated in the following table
Mo
de
Resolution
(dots x lines )
Fh. Fv.
1 640 x 480 31.5 60
2 640 x 480 43.3 85
3 720X400 31.5 70
4 800 x 600 46.9 75
5 800 x 600 53.7 85
6 1024 x 768 60.0 75
7 1024 x 768 68.7 85
8 1152 x 864 67.5 75
9 1280 x 1024 64.0 60
Connector Pin Assignment
15 - Pin Color Display Signal Cable
Pin Assignment Pin Assignment
1 Red Video 9 +5V
2 Green Video 10 Ground
3 Blue Video 11 Ground
4 Ground 12 SDA For DDC
5 NC 13 H. Sync.
6 Red Ground 14 V. Sync.
7 Green Ground 15 SCL For DDC
8 Blue Ground
1 5
6 10
11 15
14
