ADSL Gateway with Modem / Router / 4-Port Switch / Wireless-Ready

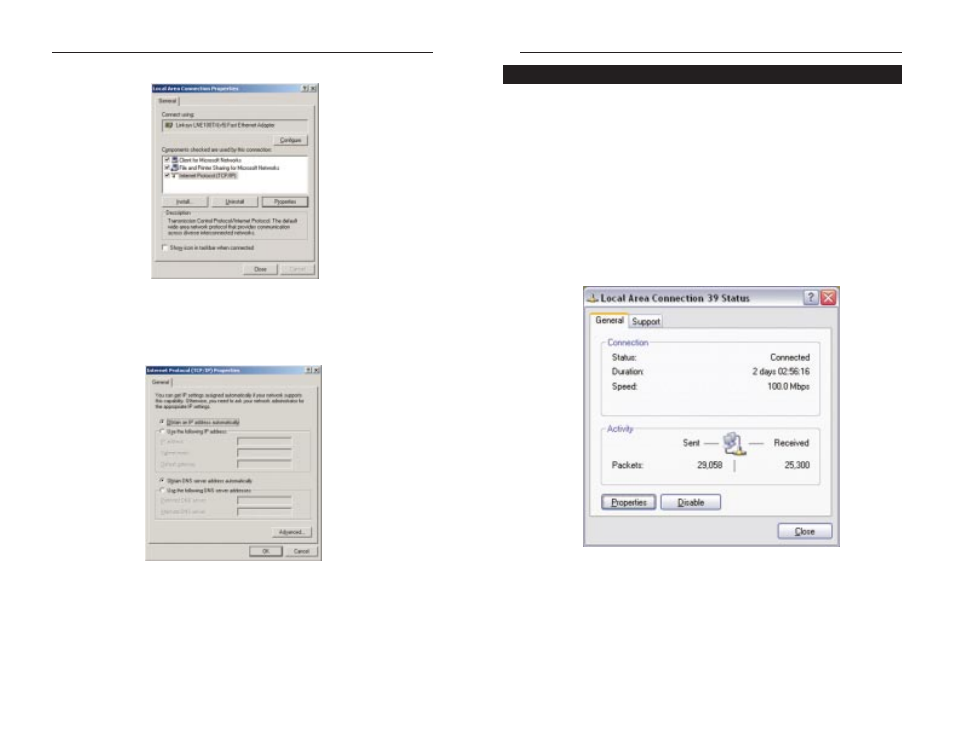

The following instructions assume you are running Windows XP with the
default interface. If you are using the Classic interface (where the icons and
menus look like previous Windows versions), please follow the instructions for
Windows 2000.
1. Click to the Network screen by clicking the Start button and then Control
Panel. From there, click the Network and Internet Connections icon and
then the Network Connections icon.
2. Select
the
Local Area Connection icon for the applicable Ethernet adapter
(usually it is the first Local Area Connection listed). Double-click the
Local Area Connection. Click the Properties button.
3. The Local Area Connection Status screen will appear. Click the Properties
button.
17
Instant Broadband
™
Series
4. Select
Internet Protocol (TCP/IP), and click the Properties button.
5. Select Obtain an IP address automatically. Once the new window
appears, click the OK button. Click the OK button again to complete the
PC configuration.
6. Restart your computer.
Go to “Chapter 5: Configuring the Gateway.”
16
Windows XP
Figure 4-6
Figure 4-4
Figure 4-5
