External Equipment Connections External Equipment Connections
Installation Installation

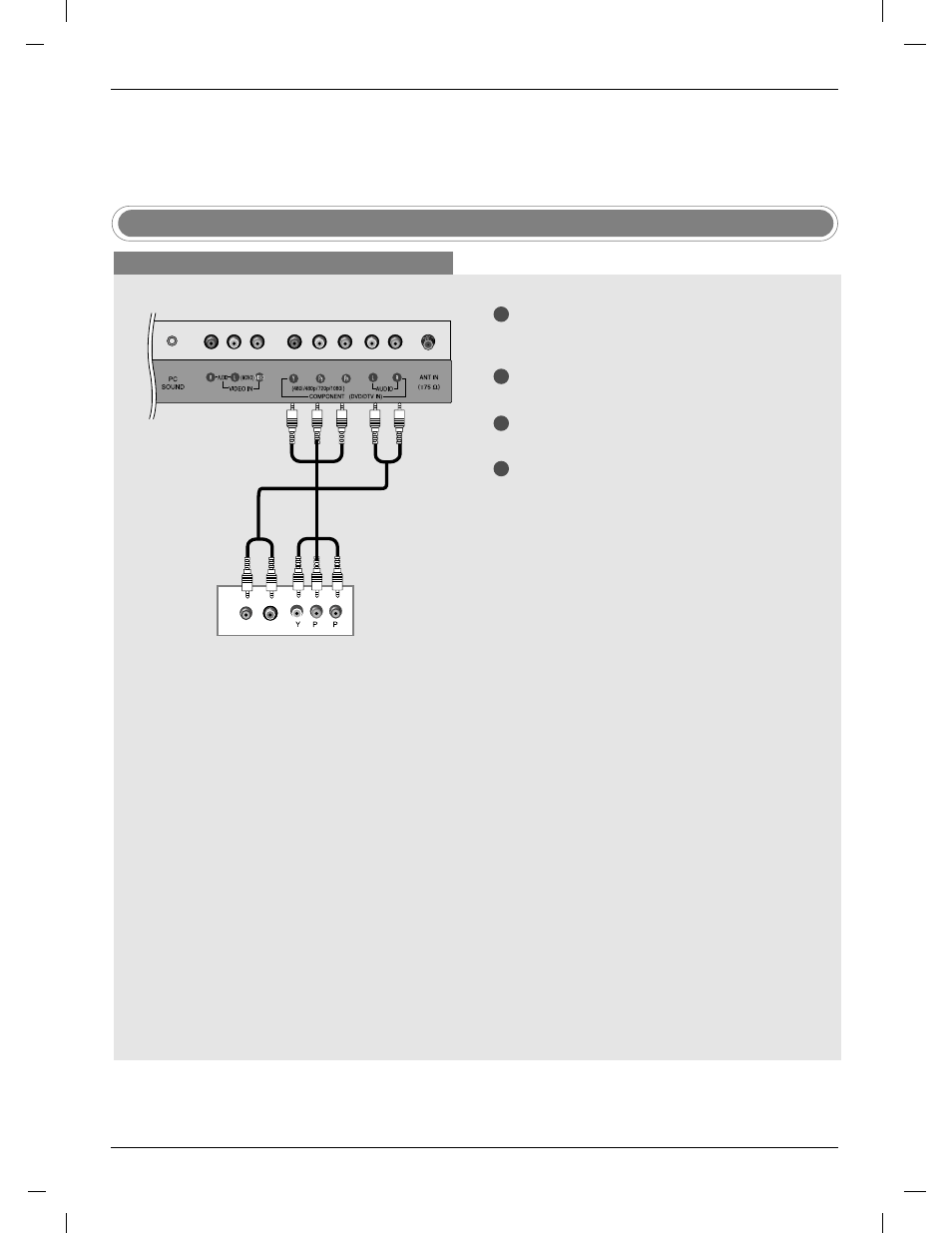

When connecting with a component cable
1
2
3
4
Connect the video outputs (Y, P B , P R ) of the digi-
tal set-top box to the COMPONENT DVD IN (Y,
P
B , P R ) jacks on the set.
Connect the audio outputs of the digital set-top
box to the AUDIO input jacks on the set.
Turn on the digital set-top box. (Refer to the
owner’s manual for the digital set-top box.)
Select Component1 input source with using the
TV/AV button on the remote control.
B R (R) AUDIO (L)
1
DTV Receiver (Set-top Box)
DTV Setup
TV back panel
