17

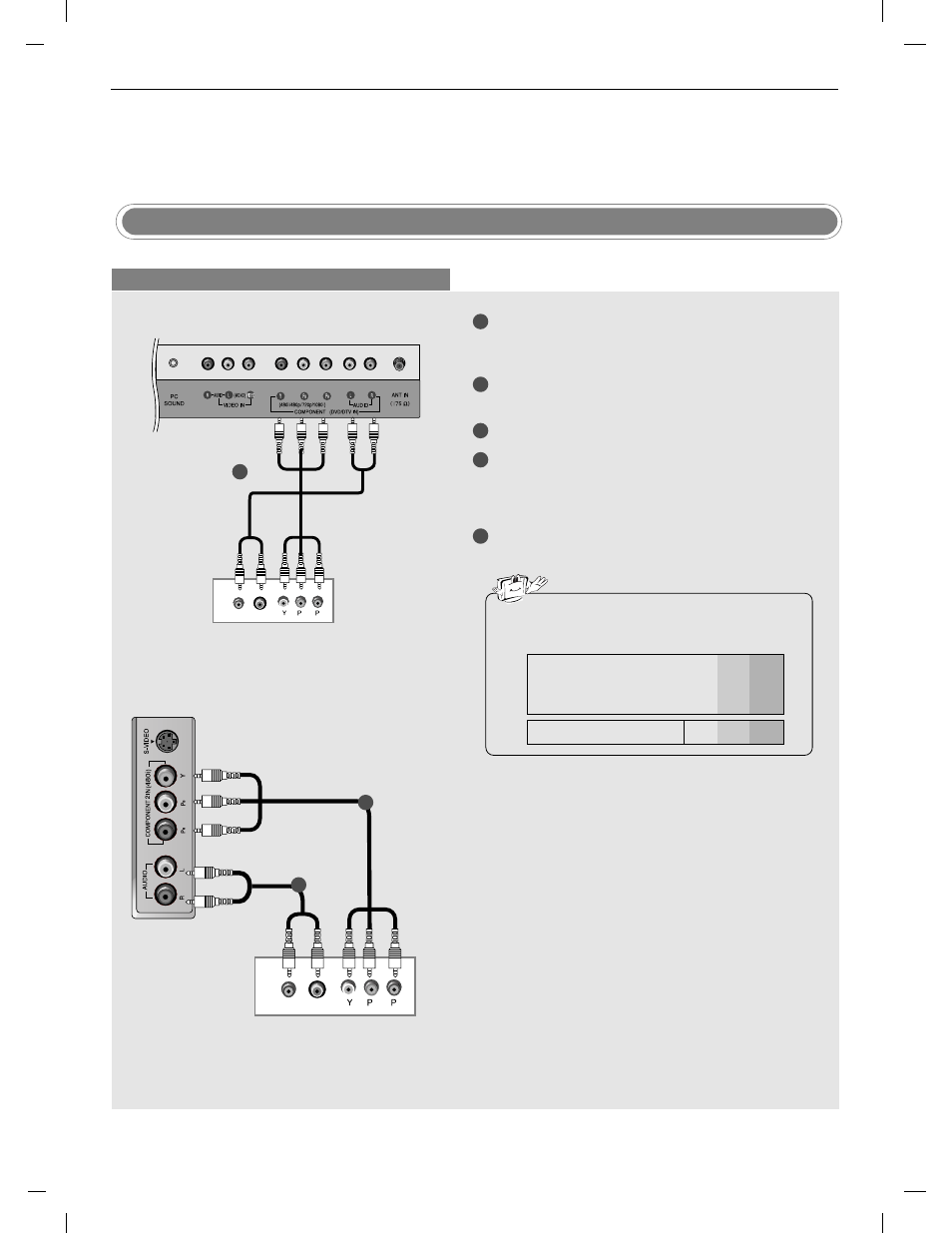

External DVD Setup
When connecting with a component cable
B R (R) AUDIO (L)
DVD
TV side panel
1
1
2
2
3
4
5
Connect the video outputs (Y, P B , P R ) of the DVD
to the COMPONENT DVD IN (Y, P B , P R ) jacks on
the set.
Connect the audio outputs of the DVD to the
AUDIO input jacks on the set.
Turn on the DVD player, insert a DVD.
Select Component1 input source with using the
TV/AV button on the remote control.
- If connected to COMPONENT2 IN select
Component2 input source.
Refer to the DVD player's manual for operating
instructions.
• Component Input ports
To get better picture quality, connect a DVD player
to the component input ports as shown below.
Y P B P R Component ports on the TV
Y
Y
Y
Y Pb
B-Y
Cb
P B
Pr
R-Y
Cr
P R
Video output ports
on DVD player
B R (R) AUDIO (L)
1
DVD
TV back panel
1
