The front panel – Linksys WAP54G v2 User Manual
Page 13
7
Chapter 3: Getting to Know the Wireless-G Access Point
The Front Panel
Wireless-G Access Point
The Front Panel
The Access Point's LEDs, where information about network activity is displayed, are located on the front panel.
Power
Green. The Power LED lights up when the Access Point is powered on.
Act
Green. If the Act LED is flickering, the Access Point is actively sending or receiving data to or
from one of the devices over the LAN port.
Link
Green. The Link LED lights whenever the Access Point is successfully connected to a device
through the LAN port.

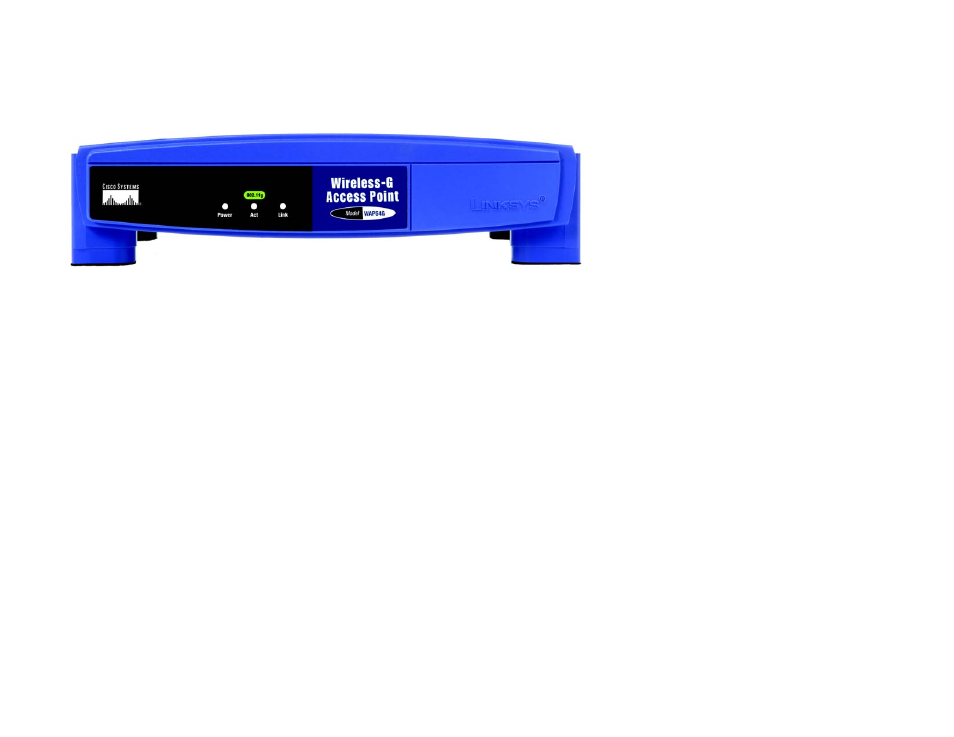

Figure 3-2: Front Panel
