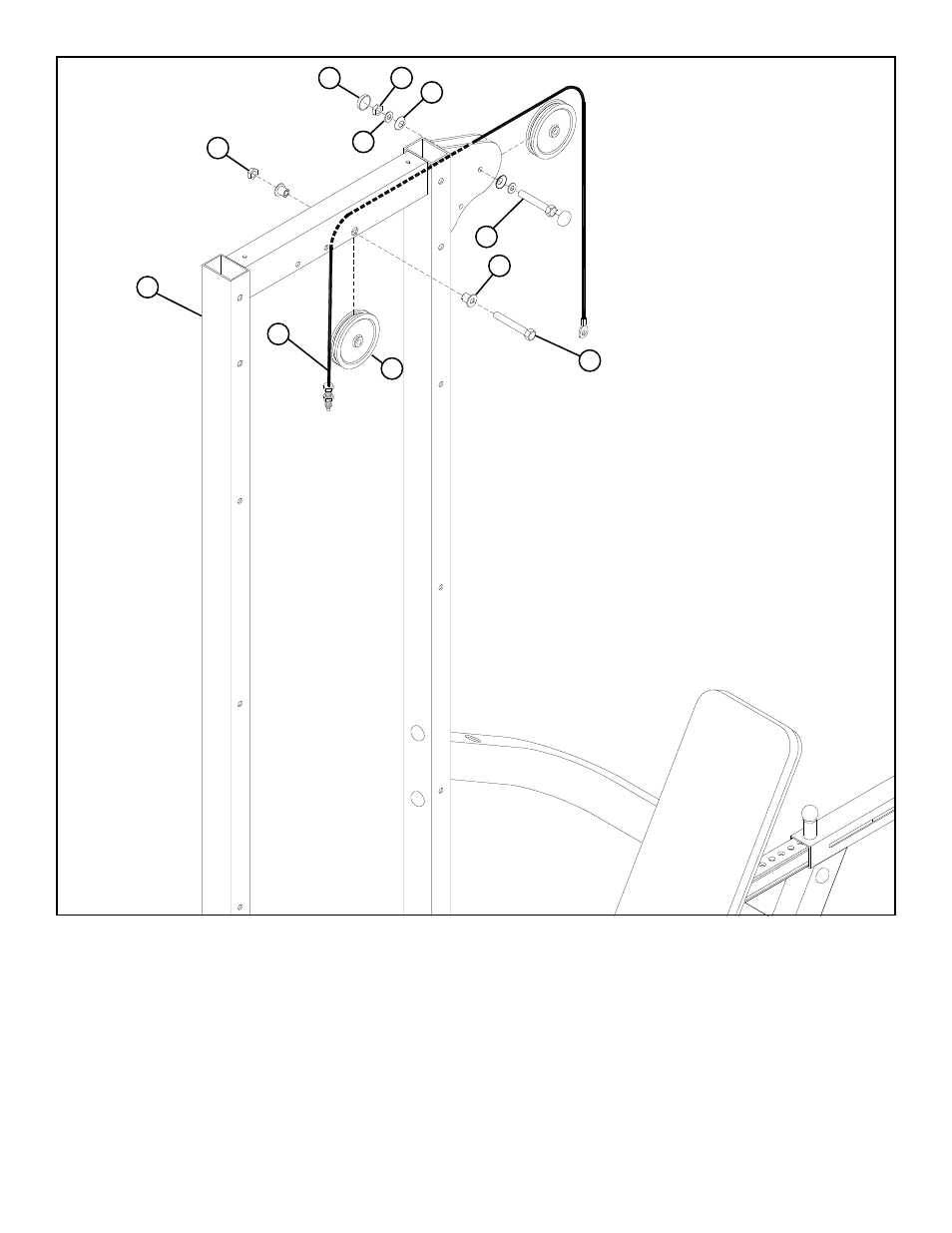

• Route the WEIGHT STACK CABLE (13) through the TOWER (1) as shown, and SECURELY assemble one 4-1/2” PULLEY (16) inside
the TOWER (1) using one 3/8 X 67mm BOLT (27), two 3/8 X 1/2” FLANGE SPACERS (23) and one 3/8” LOW HEIGHT LOCK NUT (34)
as shown in FIGURE 8.
27 3/8 X 67mm
34
1
16
13
STEP 8:
FIGURE 8
23
9
25 3/8 X 43mm
34
35
36
38
• SECURELY assemble one 4-1/2” PULLEY (16) between the flats of the TOWER (1) using two RH CAPS (38), one 3/8 X 43mm BOLT (25),
two 3/8” SAE WASHERS (35), two 3/8” RH WASHERS (36), and one 3/8” LOW HEIGHT LOCK NUT (34) as shown in FIGURE 8.
