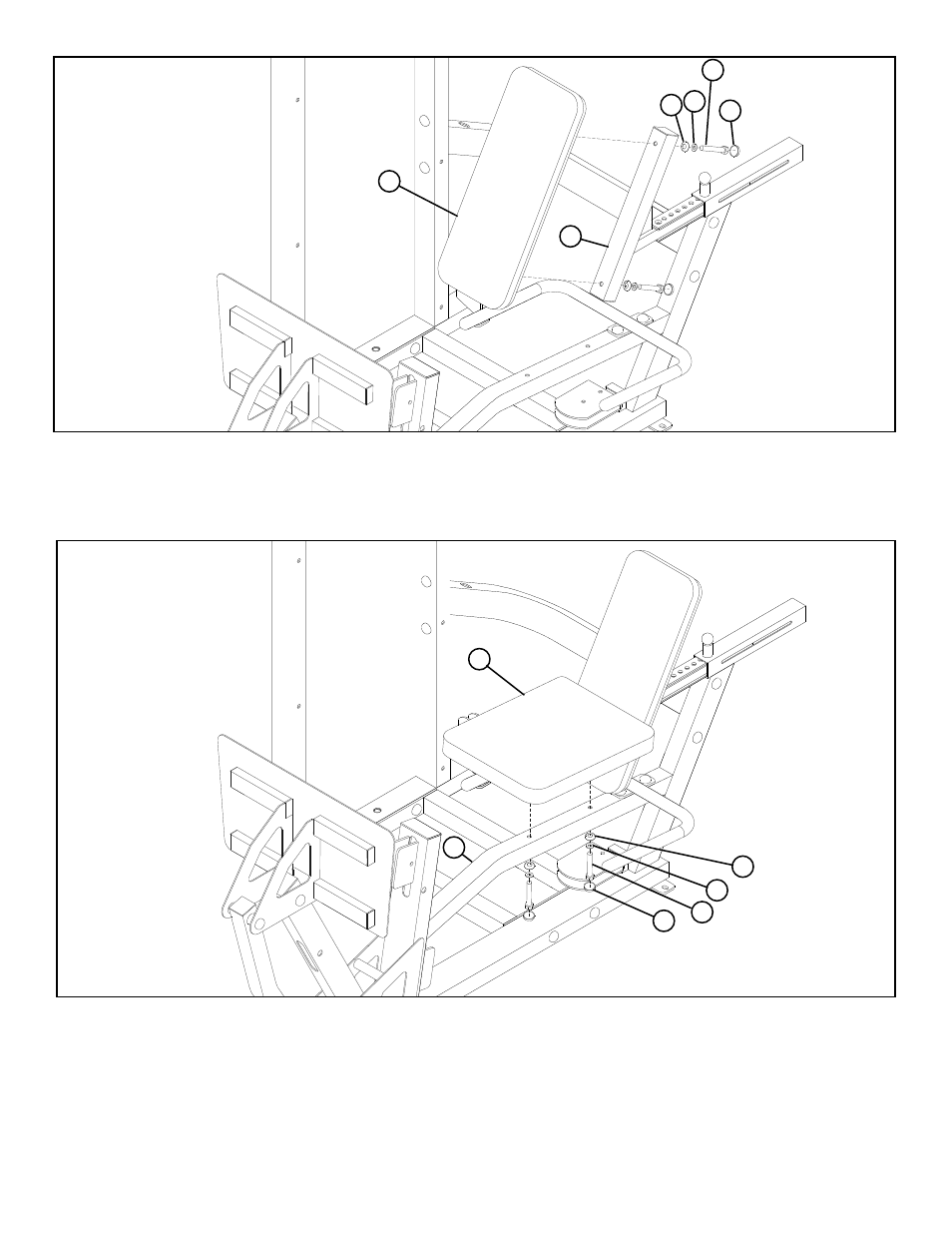

STEP 6:
FIGURE 6
35
36
12
28 3/8 X 73mm
37
BLACK
• SECURELY assemble the BACK PAD (12) to the BACK PAD ADJUST (46) using two BLACK RH CAPS (37), two 3/8 X 73mm BOLTS
(28), two 3/8” SAE WASHERS (35) and two 3/8” RH WASHERS (36) as shown in FIGURE 6.
46
STEP 7:
FIGURE 7
• SECURELY assemble the SEAT PAD (11) to the LEG PRESS FRAME (2) using two RH CAPS (38), two 3/8 X 73mm BOLTS (28),two 3/
8” SAE WASHERS (35) and two 3/8” RH WASHERS (36) as shown in FIGURE 7.
28 3/8 X 73mm
38
11
2
35
36
