Owner’s Manual 15

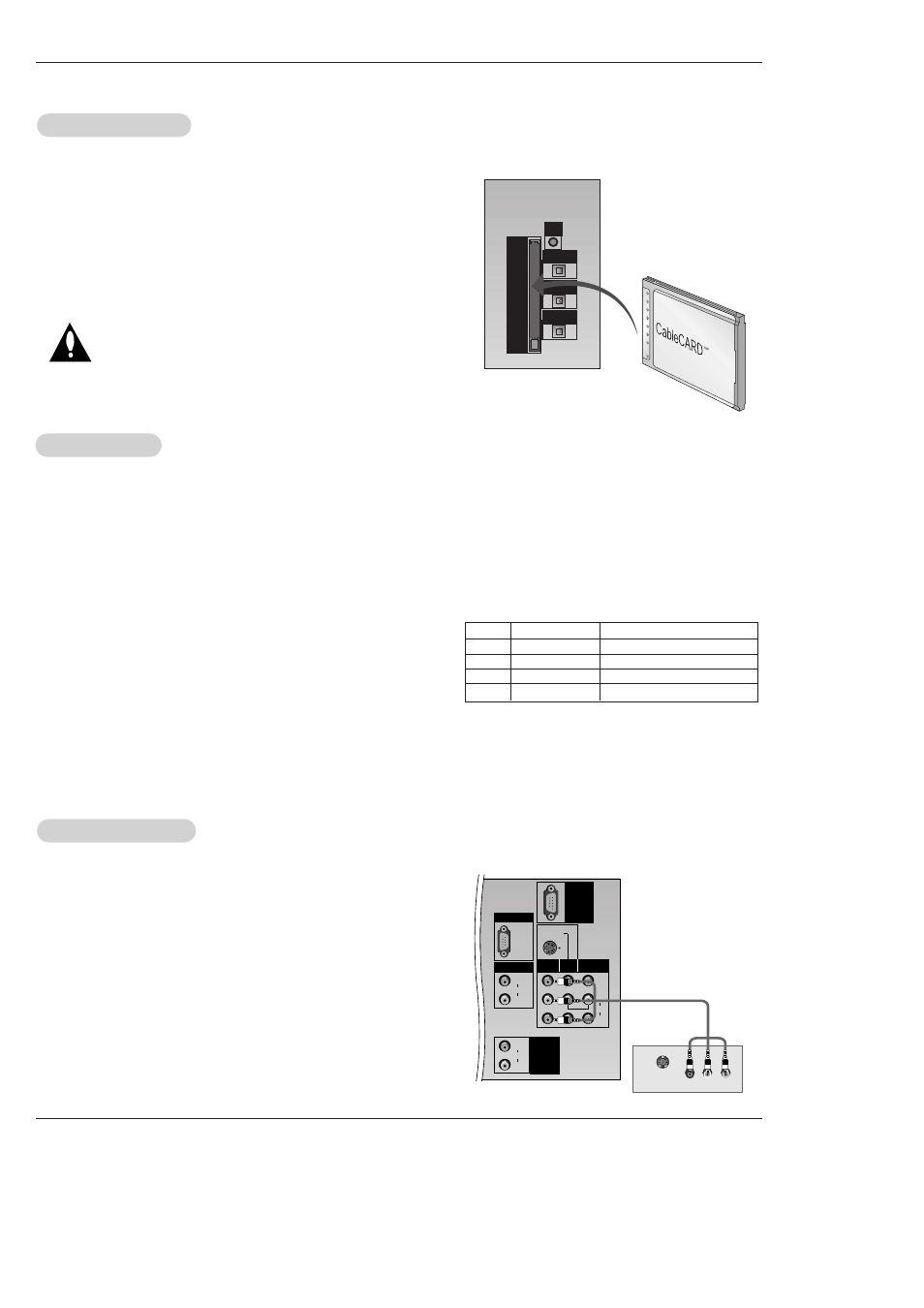

Installation
The TV has a special signal output capability which allows you to
hook up a second TV or monitor.
Connect the second TV or monitor to the TV’s MONITOR OUTPUT.
See the Operating Manual of the second TV or monitor for further
details regarding that device’s input settings.
Note
• Component, RGB-PC/RGB-DTV, HDMI1/DVI,HDMI2, DTV input
sources cannot be used for Monitor out.
Monitor Out Setup Monitor Out Setup
S-VIDEO IN
(R) AUDIO (L) VIDEO
PC/DTV
(XGA
/480p
/720p
/1080i)
S-VIDEO
MONO
RGB INPUT
RGB/DVI INPUT
(L)
(R)
AUDIO
(L)
(R)
AUDIO
VIDEO
(L)
(R)
AUDIO
MONITOR
OUTPUT
VIDEO
INPUT2
VIDEO
INPUT1
VARIABLE
AUDIO OUT
UPGRADE
PORT
How to connect
Use the TV’s COMPONENT (Y, P B , P R ) INPUT, RGB, HDMI1/DVI or
HDMI2 jack for video connections, depending on your set-top box connec-
tor. Then, make the corresponding audio connections.
Note: HDMI(High Definition Multimedia Interface): Input that accepts uncom-
pressed digital signal and multi channel digital audio signal.
How to use
1. Turn on the digital set-top box. (Refer to the owner’s manual for the digital
set-top box.)
2. Use TV/VIDEO on the remote control to select Component 1,
Component 2, RGB-DTV, HDMI1/DVI or HDMI2 source.
HDSTB Setup HDSTB Setup
- This TV can receive Digital Over-the-air/Cable signals without an external digital set-top box. However, if you do receive Digital
signals from a digital set-top box or other digital external device, refer to the figure as shown below.
- This TV supports HDCP (High-bandwidth Digital Contents Protection) protocol for Digital Contents (480p,720p,1080i).
Signal
480i
480p
720p
1080i Component 1/2
Yes
Yes
Yes
Yes
RGB-DTV,HDMI1/DVI,HDMI2
No
Yes
Yes
Yes
CableCARD CableCARD TM TM Setup Setup
DIGITAL AUDIO
OPTICAL INPUT1 (COMPONENT2)
DIGITAL AUDIO
OPTICAL INPUT2 (DVI)
DIGITAL AUDIO
OPTICAL OUTPUT
G-LINK
C
a
b
l
e
C
A
R
D
How to use
Insert the CableCARD TM TM received from the cable service provider to the
CableCARD TM TM slot of TV back panel.
If the pairing information about this TV and the CableCARD is automatically
displayed on the screen, contact with the cable service provider by phone.
Note :
• CableCARD
TM TM have the types of Motorola, Scientific Atlanta, SCM etc..
These 3 types of CableCARD TM TM can be used for this DLP Projection TV.
Caution: When removing the CableCARD TM TM , do not
drop it as this may cause damage to the
CableCARD
TM TM .
