DEFINITY AUDIX System Release 4.0
System Description Pocket Reference
585-300-214
Issue 1
May 1999
Customer Responsibilities
B-5
Cable Connections

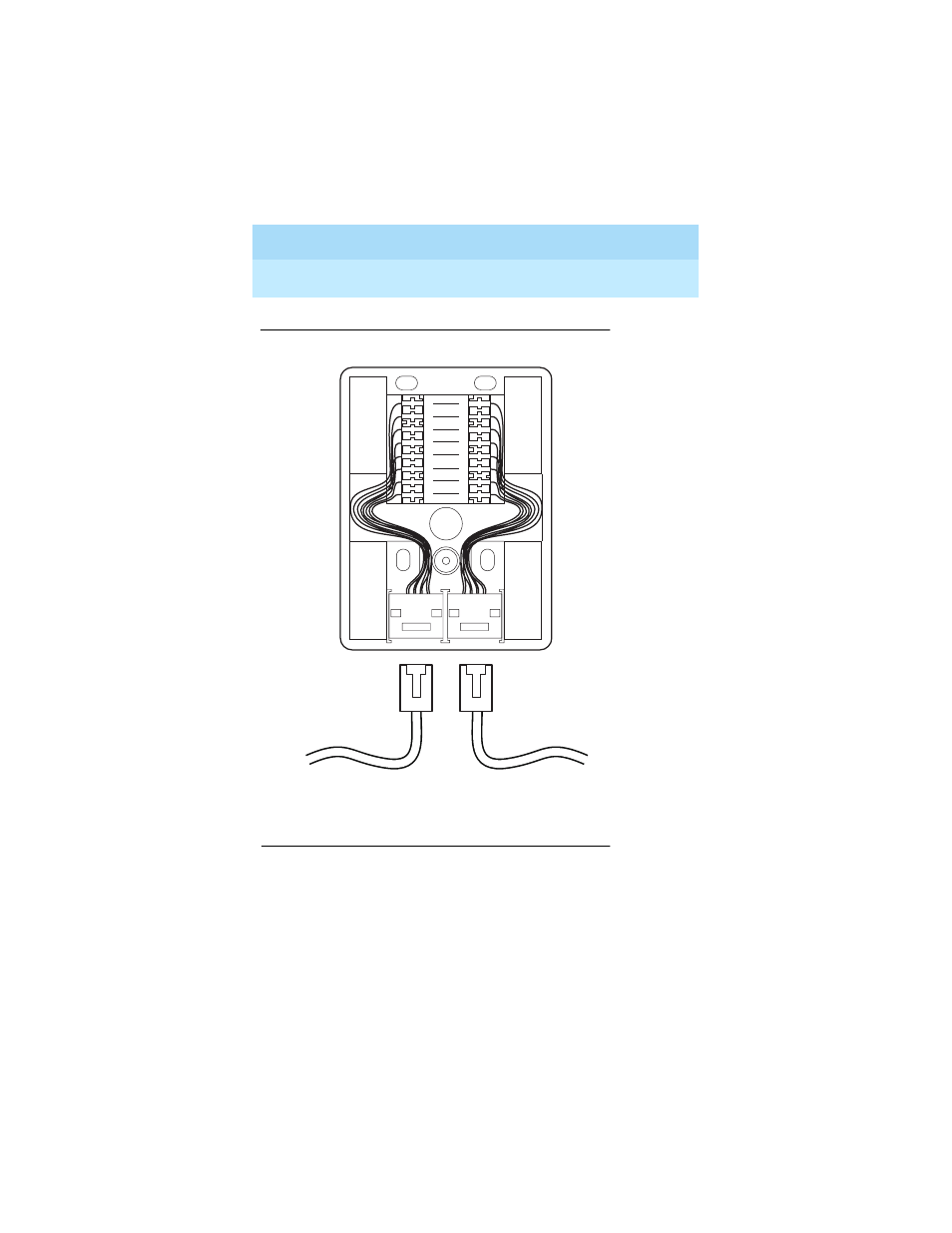

Figure B-2.
Lucent- and Customer-provided LAN Connections
8
7
6
5
4
3
2
1
8
7
6
5
4
3
2
1
WE
104A
RJ-45
connectors
10BaseT
Customer-provided
LAN connection
Lucent-provided
D8W cord
h2dx104p KLC
021999
To
DEFINITY AUDIX
LAN connector
