LG 3230 - Manual (Page 33)

EXTERNAL
EQ
UIPMENT
SETUP
31
S-Video Connection
(Except 32/37/42/47/52LG60)
N
UDIO
B/DVI)
REMOTE
CONTROL IN
ANTENNA/
CABLE IN
RS-232C IN
(CONTROL & SERVICE)
L R
AUDIO
OPTICAL COAXIAL
DIGITAL AUDIO OUT
AUDIO OUT
A
V IN 1
VIDEO L R (MONO) AUDIO S-VIDEO
L R S-VIDEO
AUDIO
1 2

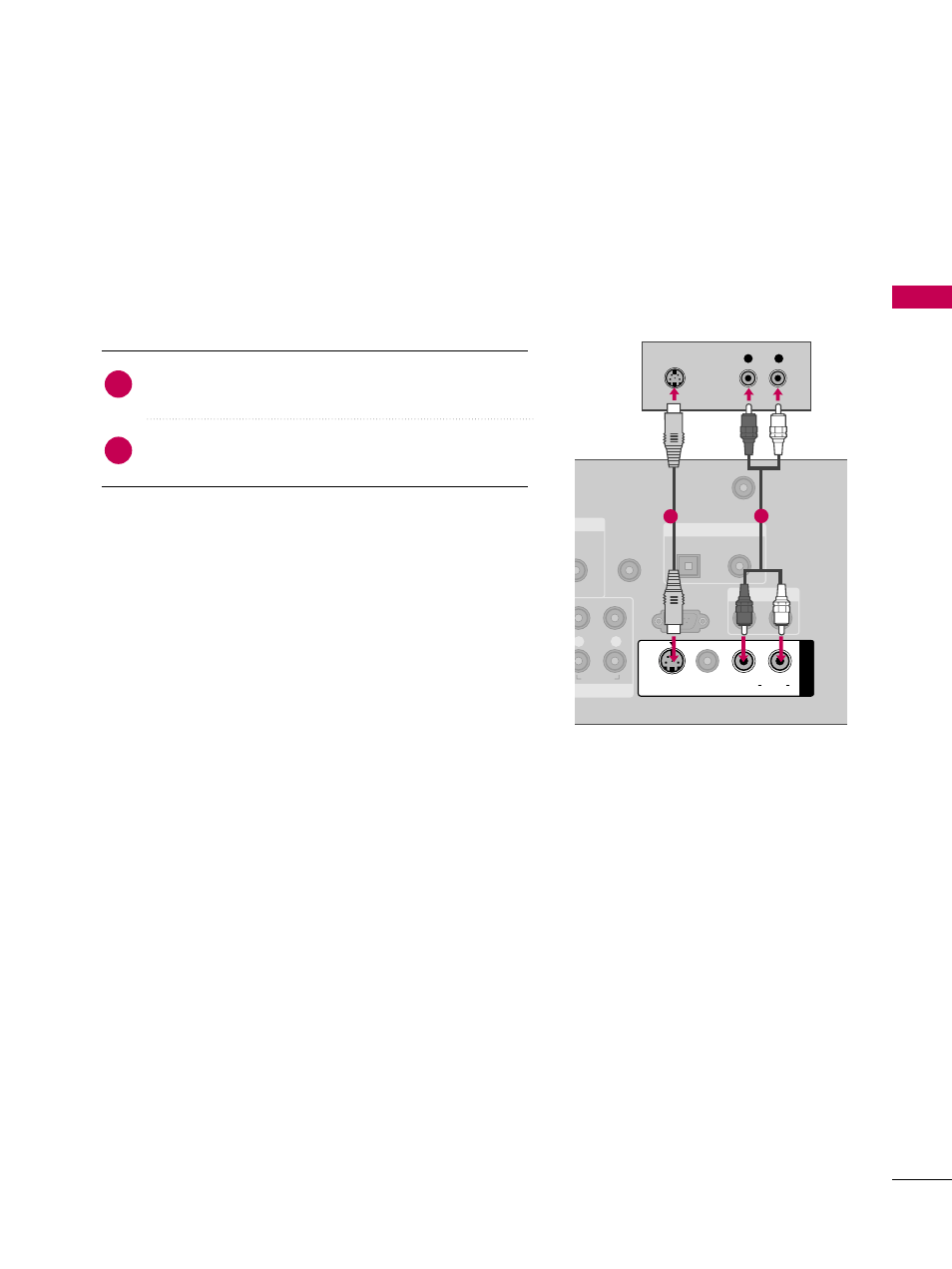

Connect the S-VIDEO output of the DVD to the
SS --V
VIID DEEO O input on the TV.
Connect the audio outputs of the DVD to the A AU UD DIIO O
input jacks on the TV.
1. How to connect
2. How to use
■ Turn on the DVD player, insert a DVD.
■ Select the A A V V 1 1 input source on the TV using the IIN NPPU UT T
button on the remote control.
■ Refer to the DVD player's manual for operating instructions.
