Life Fitness Ab Curl Bench None - Manual (Page 8)

7
M
14
21
22
13
L
20
12

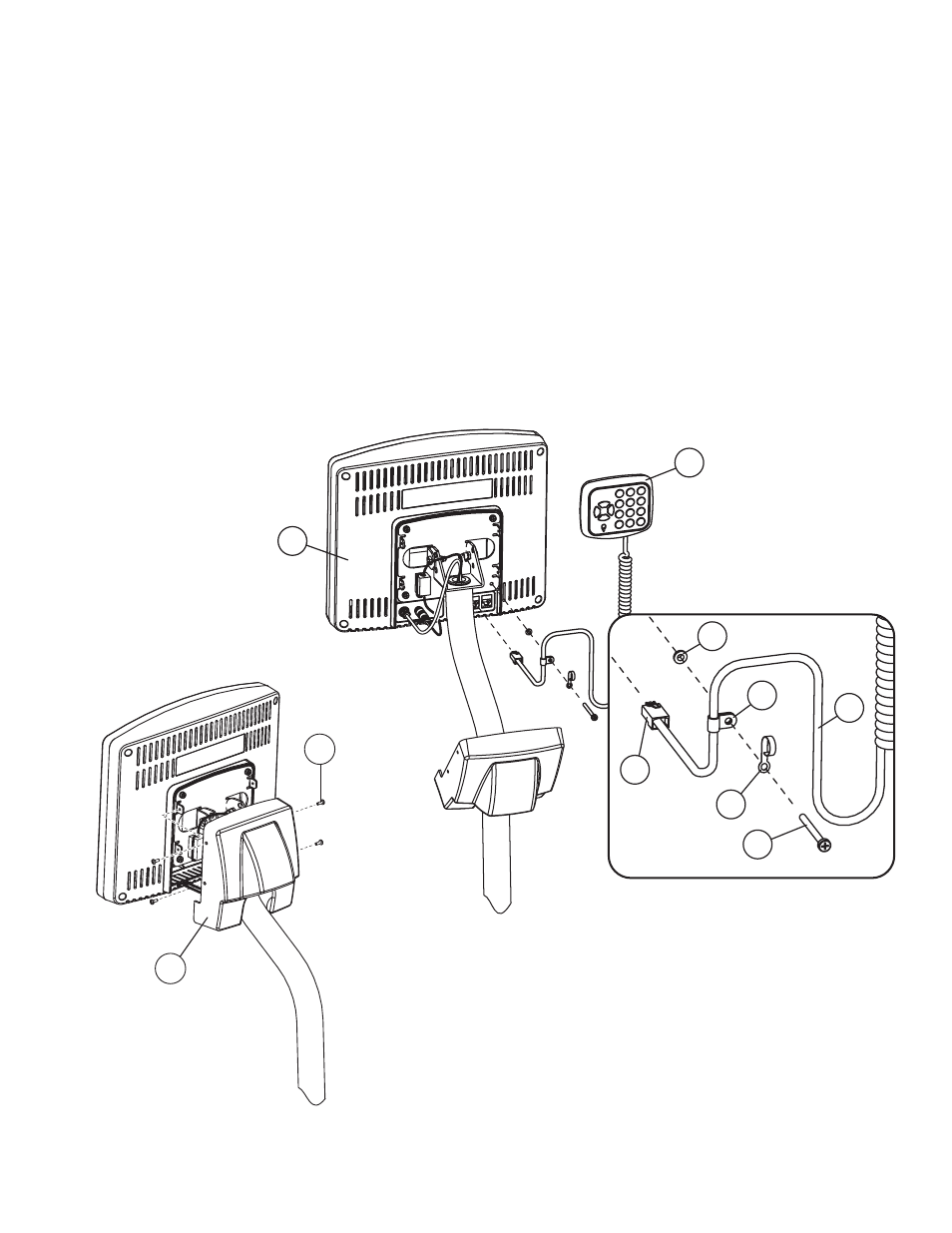

17. Insert the CABLE CLAMP (21) onto the REMOTE CABLE (L) between the connector and the coil as shown.
NOTE: Orient the CABLE CLAMP whereas the REMOTE CABLE is routed to the left of the screw hole as shown.
Insert the REMOTE CABLE CONNECTOR (M) into the inner (left) JACK in the back of the TV CONSOLE (12).
Insert one PHILLIPS SCREW (13) through one NYLON WASHER (14), the CABLE CLAMP (21), and one FLEXIBLE
CABLE CLAMP (22). Insert the SCREW into the remaining TV CONSOLE mounting hole and tighten.
NOTE: Orient the FLEXIBLE CABLE CLAMP as shown.
18. Loosely bundle excess REMOTE CABLE (L) and secure using the FLEXIBLE CABLE CLAMP (22).
19. Raise the REAR CONSOLE COVER (6) up to the TV CONSOLE (12). Secure the REAR CONSOLE COVER using
four PHILLIPS SCREWS (23). Tighten the SCREWS securely.
NOTE: Route the REMOTE CABLE downward through the bottom notch located in the REAR CONSOLE COVER
before securing the REAR CONSOLE COVER.
20. Plug the POWER ADAPTER into an AC outlet.
Refer to the USER MANUAL for instructions on TV SETUP.
6
23
