Hydronic piping, Installation & operation manual – Lochinvar 80 - 285 User Manual
Page 40
Installation & Operation Manual
40
6
Hydronic piping
BOILER
INDIRECT
DHW TANK
DOMESTIC
HOT WATER
CIRCULATOR
BACKFLOW
PREVENTER
PRESSURE
REDUCING VALVE
PRESSURE
GAUGE
ANTI-SCALD
MIXING VALVE
COLD
WATER
IN
TEMPERATURE /
PRESSURE
GAUGE
AIR
SEPARATOR
EXPANSION
TANK
BALL VALVE
(TYPICAL)
UNION
(TYPICAL)
PRESSURE
RELIEF VALVE
DRAIN POINT
(TYPICAL)
MAKE UP WATER
FROM
SYSTEM
NOT TO EXCEED 4 PIPE DIA. OR MAX. OF 12" APART
BOILER
CIRCULATOR
SYSTEM
CIRCULATOR
TO
SYSTEM
SYSTEM SUPPLY
SENSOR
DRAIN
DIRT SEPARATOR
(RECOMENDED)
MAY SUBSTITUTE LOW LOSS HEADER
HOT
WATER
OUT

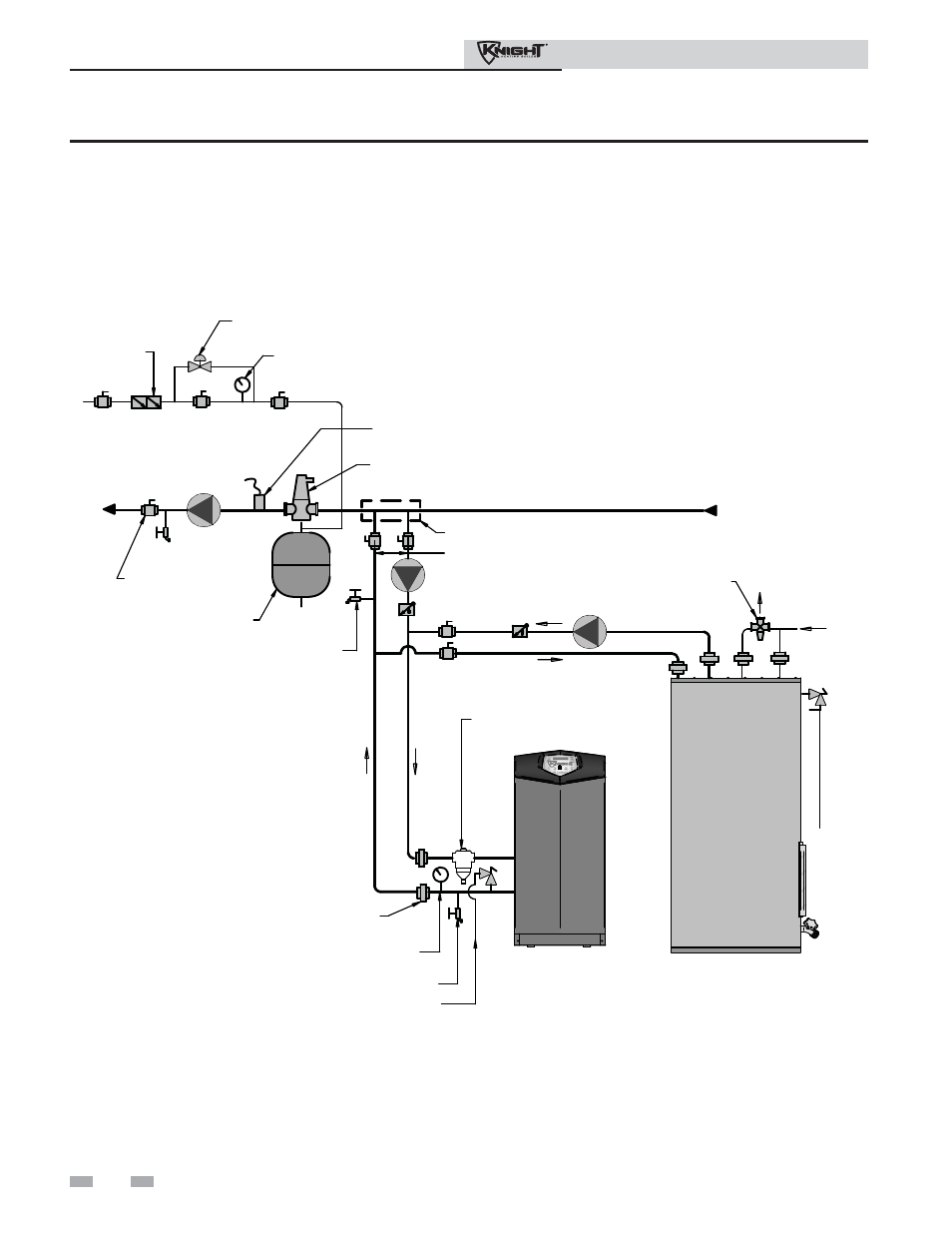

Figure 6-8 Single Boiler - Non-Zoned Primary/Secondary Piping
