Field wiring, Low voltage connections, Thermostat – Lochinvar 80 - 285 User Manual

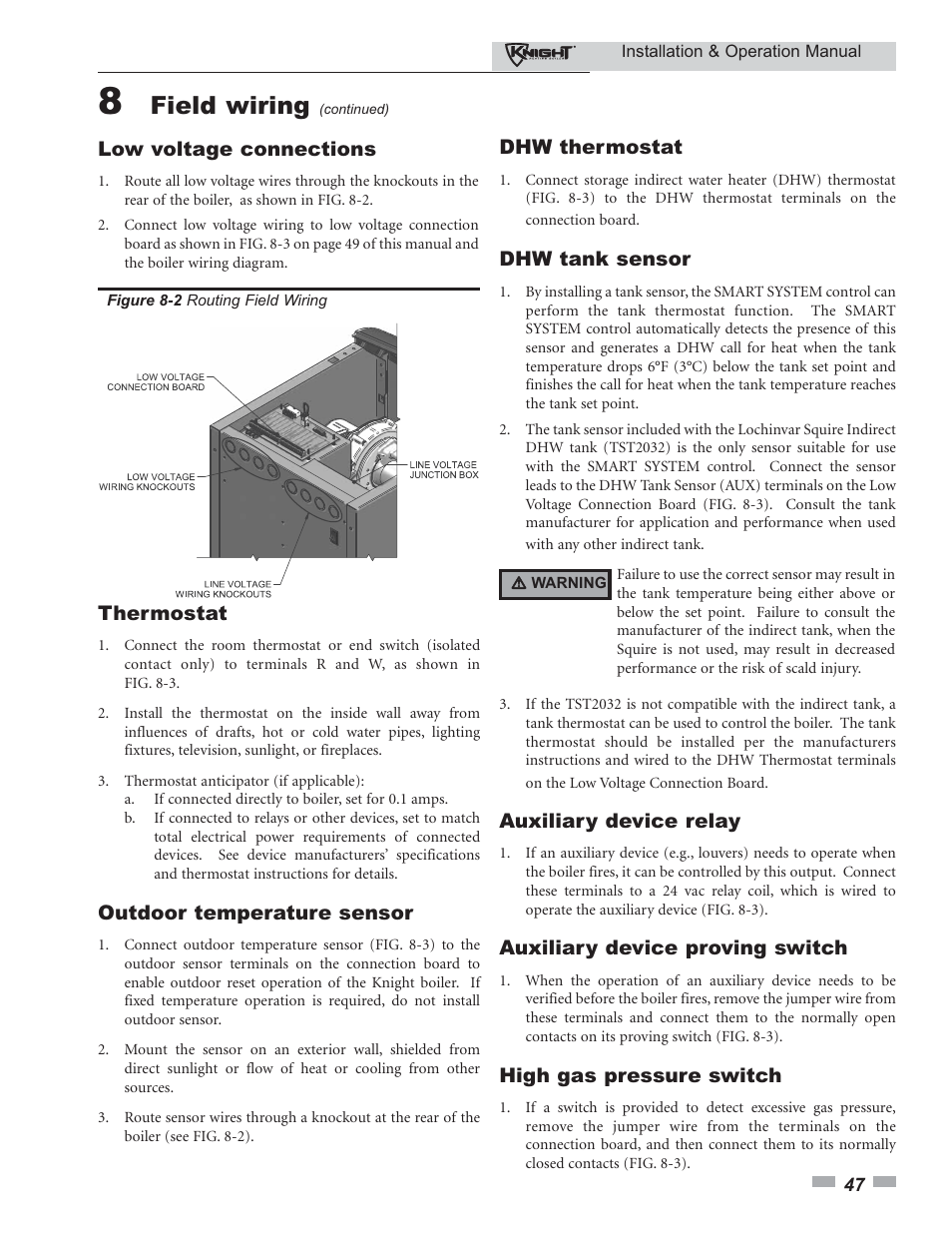

Page 47: Outdoor temperature sensor, Dhw thermostat, Dhw tank sensor, Auxiliary device relay, Auxiliary device proving switch, High gas pressure switch
