Linksys SPA2102 - Manual (Page 21)

Phone Adapter with Router
13 Chapter 4: Getting Started
Placing the Phone Adapter
Placing the Phone Adapter
There are two ways to place the Phone Adapter. The first way is to place the Phone Adapter horizontally on a
surface. The second way is to mount the Phone Adapter on a wall. The wall-mount option is explained in further
detail below.
Wall-Mount Option
The Phone Adapter has two wall-mount slots on its back panel. The distance between the two slots is 58 mm
(2.28 inches).
1. Determine where you want to mount the Phone Adapter.
2. Drill two holes into the wall. Make sure the holes are 58 mm (2.28 inches) apart.
3. Insert a screw into each hole, and leave 5 mm (0.2 inches) of its head exposed.
4. Maneuver the Phone Adapter so the wall-mount slots line up with the two screws.
5. Place the wall-mount slots over the screws and slide the Phone Adapter down until the screws fit snugly into
the wall-mount slots.
Congratulations! The installation of the Phone Adapter is complete.

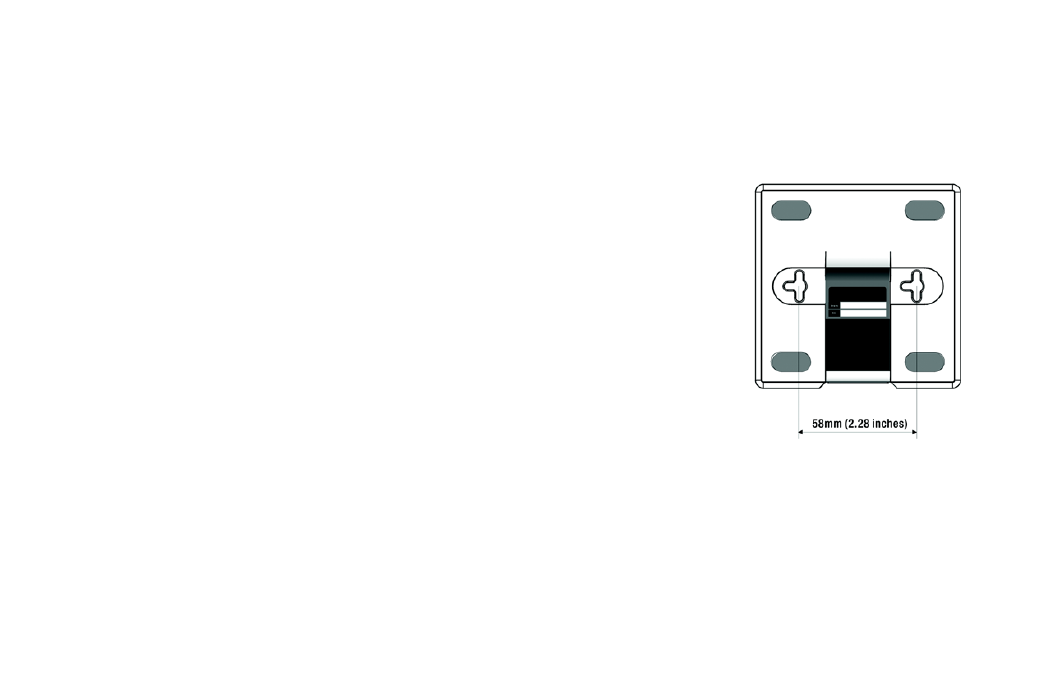

Figure 4-10: Measurement between
Wall-Mount Slots
