Chapter 4: Getting Started

Connecting the Phone Adapter

4. Connect one end of an Ethernet network cable (included) to the ETHERNET port of the Phone Adapter.

Connect the other end to the Ethernet port of your PC.

5. Connect one end of a different Ethernet network cable to the INTERNET port of the Phone Adapter. Connect

the other end to your cable/DSL modem.

6. Power on the broadband modem.

7. Connect the included power adapter to the Phone Adapter’s power port, and then plug the power adapter

into an electrical outlet. The power LED on the front panel will light up as soon as the Phone Adapter
powers on.

8. Power on your PC.

Proceed to the next section.

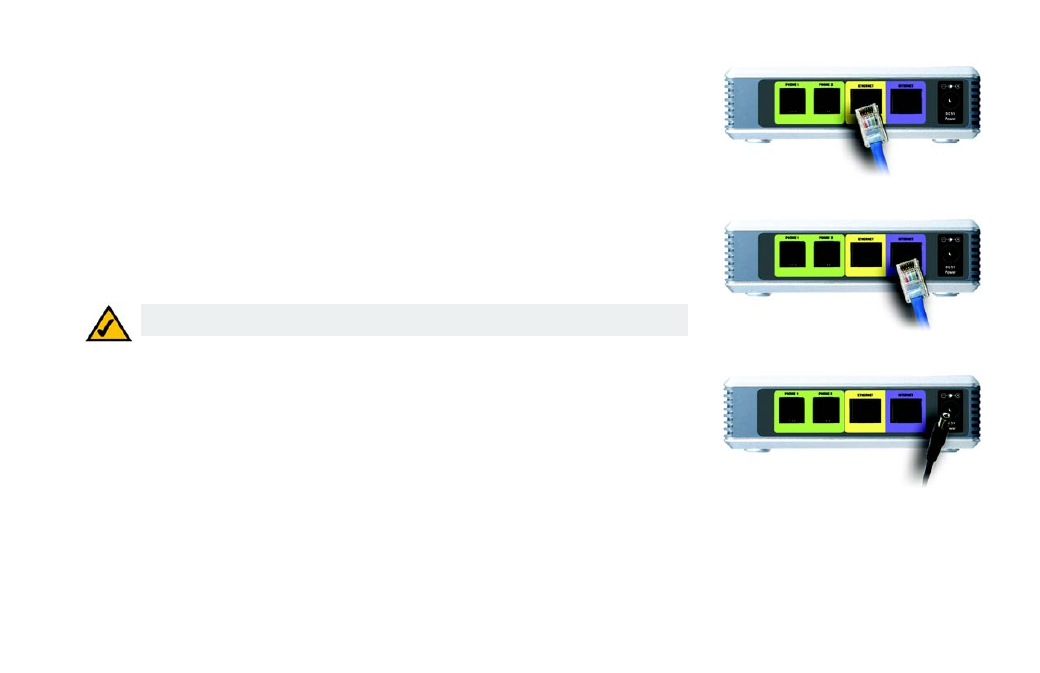

Figure 4-2: Connect a PC

Figure 4-3: Connect to the Modem

NOTE: Make sure your PC’s Ethernet adapter is set to obtain an IP address automatically. For
more information, refer to Windows Help.

Figure 4-4: Connect Power
