Chapter 3: Getting to Know the Phone Adapter
The Back Panel
Chapter 3: Getting to Know the Phone Adapter
The Back Panel
The Phone Adapter’s ports are located on the back panel.
PHONE 1/2
Use this port to connect an analog phone (or fax machine) with an RJ-11 telephone cable.
ETHERNET
The ETHERNET port connects to a network device, such as a PC or a switch, with an
Ethernet network cable.
INTERNET
The INTERNET port connects to your cable or DSL modem.
Power
The Power port is where you will connect the power adapter.

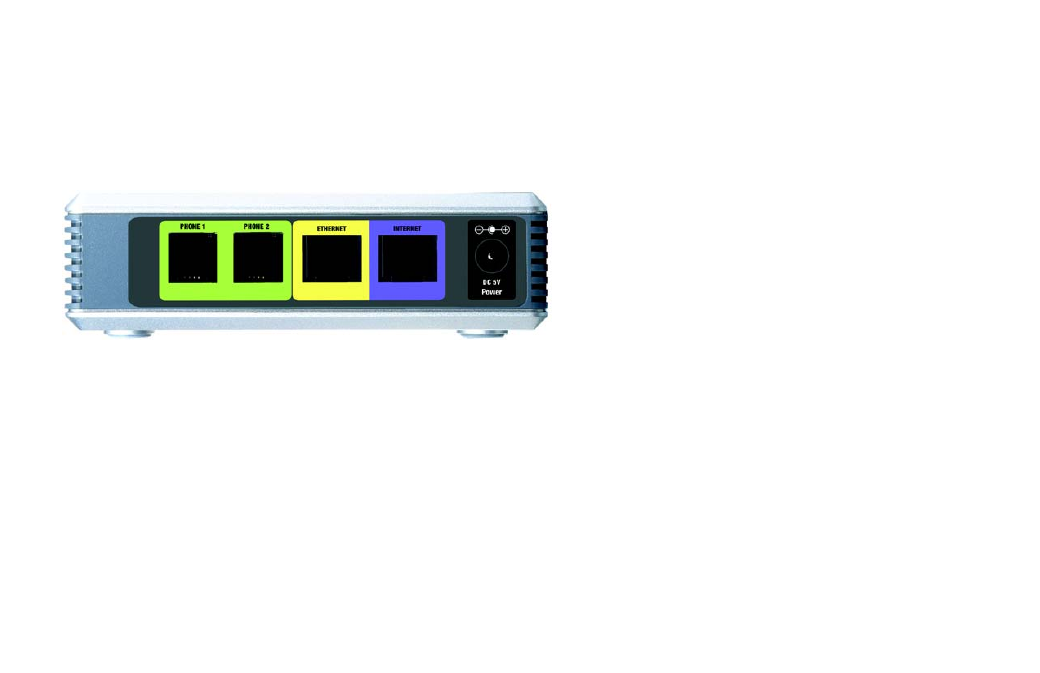

Figure 3-1: Back Panel
