LG General Wall Mounted-Inverter Type - Manual (Page 14)

14 Room Air Conditioner
Mode2
Mode3
Mode4
Mode5
Mode6
Mode7
Mode8
Mode9
OPEN
CLOSED
8 °
Cooling Operation
120 °
Mode2
Mode3
Mode4
Mode5
Mode6
Mode7
Mode8
Mode9
OPEN
CLOSED
8 °
Heating Operation
120 °
Mode1
Mode1
Mode2
Mode3
Mode4
Mode5
Mode6
Mode7
Mode8
OPEN
CLOSED
8 °
Cooling Operation
Mode1
Mode2
Mode3
Mode4
Mode5
Mode6
Mode7
Mode8
OPEN
CLOSED
8 °
Heating Operation
110 ° 110 °
Start
(S4, SE) 9,12kBtu/h Model
Start
Start
Start
(S5) 18, 24kBtu/h Model
(SD) 30kBtu/h Model
Mode 1
Mode 2
Mode 3
Mode 4
Mode 5
Mode 6
Mode 7
Mode 8
OPEN
CLOSED
8¡
Heating Operation
110¡
Start
Mode 7
Mode 1
Mode 2
Mode 3
Mode 4
Mode 5
Mode 6
Mode 8
OPEN
CLOSED
8¡
Cooling Operation
110¡
Start
Part 2 Functions & Controls
4.3 Air volume control
• Indoor fan motor control have 6 steps.
• Air volume is controlled "SH", "H", "Med", "Low" by the remote con-
troller.
• "LL" step is selected automatically in Hot start operation.

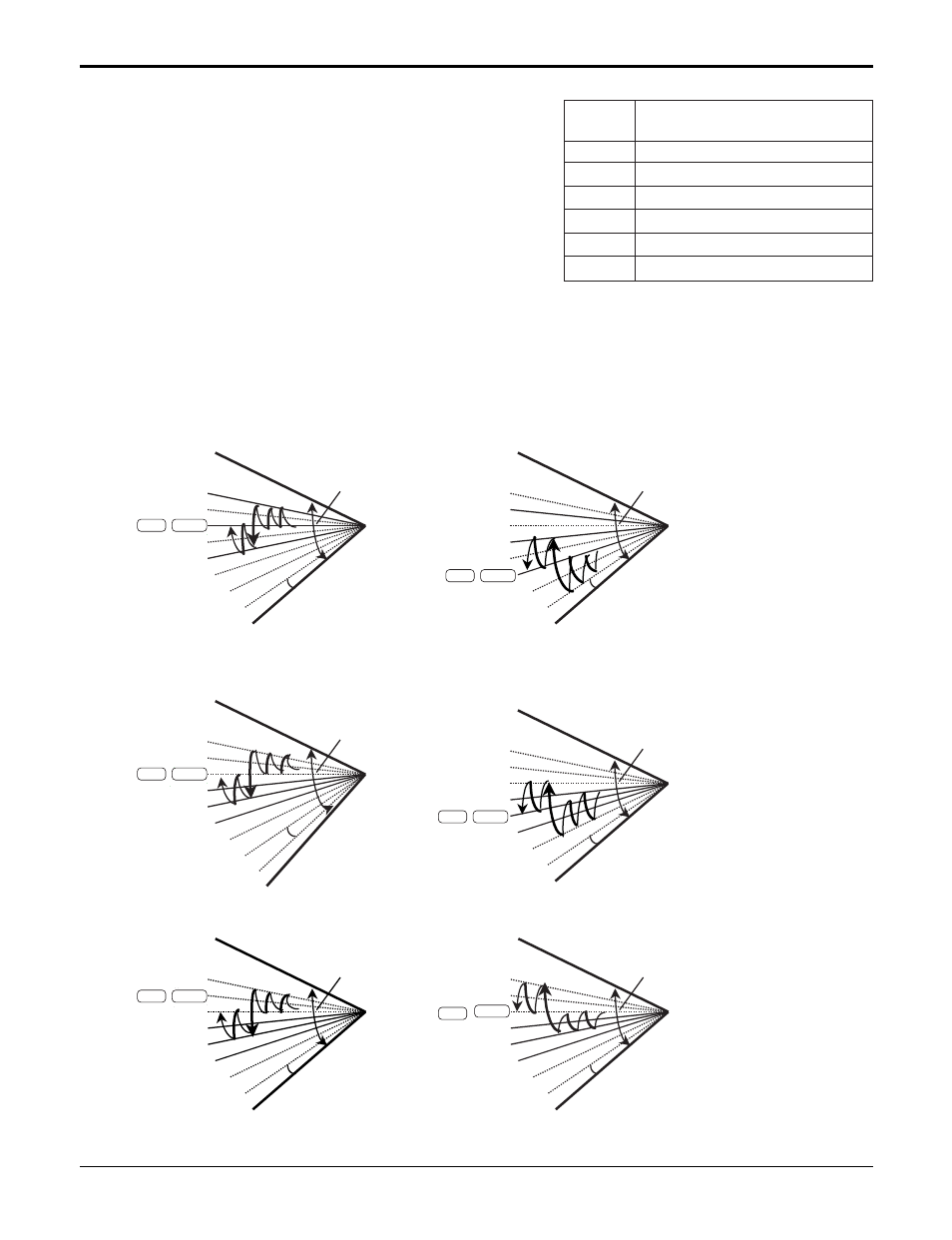

4.4 Natural Air Control(Auto Wind)
• When the Auto Step is selected and then operated, the high, medi-
um, or low speed of the airflow mode is operated for 2~15 sec. ran-
domly by the Chaos Simulation.
4.5 Chaos Swing
• By the Chaos swing key input, the upper/lower vane automatically operates with the Chaos swing or it is fixed to the
desired direction.
LL Very low, In heating mode
L Low
M Med
H High
SH Super high
Auto Natural wind
Step Description
NOTE: Some Models are different by swing width and swing pattern.
