5-16 Preliminary January 4, 2001 MAX 6000/3000 Network Configuration Guide
Configuring Frame Relay
Configuring a DLCI logical interface
Examples of a DLCI interface configuration
In the following example, the MAX has a connection to a Frame Relay switch that also
supports IP routing, as shown in Figure 5-7:

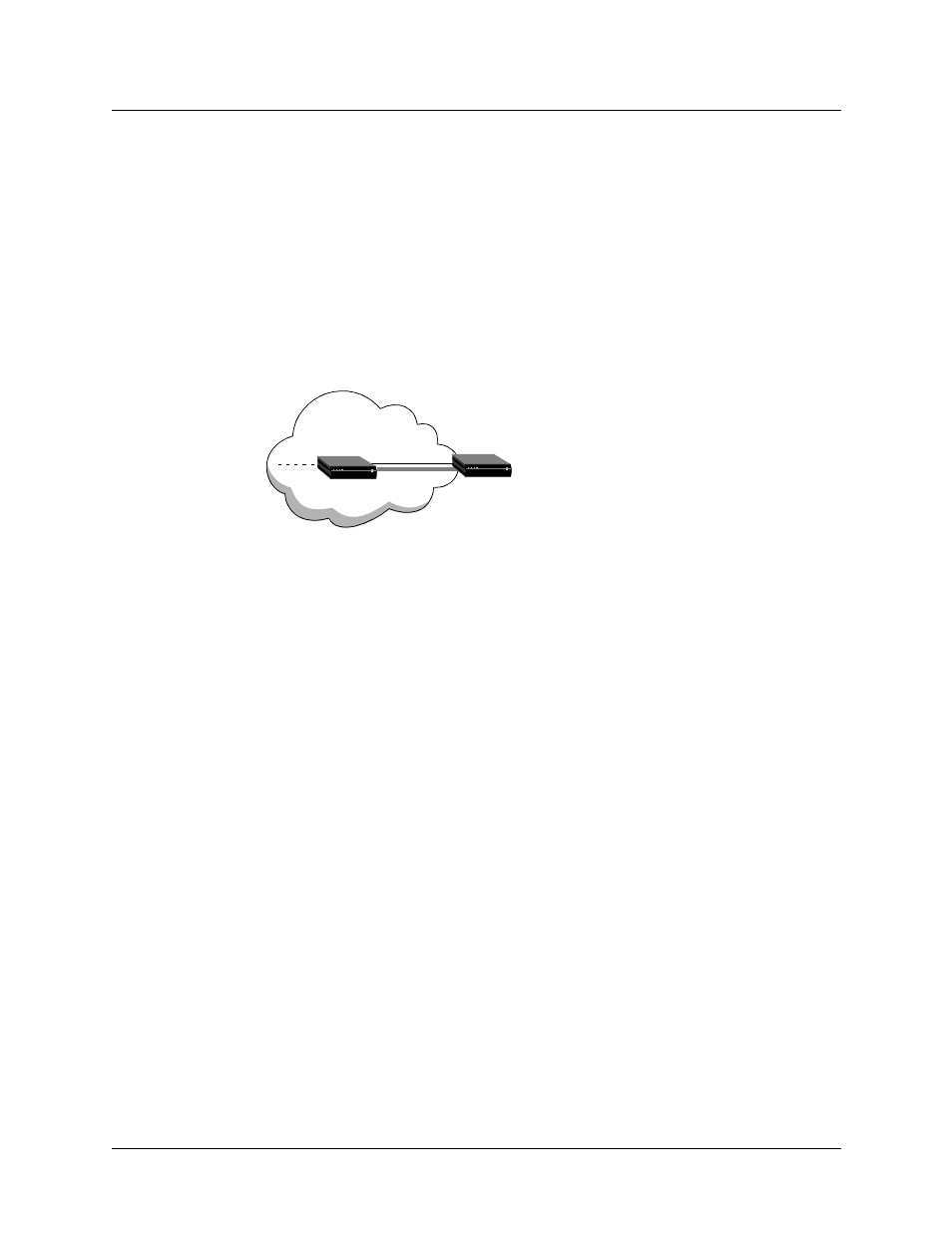

Figure 5-7. Frame Relay PVC
The following set of parameters configures the Connection profile, assigning DLCI 100:
Ethernet
Connections
Connection profile
Active=Yes
Encaps=FR
IP options
LAN Adrs=10.11.12.3/24
Encaps options
FR Prof=fr-dce
DLCI=100
Telco options
Call Type=Nailed
Following is a comparable RADIUS profile:
permconn-max-1 Password="ascend", User-Service=Dialout-Framed-User
User-Name="max-switch",
Framed-Protocol=FR,
Framed-Address=10.11.12.3,
Framed-Netmask=255.255.255.0,
Ascend-Route-IP=Route-IP-Yes,
Ascend-FR-DLCI=100,
Ascend-FR-Profile-Name="fr-dce"
Note: When IP routing is enabled, the MAX creates a route for this destination.
Administrators can choose to add static routes to other subnets or to enable RIP updates to or
from the router across Frame Relay. The usual considerations for IP routing connections apply
(see Chapter 9, “Configuring IP Routing.”)
Ascend-Backup (176) Name of a backup Connection profile to the next hop (optional).
See “Examples of backup interfaces for nailed Frame Relay links”
on page 5-17.
Attribute Value
Frame Relay
DLCI 100
10.11.12.3/24
