• Insert the two GUIDE RODS (15) into the base
of the TOWER (6) as shown in FIGURE 10.
Lubricate the GUIDE RODS (15) with a slicon
or teflon spray that is available at most hardware
stores.
STEP 10
• Slide two WEIGHT STACK CUSHIONS (37)
down over the GUIDE RODS (15). See FIG-
URE 10.
• Using EXTREME CARE slide twenty
WEIGHT PLATES (36) down over the GUIDE
RODS (15) with the key-hole facing as shown
in FIGURE 10.
• Securely assemble the WEIGHT STACK
SHAFT (33) to the HEAD PLATE (34) using
one 3/8 X 1-1/4” BOLT (20) and one 3/8”
WASHER (25). (Note: The bolt hole in the
HEAD PLATE (34) should be on top.)
• Carefully Slide the HEAD PLATE ASSEMBLY
(33 & 34) down over the GUIDE RODS (15)
onto the weight stack as shown in FIGURE 10.
9
• Apply one set of WEIGHT STACK LABELS -
LBS. OR 1-25 (40) (41) to each WEIGHT
PLATE (36) as shown in FIGURE 10..
• Slide two 13/16” SHAFT COLLARS (31) over
the GUIDE RODS (15) as shown in FIGURE
10.

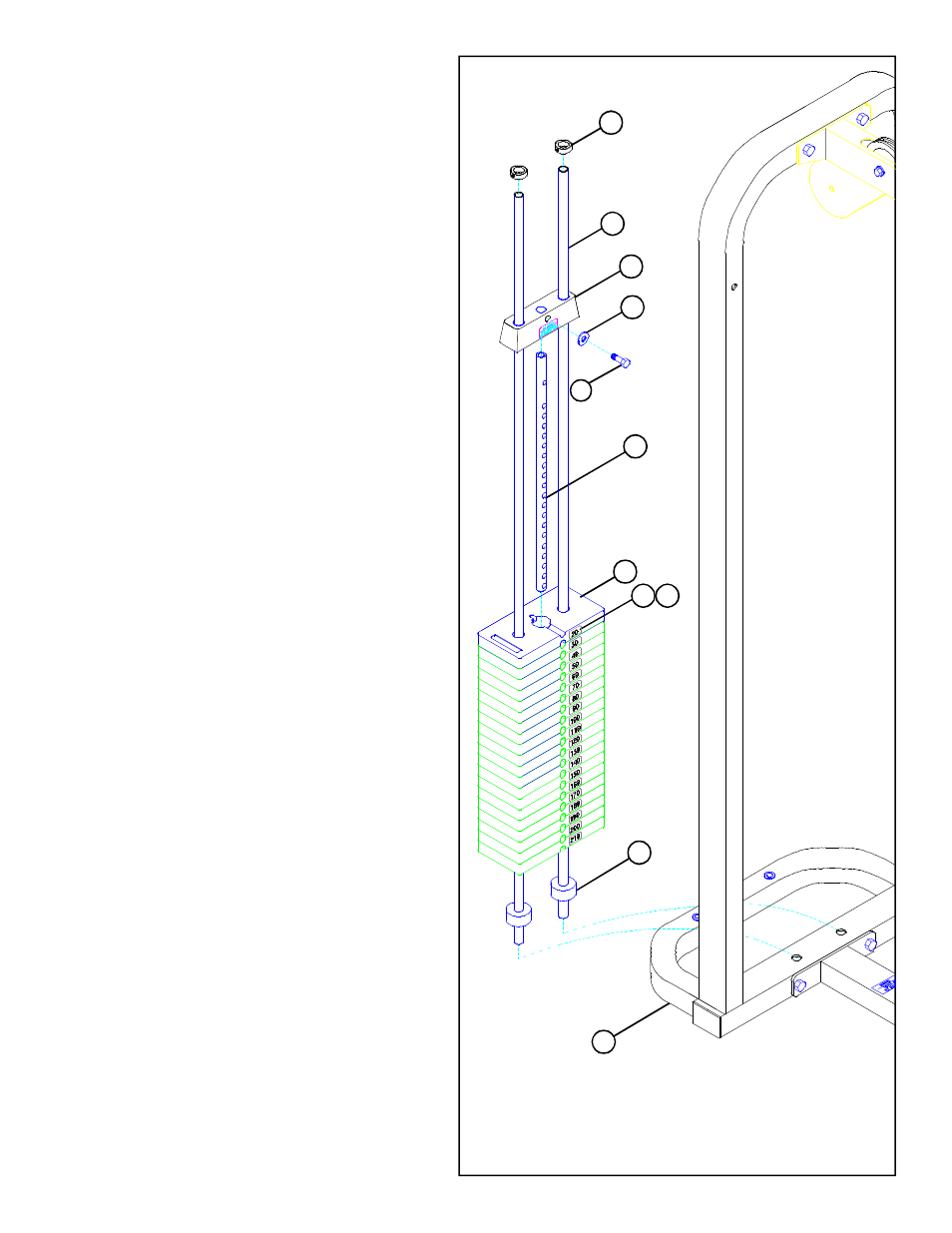

FIGURE 10
20 3/8 X 1-1/4”
6
37
41 40
36
33
25
34
15
31
