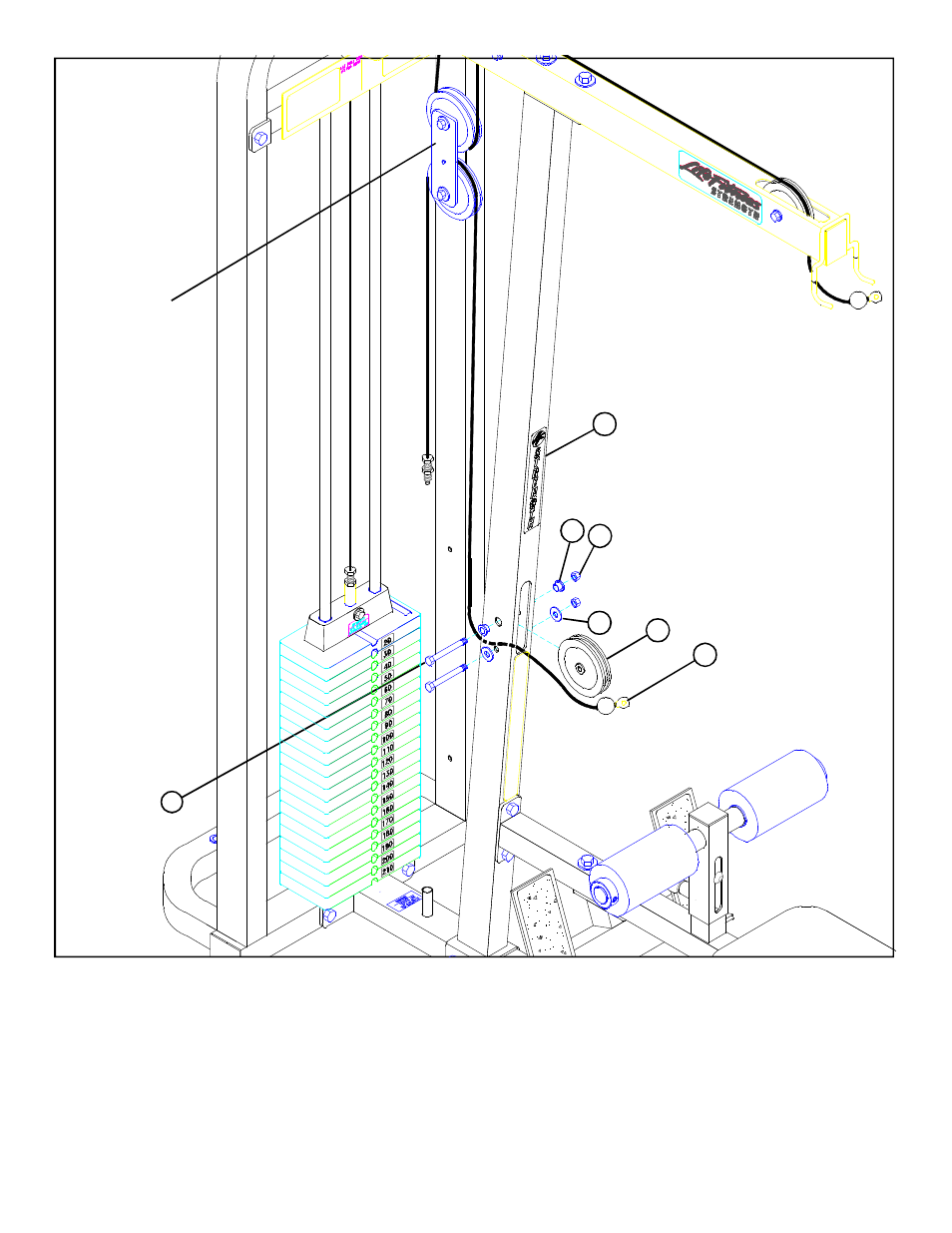

• Route the threaded end of the 112-3/4” LOW ROW CABLE (11) through the UPRIGHT (4) as shown,

then SECURELY assemble one 4-1/2” PULLEY (13) to the UPRIGHT (4) and over the top of the
cable using two 3/8 X 2-3/4” BOLTS (22), two 3/8” FLANGE SPACERS (28), two 3/8” WASHERS
(25), and two 3/8” LOCKNUTS (27). (NOTE: The LOW ROW CABLE (11) should be routed over
the retaining bolt as shown in FIGURE 16.)

STEP 16:

3/8 X 2-3/4” 22

11

4

28

• Route threaded end of the 112-3/4” LOW ROW CABLE (11) around the bottom pulley of the PULLEY

BLOCK ASSEMBLY as shown in FIGURE 16.

PULLEY

BLOCK

ASSEMBLY

25

13

27

FIGURE 16
