P A G E 7 206-4077
FMA-100 Installation Procedures
Purpose and Definition
Delivery of the channel lineup requires the installation and con-
figuration of an FTG Management Appliance (FMA-100). This
section contains steps to install and configure the FMA-100.
FMA-100 Connections

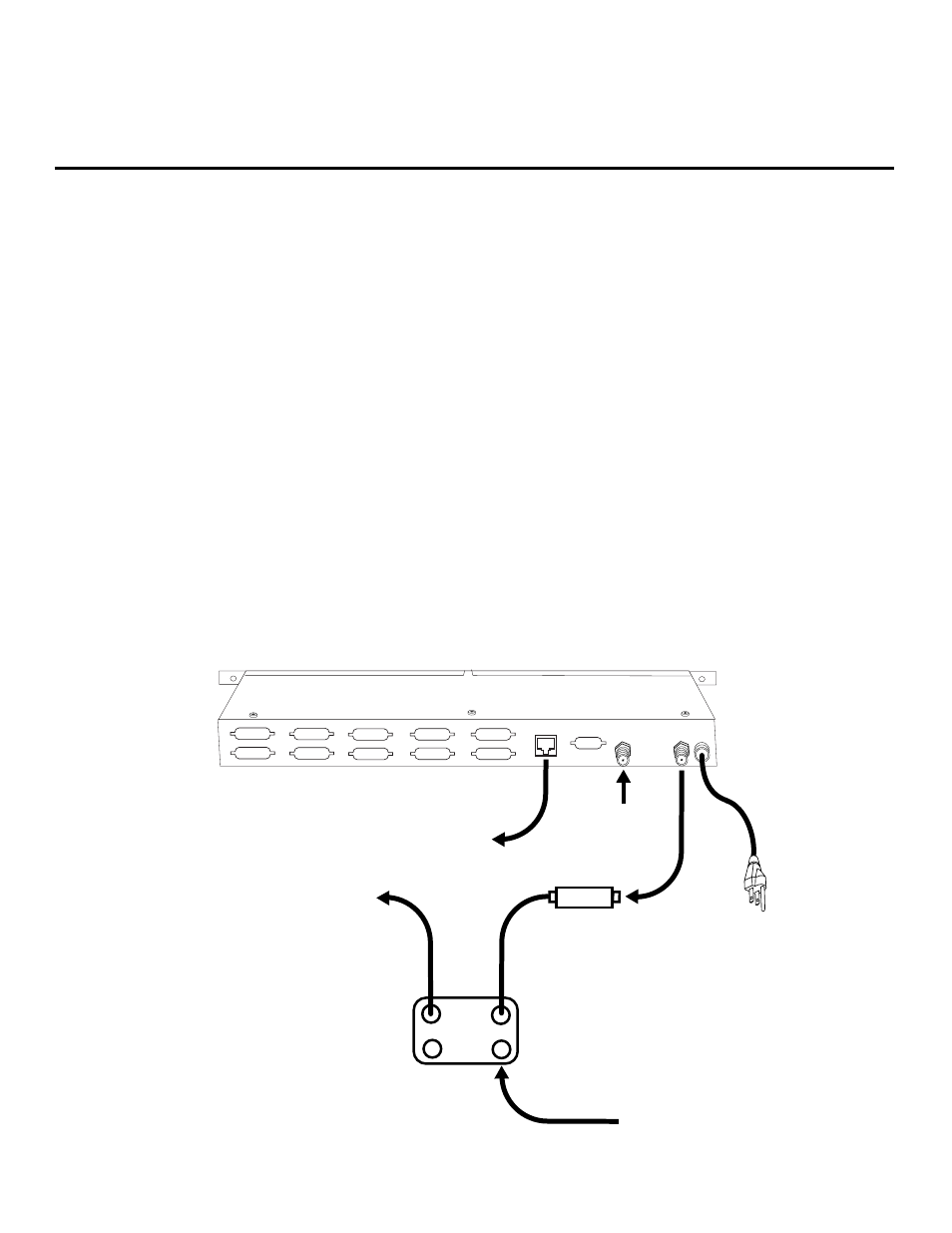

Refer to the FMA-100 diagram and connectivity table for con-
nections and port information.
FMA-100 Connectivity
Port Name Description
Ethernet Connects via Ethernet (crossover) cable to the
laptop or tablet for configuration purposes.
Connects via Ethernet (straight-through) cable
to the hotel’s network, if available.
RF Out Connects via coaxial cable to the combiner in
the FTG rack.
RF In Not Applicable
Serial Out Not Applicable
Kports 0-9 Not Applicable
Install the FMA-100 in an FTG Rack
Complete the following steps to install the FMA-100 in
the FTG rack.
1. Mount the FMA-100 in the FTG rack,
if applicable.
2. Plug the FMA-100 into the FTG rack’s power strip,
if applicable.
SERIAL OUT ETHERNET
RF OUT RF IN
FMA & FTG
Combiner
Free-To-Guest
75 ohm
Terminator
6MLP-50
Filter
To Hotel
Network
To Guest
Rooms
To AC
Power
