6 Chapter 3: Getting to Know the Wireless-G Access Point with SRX
The Front Panel
Wireless-G Access Point with SRX
Chapter 3: Getting to Know the Wireless-G Access Point
with SRX
The Front Panel
The Access Point's LEDs, which indicate activity and status information, are located on the front panel.
Ethernet Green. The Link LED lights up when the Access Point is successfully connected to a device
through the Ethernet network port. The LED flashes when the Access Point is transmitting or
receiving data through the Ethernet network port.
Wireless Green. The Act LED lights up when the Access Point is ready for wireless use. It flashes when
the Access Point is transmitting or receiving data wirelessly.
Power Green. The Power LED lights up when the Access Point is powered on.

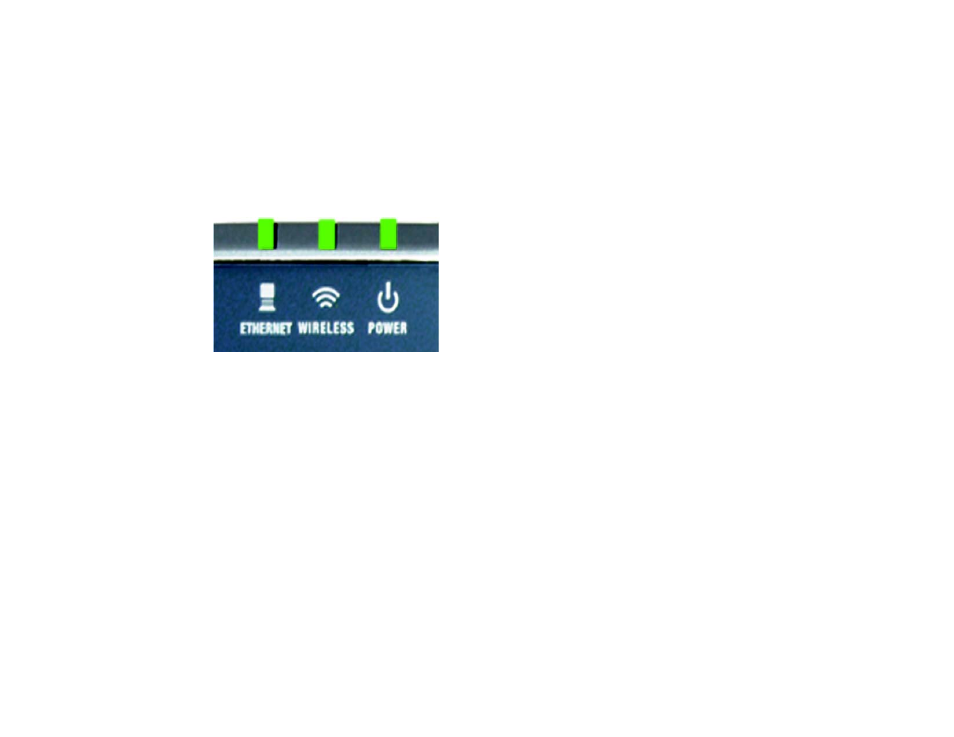

Figure 3-1: Front Panel
