8
• SECURELY assemble three 3-1/2” PULLEYS (10) to the TOP BOOM (2) using three 3/8 X 2-3/4” BOLTS (17), six 3/8”
FLANGE SPACERS (22), and three 3/8” LOCK NUTS (21). See FIGURE 5. (NOTE: BEFORE TIGHTENING, MAKE SURE
CABLE (11) IS IN THE GROOVES OF THE PULLEYS.)
STEP 5:
• Insert one 2 X 3” END CAP (27) into the TOP BOOM (2) as shown in FIGURE 5.
• Route threaded end of the LAT CABLE (11) through the TOP BOOM (2) as shown in FIGURE 5.

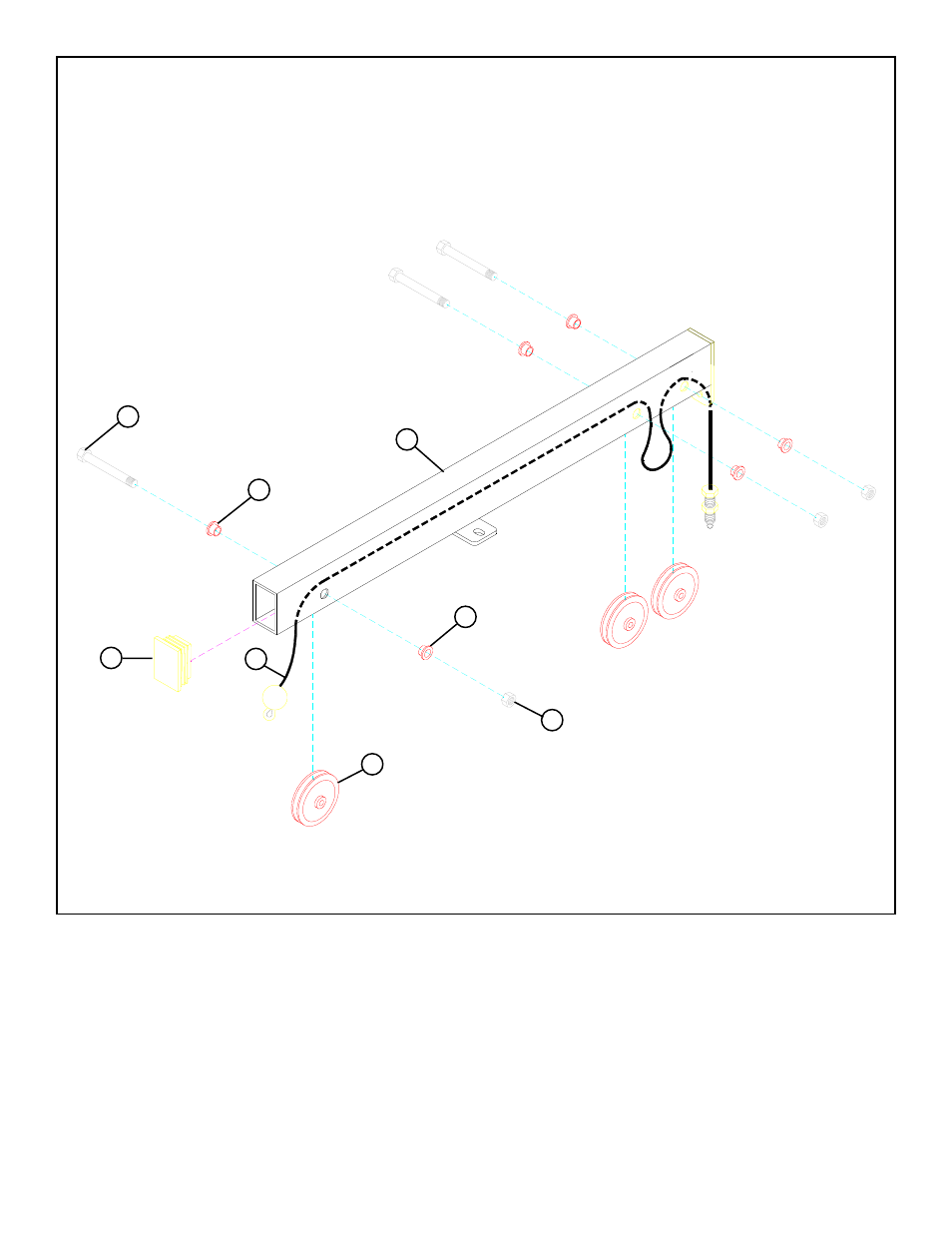

FIGURE 5
22
17 3/8 X 2-3/4
11
21
10
22
27
2
