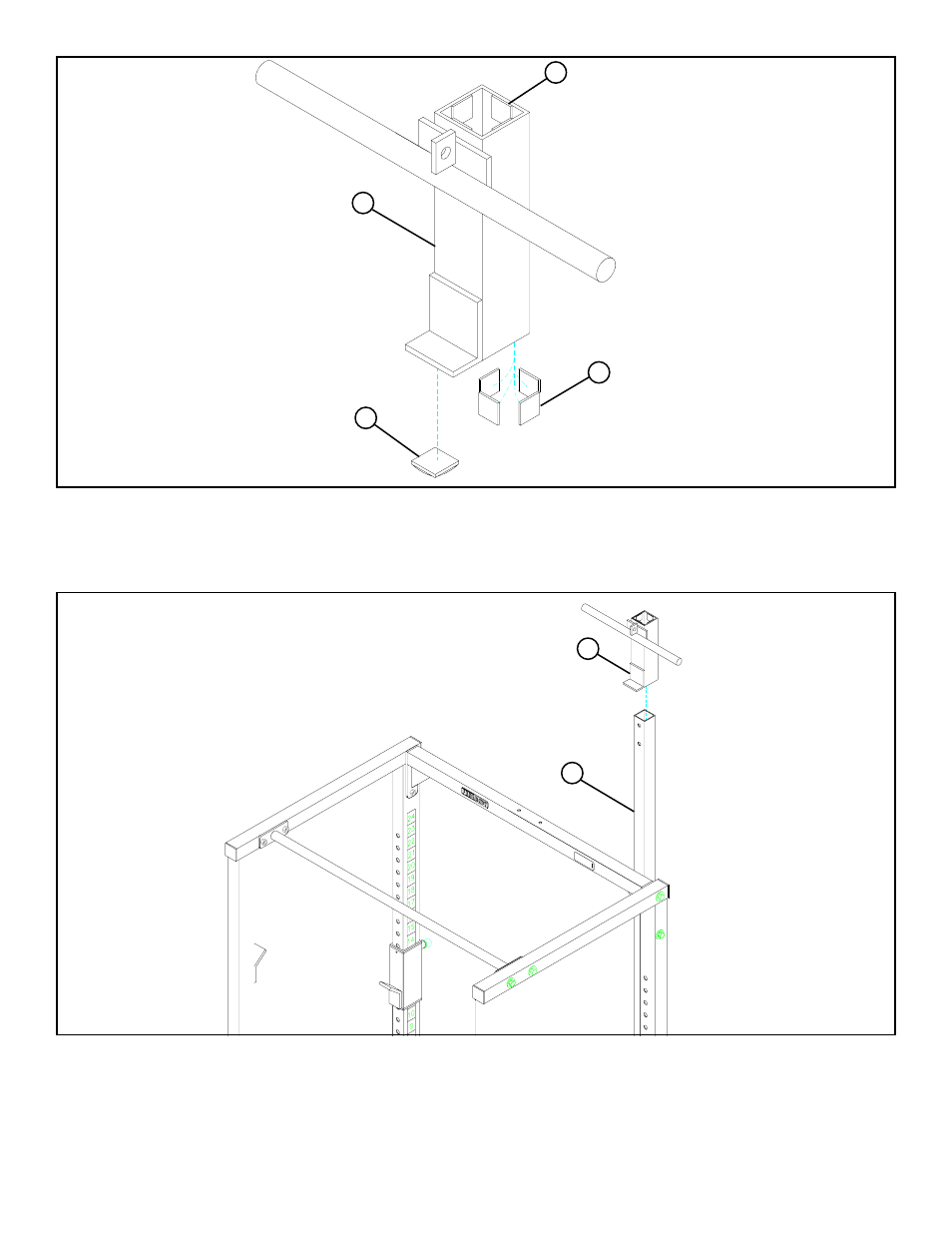

STEP 4:
FIGURE 4
• CAREFULLY slide the CARRIAGE (7) over the UPRIGHT (1) as shown in FIGURE 4.
7
1
FIGURE 3
STEP 3:
• Apply eight 1” SQ. GLIDES (31) to the inside of the CARRIAGE (7) as shown in FIGURE 3.
• Attach one 1-1/4” SQ. RUBBER BUMPER (30) to the bottom of the CARRIAGE (7) as shown in FIGURE 3.
31
30
31
7
