5

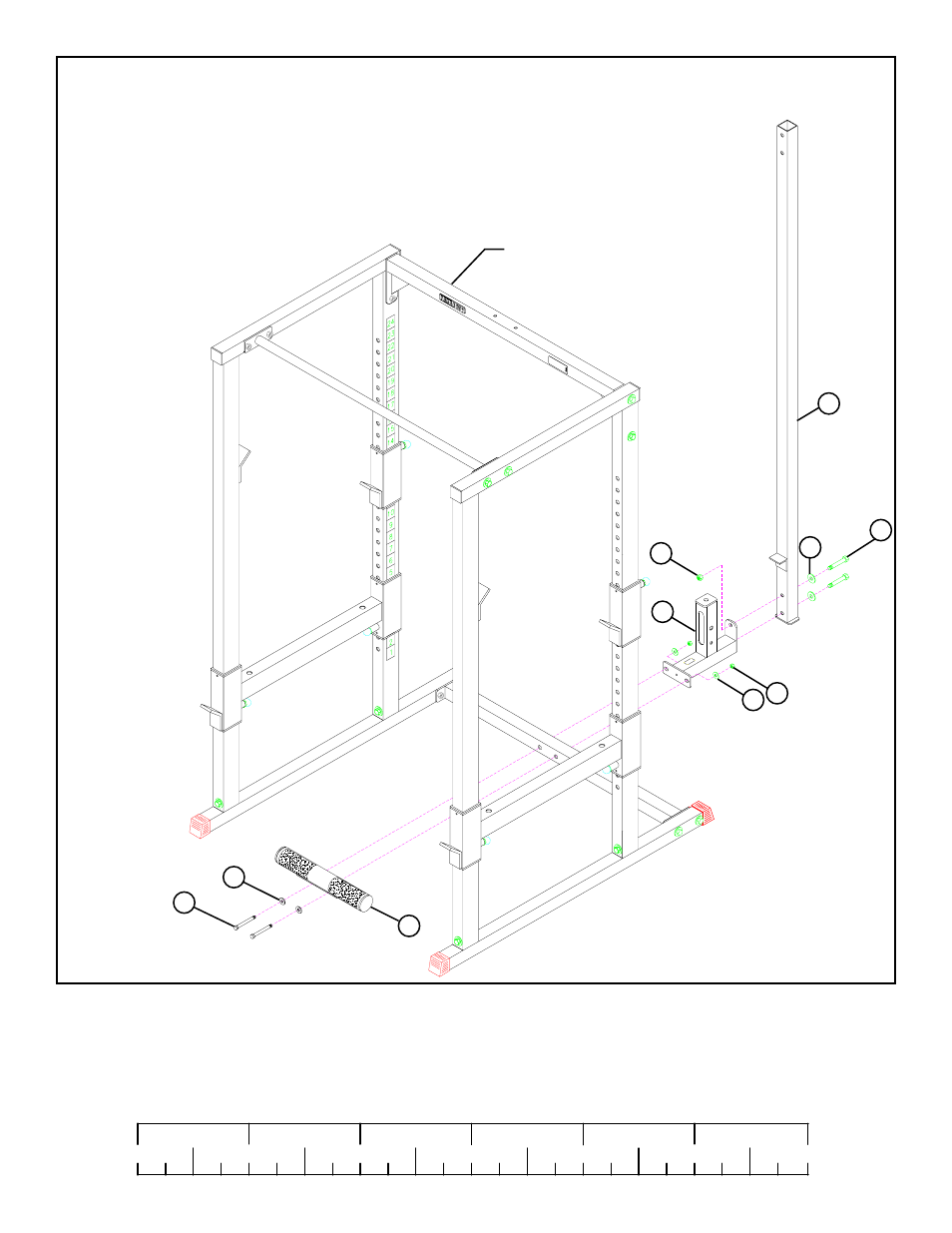

FIGURE 2
STEP 2:
• SECURELY assemble the UPRIGHT (1) to the LOW PULLEY HOUSING (8) using two 1/2 X 3” BOLTS (24), two 1/2” WASH-
ERS (25), and one 1/2” LOCK NUTS (26). See FIGURE 2.
0 1 2 3 4 5 6
1/2 1/2 1/2 1/2 1/2 1/2
1
5
20
21
POWER RACK
3/8 X 3-1/4” 19
20
26
1/2 X 3” 24
25
8
• Assemble the LOW ROW ATTACHMENT (5) and the LOW PULLEY HOUSING (8) to the POWER RACK using two
3/8 X 3-1/4” BOLTS (19), four 3/8” WASHERS (20), and two 3/8” LOCK NUTS (21). See FIGURE 2.
