User Manual

English

3














































11. Place the hard drive into the drive tray and

connect the Molex power and IDE data
cables

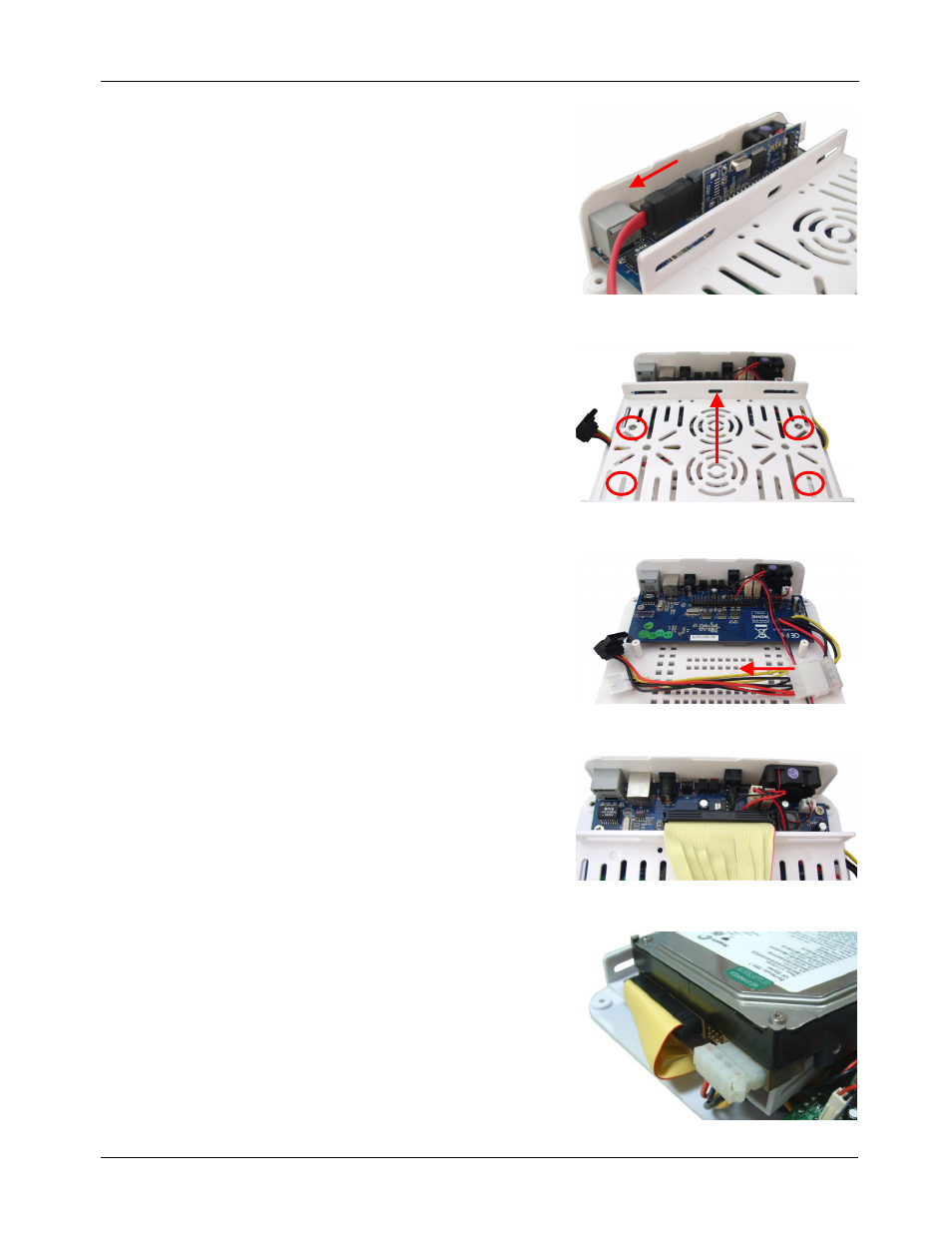

7. Disconnect the SATA Data cable from

the bridgeboard. Hold the base of the
drive enclosure and pull the bridgeboard
up to disconnect it.

8. Unscrew the four screws holding the

drive tray in place and remove the drive
tray.


9. Disconnect the Molex to SATA cable and

then replace the drive tray and insert the
screws.

10. Attach the provided IDE ribbon cable and

to the main board, in place of the bridge
board.
